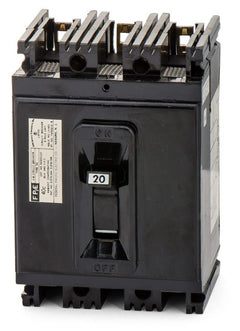

Schneider Electric / Federal Pioneer NB232020FED NB320 - 20A 3 Pole Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Schneider Electric / Federal Pioneer
NB232020FED
NB320 - 20A 3 Pole Molded Case Circuit Breaker
Brand
Schneider Electric / Federal Pioneer
SKU
NB232020FED
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric / Federal Pioneer NB320 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity

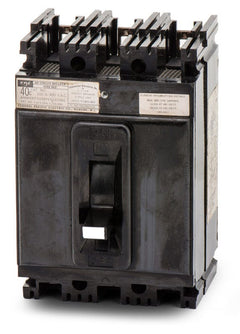

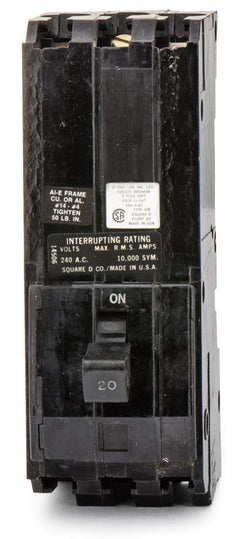

Similar Items
ABB / General ElectricTHED136020
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Maintaining older commercial power systems is straightforward with this 20A three-pole molded case circuit breaker. Engineered to replace the hard-to-find NB320, it provides an exact mechanical and electrical match for existing setups. The unit bolts firmly into legacy Federal Pioneer NB panelboards without requiring aftermarket modifications. Featuring a standard 10kAIC rating at 240VAC, this HACR-certified device delivers dependable long-time and instantaneous trip functions.Specifications
| Brand | Schneider Electric / Federal Pioneer |
|---|---|
| Part Number | NB232020FED |
| Series | NB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | NB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pioneer NB Panelboards |
| Wire Gauge | 14-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Accessories | Load Side Lugs Included |
|---|---|
| Standards | CSA C22.2 No. 5 |
| Approval | CSA |
| Temp Rating | 40C |
| Construction Features | 40C Ambient Calibration |
Product FAQs
5 answersWhich panelboards are compatible with the NB232020FED circuit breaker?
This bolt-on circuit breaker is designed for installation in Federal Pioneer and Schneider Electric NB series panelboards, including NBC, NBLP, and NBDP distribution panels.
How does the NB232020FED breaker connect to the panel busbar?
It utilizes a bolt-on mounting configuration. This requires physically bolting the breaker to the panelboard bus, ensuring a highly secure electrical and mechanical connection for commercial and industrial applications.
What wire gauge range is supported by the terminals on this 20A breaker?
The terminal lugs are rated to accept either aluminum or copper wire ranging from 14 AWG to 2 AWG.
Are Federal Pioneer and Schneider Electric NB breakers interchangeable?
Yes. Schneider Electric is the parent company of Federal Pioneer. NB series breakers manufactured under either brand name are direct replacements for each other in compatible Stab-Lok bolt-on panelboards.
How does the thermal-magnetic trip unit function on the NB232020FED?
The LI (Long-Time, Instantaneous) trip unit provides dual protection. The thermal component reacts to sustained overloads by heating a bimetallic strip, while the magnetic component trips the breaker instantaneously in the event of a short circuit.
