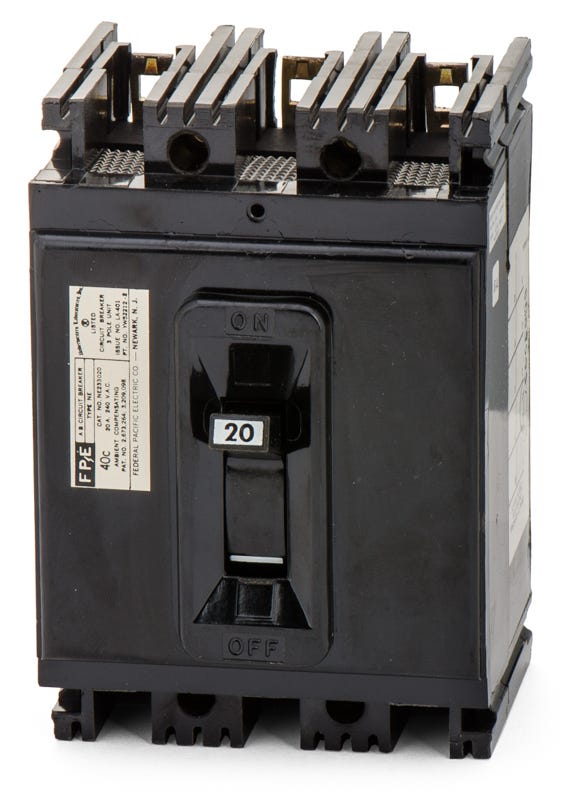

Federal Pacific NE233020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Federal Pacific
NE233020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE233020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NE233020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NE233020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233020 |
| Series | NE |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Quantity
Federal Pacific NE233020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233020-R |
| Series | NE |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Similar Items
30A 3 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Restoring older commercial electrical systems requires exact-fit components like the NE233020 molded case circuit breaker. This 3-pole, 20-amp unit provides reliable thermal-magnetic protection for demanding industrial and commercial environments. It mounts into Federal Pacific NE panelboards, serving as an exact replacement that requires no mounting adapters. Featuring an 18kAIC rating at 240VAC and HACR certification, this N-frame breaker ensures code-compliant overcurrent safety.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233020 |
| Series | NE |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersDoes the NE233020 require a retrofit kit to fit my panel?
No. This breaker is an exact-fit replacement designed specifically for legacy Federal Pacific NE panelboards. It utilizes a standard bolt-on connection that mounts directly to the panel bus without requiring any mounting adapters or modifications.
Can I install this breaker in a residential Federal Pacific load center?
No. The NE233020 is a commercial N-Frame molded case circuit breaker with a bolt-on mounting style. It is not compatible with residential FPE Stab-Lok load centers, which require plug-on Stab-Lok breakers.
Is the NE233020 a direct replacement for older Federal Pacific installations?
Yes, it serves as a drop-in replacement for aging commercial and industrial Federal Pacific systems. It restores reliable power distribution in NE panelboards without requiring any panel modifications.
Does this breaker include load-side lugs?
Yes, the NE233020 comes equipped with standard load-side lugs. The terminals are designed to accept wire gauges ranging from 14 AWG to 2 AWG.
What type of protection does the NE233020 trip unit provide?
It features a fixed thermal-magnetic trip unit that delivers standard LI (Long-Time and Instantaneous) protection. The thermal component responds to sustained overloads, while the magnetic component trips instantaneously during short-circuit events.
Are Federal Pacific NE series breakers affected by the Stab-Lok safety recalls?
The widespread safety concerns and high failure rates associated with Federal Pacific Electric are specific to their residential Stab-Lok breaker line. The NE233020 is a commercial-grade, bolt-on molded case circuit breaker built to a different standard. However, all aging legacy panels should be routinely evaluated by a licensed electrician.
