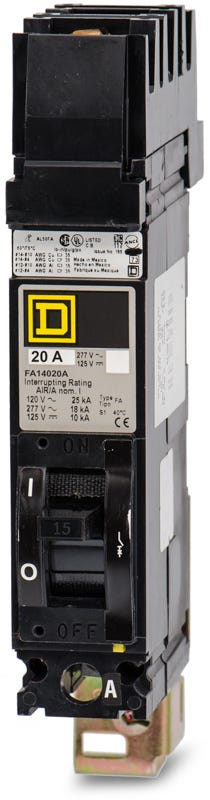

Square D FA14020A Molded Case Circuit Breaker
- 20A
- 1 Pole
- I-Line
Square D
FA14020A
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14020A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA14020A - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 1 Pole Molded Case Circuit Breaker
20A 2 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
The FA14020A is a 1-pole, 20A molded case circuit breaker from Square D. Built for commercial use, this legacy F-Frame unit delivers reliable overcurrent protection. Designed for Square D I-Line panelboards, it utilizes a plug-on mounting style for efficient setup. This model is officially replaced by the BDA140201 for modern upgrades. Rated at 18 kAIC at 277VAC, it features fixed thermal-magnetic trip functions, a Visi-Trip indicator, and a factory-configured Phase A connection.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14020A |
| Series | FA |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs (AL50FA) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
7 answersWhat does the "A" suffix in the FA14020A catalog number indicate?
The "A" suffix designates that this 1-pole breaker is factory-configured for an A-phase connection on the I-Line bus. It will only engage with the A-phase stab in the panelboard.
What is the direct modern replacement for the legacy FA14020A?
Square D has transitioned the legacy F-Frame series to the PowerPact B-Frame. The direct replacement for this unit is the BDA140201, which maintains the 20A rating, 18kAIC at 277V, and A-phase I-Line connection.
Can the FA14020A be installed in standard NQ or NF panelboards?
No. This breaker requires an I-Line style plug-in connection and is exclusively compatible with Square D I-Line panelboards and switchboards. It will not fit in NQ, NF, QO, or Homeline load centers.
How does the FA14020A connect to the panelboard bus?
This breaker features an I-Line style plug-on connection. The line-side jaws plug directly onto the I-Line bus stack, while the breaker body is secured to the panelboard mounting rail, eliminating the need for separate mounting hardware or cable connections to the bus.
Does the FA14020A include a push-to-trip feature?
Yes, this breaker is equipped with a push-to-trip button. This allows electricians to manually trip the breaker to verify the mechanical operation of the tripping mechanism during routine maintenance.
Is the FA14020A suitable for use with heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated, making it approved for use with multi-motor and combination-load HVAC and refrigeration equipment.
Is the FA14020A rated for 100% continuous operation?
No, this is a standard-rated breaker. Per the National Electrical Code (NEC), continuous loads should not exceed 80% of its 20A rating (16 amps).
