Square D FAP36020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Square D
FAP36020
Molded Case Circuit Breaker
Brand
Square D
SKU
FAP36020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

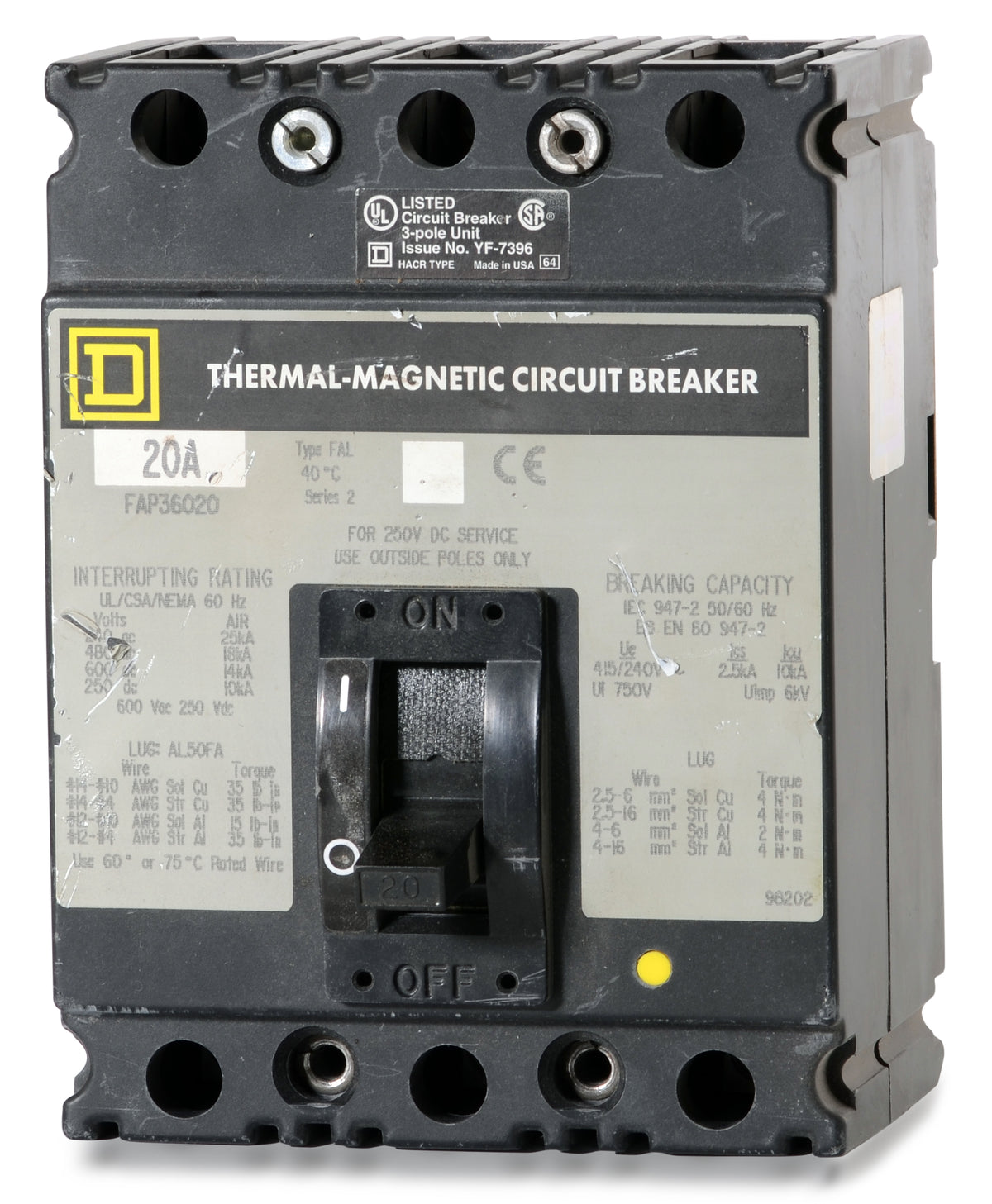

Square D FAP36020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
The FAP36020 is a 3-pole, 20-amp molded case circuit breaker from Square D's legacy F-frame family. Engineered for commercial and industrial applications, it provides dependable long-time and instantaneous (LI) trip functions. This bolt-on unit mounts into Square D motor control centers and compatible panelboards. Rated for 18 kAIC at 480VAC and 14 kAIC at 600VAC, it features a Visi-Trip indicator for quick fault identification. It is replaced by the newer HJP36020 model.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAP36020_ |
| Series | FAP |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FAP_ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersWhat equipment is compatible with the FAP36020 circuit breaker?
The FAP36020 is a legacy F-frame molded case circuit breaker designed for use in Square D motor control centers and industrial panelboards. It utilizes a bolt-on connection and cannot be installed in standard residential QO or Homeline load centers.
Can the FAP36020 be used in direct current applications?
Yes, this thermal-magnetic breaker is suitable for DC applications. It carries a dedicated 250VDC rating, making it viable for specific industrial control circuits or battery systems.
What type of wire can be used with the FAP36020 lugs?
The factory-installed lugs accept both copper and aluminum conductors ranging from 14 AWG to 4 AWG. Ensure proper torque specifications are followed during installation to prevent terminal overheating.
Can the FAP36020 be reverse fed?
Yes, standard Square D F-frame breakers do not feature directional Line and Load markings. This allows them to be reverse fed safely when permitted by local NEC requirements.
Is the Square D FAP36020 still manufactured?
No, the FAP36020 is a legacy F-frame breaker that has been officially discontinued by Schneider Electric. It is primarily sourced to maintain or expand existing legacy panelboards without requiring a complete system upgrade.
