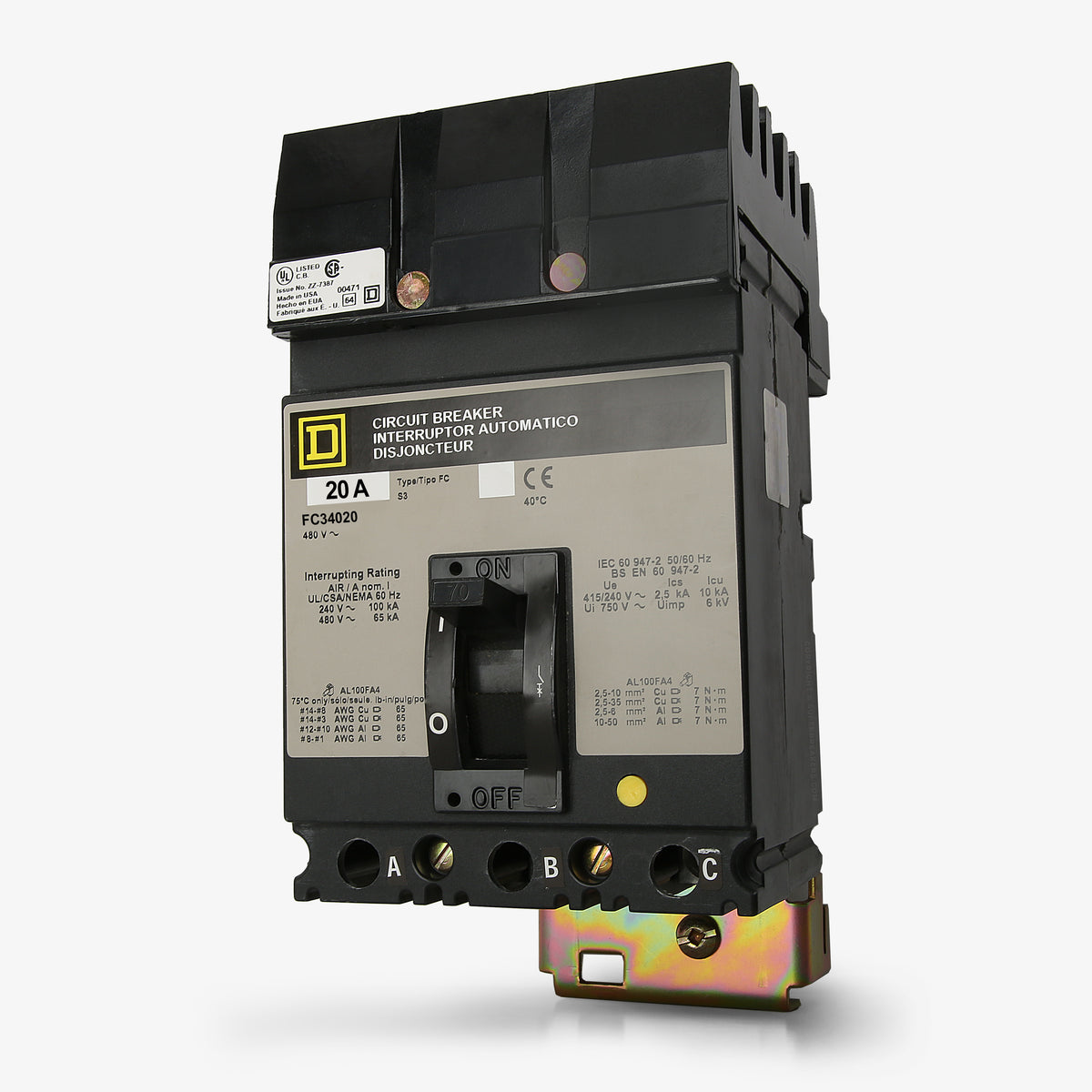

Square D FC34020 Molded Case Circuit Breaker
- 20A
- 3 Pole
- I-Line
Square D
FC34020
Molded Case Circuit Breaker
Brand
Square D
SKU
FC34020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FC34020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FC34020 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34020 |
| Series | FC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Quantity
Square D FC34020 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FC34020-R |
| Series | FC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Similar Items
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, the FC34020 is a 3-pole, 20A molded case circuit breaker from Square D. It utilizes fixed thermal and magnetic trip elements to provide dependable long-time and instantaneous protection. Designed for quick installation, this breaker mounts into Square D I-Line panelboards. For modern upgrades, it is replaced by the HJA36020 model. This HACR-rated breaker features an extra-high 65kAIC rating at 480VAC and includes a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FC34020 |
| Series | FC |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Extra High Interrupting Capacity |
Product FAQs
6 answersWhat type of panelboards does the FC34020 fit?
This breaker is designed specifically for Square D I-Line panelboards and switchboards. It will not fit standard load centers like QO or Homeline, nor will it mount in standard bolt-on NQ or NF panelboards.
What is the difference between Square D FA34020, FH34020, and FC34020 breakers?
All three are 20-amp, 3-pole F-frame breakers but they differ in short circuit interrupting ratings. The FA is standard capacity, the FH is high capacity, and the FC features an extra-high interrupting capacity of 65kA at 480VAC.
How is the FC34020 connected inside the panel?

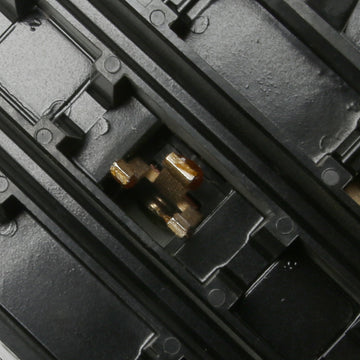

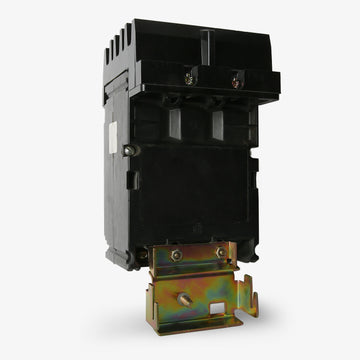

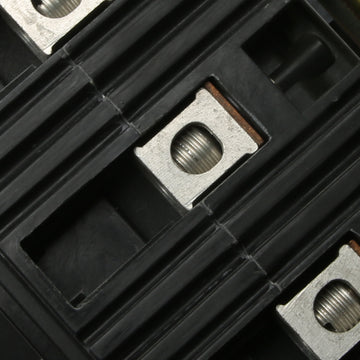

It utilizes an I-Line style plug-in connection. The line side features a jaw mechanism that pushes directly onto the panelboard busbar without internal hardware. The load side connects to field wiring via standard mechanical lugs accepting 14 to 4 AWG copper or aluminum wire.
Is the FC34020 suitable for direct current (DC) circuits?
Yes. In addition to alternating current applications up to 480VAC, this thermal-magnetic breaker is rated for use on 250VDC systems with a 10kA DC interrupting capacity.
Has the FC34020 been replaced by a newer series?
The legacy Square D F-frame series has been superseded by the modern PowerPact H-frame series. While PowerPact is standard for new build installations, the FC34020 remains a direct drop-in replacement for existing F-frame I-Line spaces without requiring busbar modifications or adapters.
What type of trip mechanism does the FC34020 use?
It utilizes a thermal-magnetic trip unit that provides fixed thermal (long-time overload) and fixed magnetic (instantaneous short-circuit) protection. It does not feature electronic trip adjustments.
