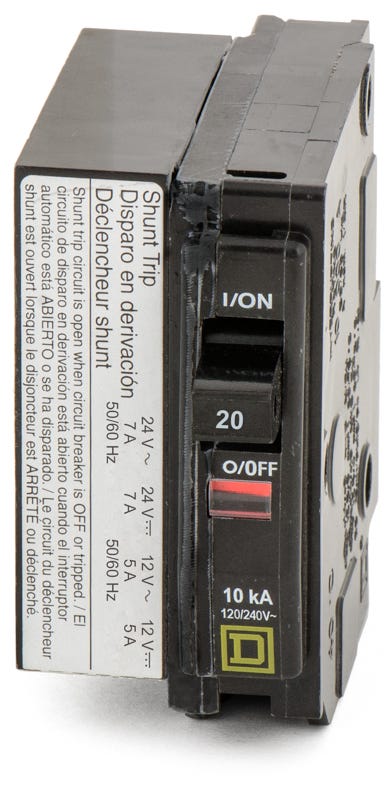

Square D QO1201042 Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Square D
QO1201042
Miniature Circuit Breaker
Brand
Square D
SKU
QO1201042
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO1201042 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Miniature Circuit Breaker
QO2201021 - 20A 2 Pole Miniature Circuit Breaker
QO3201021 - 20A 3 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the Square D QO1201042 is a 20A, single-pole miniature circuit breaker. It provides standard thermal-magnetic protection for 120/240VAC systems. This plug-on breaker installs into Square D QO load centers and NQ panelboards. It accepts 14-8 AWG copper or aluminum wiring. A factory-installed 12-24V AC/DC shunt trip allows for remote tripping of the circuit. It also includes the signature Visi-Trip indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO1201042 |
| Series | QO |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (12-24V AC/DC) |
| Standards | CSA C22.2 No. 5, UL 489, HACR Rated |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the 1042 suffix mean on the QO1201042 circuit breaker?
The 1042 suffix indicates the breaker is equipped with a factory-installed shunt trip. This allows the circuit to be opened remotely when a 12V to 24V AC or DC control voltage signal is applied.
Which panelboards and load centers accept the QO1201042 breaker?
This plug-on miniature circuit breaker is compatible with Square D QO load centers and NQ panelboards.
What wire gauge and material can be used with the QO1201042?
The pressure plate terminals are rated for 14 AWG to 8 AWG wire and accept both copper and aluminum conductors.
How can I easily identify if the QO1201042 has tripped?
This breaker features the Square D Visi-Trip indicator, which displays a highly visible red flag when the breaker has tripped due to an overcurrent or shunt trip activation.
How is the QO1201042 installed into the panel?
It features a standard plug-on mounting style, allowing it to snap directly onto the busbar of compatible QO load centers and NQ panelboards without bolting.
What trip functions are included in the QO1201042 thermal-magnetic mechanism?
The fixed thermal-magnetic trip unit provides long-time protection against sustained overloads and instantaneous protection against short circuits.
