Square D QO320-1021 QO3201021 - 20A 3 Pole Miniature Circuit Breaker
- 20A
- 3 Pole
- Plug-On
Square D
QO320-1021
QO3201021 - 20A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO320-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO3201021 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QO3601021 - 60A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
Description

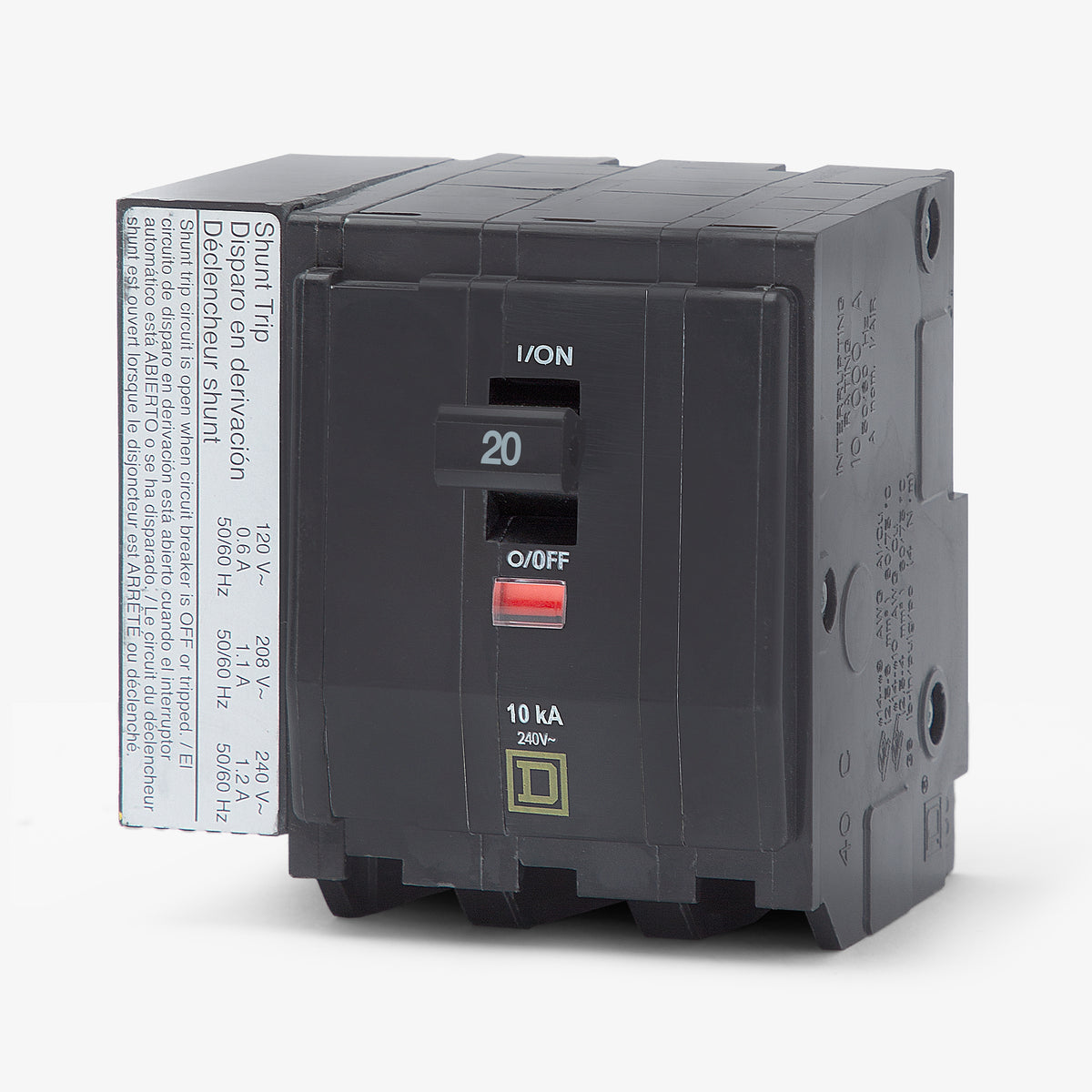

Built for advanced control applications, the QO320-1021 combines standard thermal-magnetic protection with remote tripping capabilities. This 3-pole, 20A miniature breaker is ideal for environments requiring automated circuit disconnection. The device installs into Square D QO load centers and NQ panelboards. Because of the factory-installed shunt trip module, the complete assembly requires four pole spaces for proper mounting. Delivering a 10 kAIC rating, the unit features the Visi-Trip flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO3201021 |
| Series | QO |
| Amperage | 20A |
| Poles | 3 |

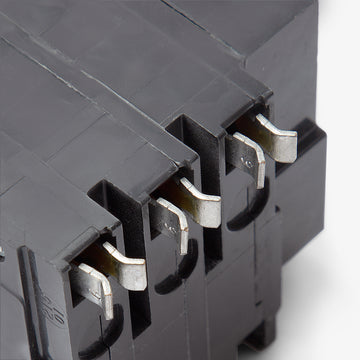

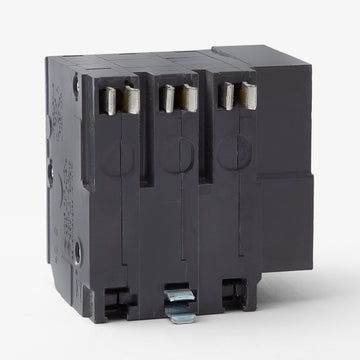

| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|

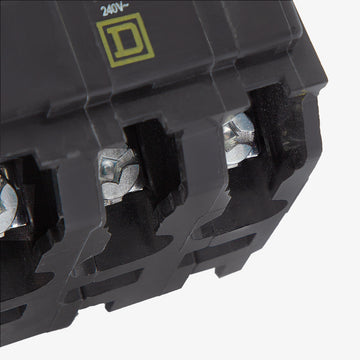

| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, UL 489, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersWhat does the -1021 suffix indicate on the QO320-1021 part number?
The -1021 suffix designates a factory-installed 120/208/240 VAC shunt trip module. This allows the breaker to be tripped remotely via an external control signal, such as a fire alarm panel or emergency stop button.
How many panel spaces are required to install the QO320-1021?
This assembly requires four pole spaces. While the breaker itself is a 3-pole unit, the factory-installed shunt trip module occupies one additional space in the load center or panelboard.
Which panelboards are compatible with the QO320-1021 breaker?
This plug-on breaker is designed exclusively for use in Square D QO load centers, NQ panelboards, and legacy NQOD panelboards. It cannot be installed in Homeline or competing manufacturer panels.
Can I use the QO320-1021 in place of a QOB320-1021?
No. The QO320-1021 features a plug-on mounting design, while the QOB320-1021 requires a bolt-on connection. You must verify whether your panelboard accepts plug-on or bolt-on breakers before purchasing.
How does the Visi-Trip indicator function on this breaker?
The Visi-Trip feature displays a highly visible red flag in the breaker window when it trips due to an overcurrent, short circuit, or a remote shunt trip command. This allows electricians to quickly identify the tripped circuit without testing each breaker in the panel.
