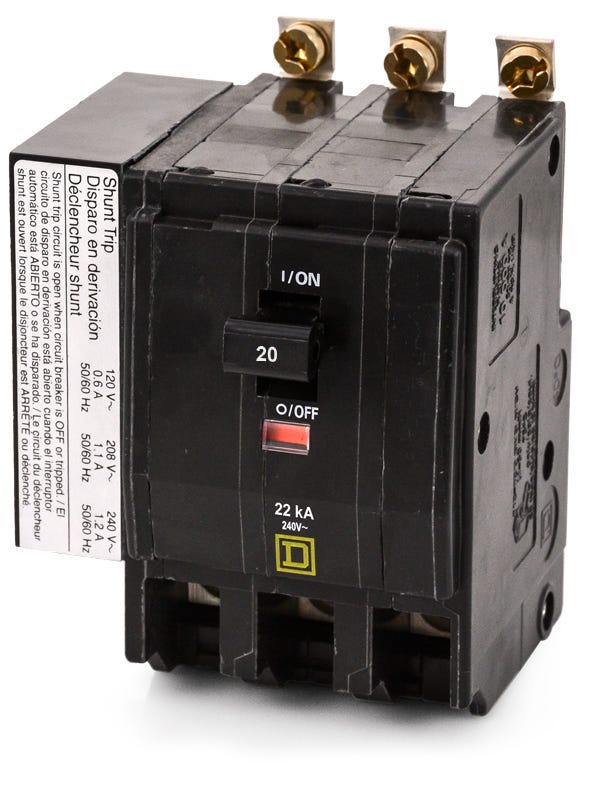

Square D QOB320VH-1021 QOB320VH1021 - 20A 3 Pole Miniature Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Square D
QOB320VH-1021
QOB320VH1021 - 20A 3 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QOB320VH-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB320VH1021 - 20A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QOB220VH1021 - 20A 2 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Engineered for commercial electrical systems, the QOB320VH-1021 delivers reliable overcurrent protection with remote tripping functionality. This 3-pole, 20A breaker handles demanding loads while offering advanced control. It mounts into Square D NQ and NQOD panelboards using a secure bolt-on connection. Rated for 22 kAIC at 240V, it features a factory-installed 120/240V AC shunt trip for remote shutdown and includes the signature Visi-Trip indicator to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB320VH-1021 |
| Series | QOB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip (Factory Installed) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards accept the QOB320VH-1021 circuit breaker?
This bolt-on breaker is specifically designed for installation in Square D NQ and NQOD series panelboards. It is not compatible with standard QO load centers, which require plug-on breakers.
What does the -1021 suffix indicate on this Square D breaker?
The -1021 suffix designates that the breaker comes with a factory-installed 120/240VAC shunt trip accessory. This allows the breaker to be opened remotely via an external control signal.
What does the VH designation mean in the QOB320VH-1021 part number?
The VH indicates a higher interrupting rating. This model provides a 22kAIC rating at 120/240VAC, which is higher than the standard 10kAIC rating found on base QOB breakers.
What wire sizes and materials are compatible with the terminals on this breaker?
The pressure plate terminals are rated for 14 AWG to 8 AWG wire and accept both copper (Cu) and aluminum (Al) conductors.
How does the breaker indicate a tripped condition?
It features the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or a remote shunt trip command, a highly visible red flag appears in the indicator window to help quickly identify the faulted circuit.
Is the QOB320VH-1021 a direct replacement for standard QOB320 breakers?
It shares the same physical footprint and bolt-on mounting as a standard QOB320, but it includes a 22kAIC interrupting rating and a factory-installed 120/240VAC shunt trip. It should only be used if the panel requires the higher fault rating or remote tripping capabilities.
