Square D Y1B120 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Square D
Y1B120
Molded Case Circuit Breaker
Brand
Square D
SKU
Y1B120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

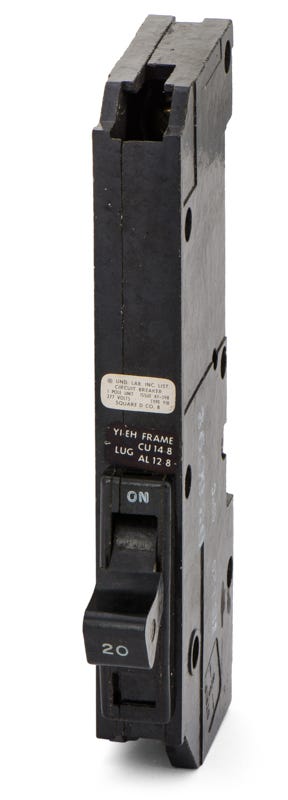

Square D Y1B120 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D Y1B120 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | Y1B120 |
| Series | Y1B |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 277VAC |
| Frame Type | Y1B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NY1B Panelboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489 |
| Approval | UL |
| Temp Rating | 40°C |
| Construction Features | SWD Rated |
