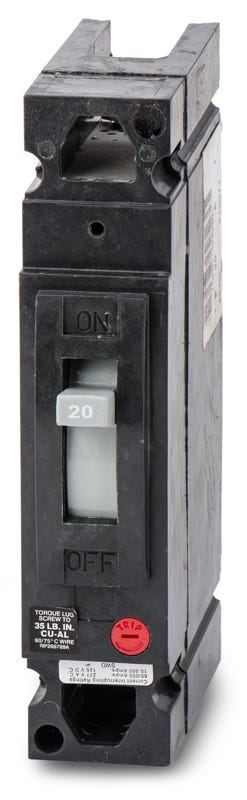

ABB / General Electric THED113020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
ABB / General Electric
THED113020
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THED113020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THED113020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THED113020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113020 |
| Series | THED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Quantity
ABB / General Electric THED113020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113020-R |
| Series | THED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
ABB / General ElectricTHED113030
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED124020
20A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTHED136020
20A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy E-frame family, this 20A single-pole breaker delivers reliable thermal-magnetic protection for commercial and industrial systems. It installs into GE A-Series panelboards and lighting panels, utilizing a secure bolt-on connection. Serving as a high-interrupting upgrade, it replaces the standard TED113020 model while maintaining SWD and HID ratings for specialized lighting loads.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THED113020 |
| Series | THED |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 277VAC, 20kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Line Lugs (Suffix WL) |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
8 answersWhat panelboards are compatible with the THED113020 circuit breaker?
This E-frame breaker is designed to install into GE A-Series panelboards and GE lighting panels that accept bolt-on branch breakers.
Will I receive a GE or ABB branded breaker when ordering the THED113020?
Following ABB's acquisition of GE Industrial Solutions, this E150 line breaker may be branded as either GE or ABB. Both versions are identical in form, fit, and function, and are fully interchangeable under the same UL listings.
What is the difference between the TED113020 and the THED113020?
The THED113020 is the high-interrupting capacity version of the standard TED113020. It upgrades the short-circuit protection to 65kAIC at 277VAC while maintaining the same physical dimensions and panel compatibility.
Is the THED113020 rated for switching lighting loads?
Yes, this 20A single-pole breaker is both SWD (Switching Duty) rated for 277VAC fluorescent lighting loads and HID (High-Intensity Discharge) rated.
Does the THED113020 carry an HACR rating?
Yes, it is HACR rated, meaning it is UL listed for the group motor protection required by heating, air conditioning, and refrigeration equipment.
Is the THED113020 suitable for reverse feed applications?
Yes, GE E150 line breakers, including the THED series, are suitable for reverse feed installations.
Does the THED113020 include both line and load lugs?
Standard 1-pole THED breakers include a load-side lug only, as the line side bolts directly to the panel bus. If a line-side lug is required for a specific application, you must use the THED113020WL variant or install a separate line lug.
Can the THED113020 be used in DC power systems?
Yes, this thermal-magnetic breaker is rated for DC applications up to 125VDC, where it provides an interrupting capacity of 20kAIC.
