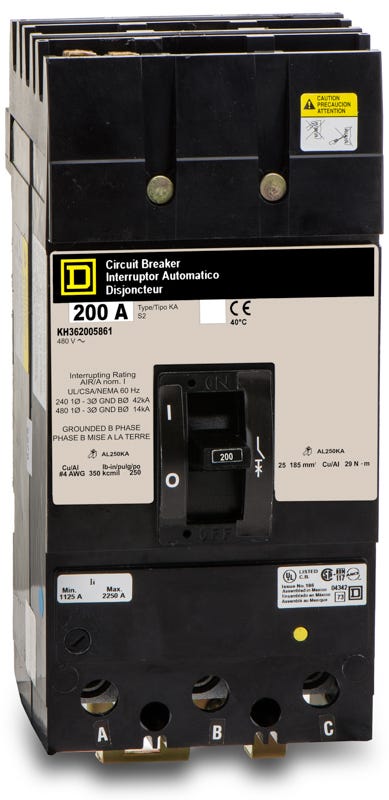

Square D KH362005861 Molded Case Circuit Breaker
- 200A
- 3 Pole
- I-Line
Square D
KH362005861
Molded Case Circuit Breaker
Brand
Square D
SKU
KH362005861
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KH362005861 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for specialized industrial environments, the Square D KH362005861 is a 3-pole, 200A molded case circuit breaker with a corner-grounded delta (grounded B phase) rating. It utilizes thermal-magnetic trip technology to deliver precise long-time and instantaneous (LI) protection across 600VAC networks. This K-Frame device mounts into Square D I-Line panelboards. When modernizing equipment, it crosses over to the PowerPact JGA362005861. It features a 35kAIC interrupt capacity at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | KH362005861 |
| Series | KH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Corner-Grounded Delta Rated |
Product FAQs
4 answersWhat does the 5861 suffix indicate on the KH362005861?
The 5861 suffix designates that this circuit breaker is UL listed and labeled specifically for use on 3-phase, 3-wire corner-grounded delta electrical systems, commonly referred to as grounded B phase systems.
What is the modern PowerPact replacement for this legacy breaker?
When upgrading or modernizing equipment, this legacy K-Frame breaker crosses over to the newer Square D PowerPact J-Frame series. The direct replacement catalog number is JGA362005861.
How is this breaker installed into the panelboard?
It utilizes the Square D I-Line plug-on mounting system. The breaker features jaws that plug directly onto the panelboard bus stack and is secured firmly by ratcheting it into place with a screwdriver.
How does the trip adjustability work on this model?
This breaker features a thermal-magnetic trip unit where the thermal (long-time) protection is fixed at 200 amps. However, the magnetic (instantaneous) trip function is adjustable, allowing you to fine-tune the short-circuit response to match your specific load requirements.
