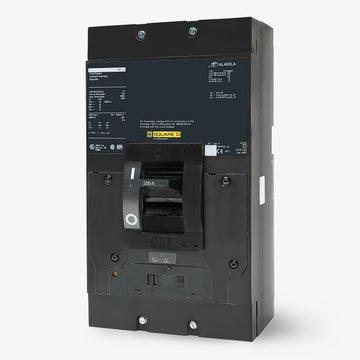

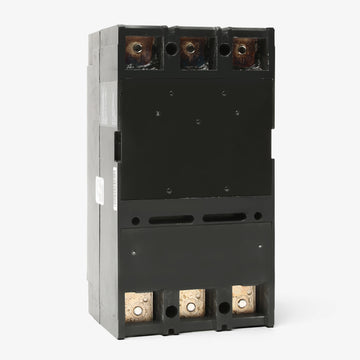

Square D LHL36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
LHL36200
Molded Case Circuit Breaker
Brand
Square D
SKU
LHL36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D LHL36200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
350A 3 Pole Molded Case Circuit Breaker
Description
A reliable solution for commercial facilities, the LHL36200 is a 200A, 3-pole MCCB. It belongs to Square D's legacy L-Frame family, providing essential overcurrent safety. The unit mount design allows for secure installation into Square D switchboards. When replacing this model, the JGL36200 is the substitute, requiring a frame change. It features a thermal-magnetic trip mechanism with adjustable magnetic (LI) settings. The breaker is rated 35 kAIC at 480VAC and is HACR certified.Specifications
| Brand | Square D |
|---|---|
| Part Number | LHL36200 |
| Series | LHL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC |
| Frame Type | LHL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D L-Frame Enclosures, Switchboards, Panelboards |
| Wire Gauge | (1) 1 AWG - 600 kcmil (Al/Cu) or (2) 1 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Padlock Attachment |
|---|---|
| Accessories | Lugs (AL400LA) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
Product FAQs

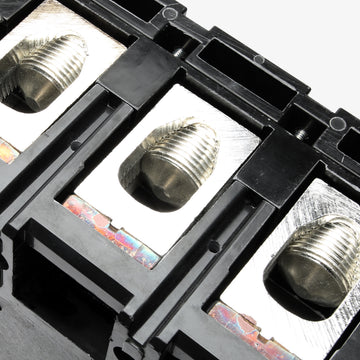

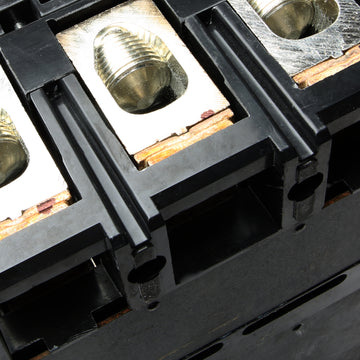

5 answersWhat is the wire range and torque specification for the LHL36200 lugs?
The LHL36200 accepts either one 1 AWG to 600 kcmil or two 1 AWG to 250 kcmil aluminum or copper wires. The required tightening torque for the lugs is 115 lb-in (13 N.m).
Is the Square D LHL36200 obsolete, and what is the direct replacement?
The LHL36200 is a legacy L-frame breaker. The modern equivalent is the PowerPact J-frame, specifically the JGL36200. Note that upgrading to the J-frame requires a frame change, as the physical dimensions and mounting footprints differ.
How do you adjust the trip settings on the LHL36200?
This thermal-magnetic breaker features a fixed thermal overload and an adjustable magnetic instantaneous trip. The magnetic trip can be adjusted between 1000A and 2000A using the dial on the front of the breaker to accommodate inrush currents or coordinate with downstream devices.
Can the LHL36200 be used in DC applications?
Yes, the LHL36200 is rated for use in DC systems up to 250VDC, where it provides an interrupting rating of 50 kAIC.
What type of enclosures are compatible with the LHL36200?
The LHL36200 is designed for unit mount installation in Square D legacy L-frame enclosures, switchboards, and panelboards. It is compatible with NEMA 1, 3R, 4, 4X, 5, and 12 rated L-frame enclosures.
