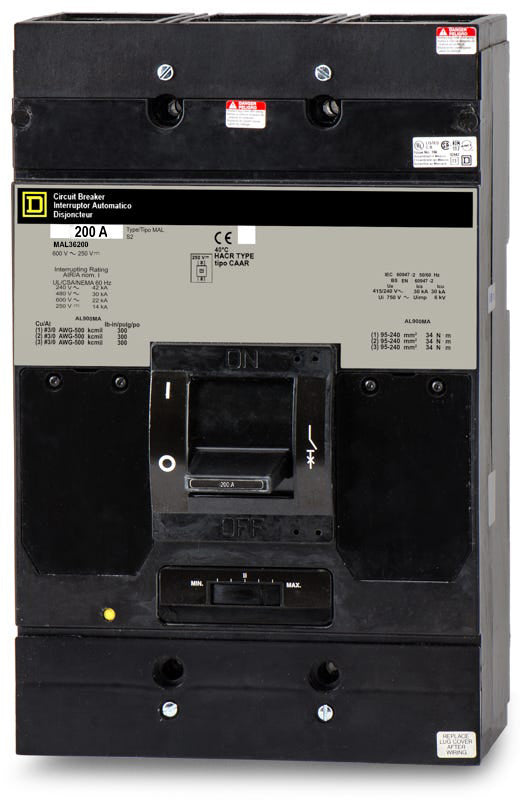

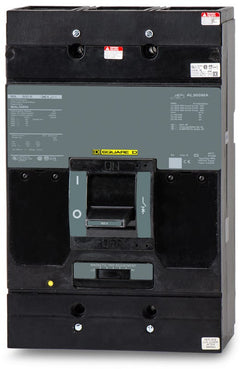

Square D MAL36200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Square D
MAL36200
Molded Case Circuit Breaker
Brand
Square D
SKU
MAL36200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MAL36200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
350A 3 Pole Molded Case Circuit Breaker
600A 3 Pole Molded Case Circuit Breaker
800A 3 Pole Molded Case Circuit Breaker
Description
A reliable solution for industrial facilities, the Square D MAL36200 is a 200A legacy molded case circuit breaker. It utilizes thermal-magnetic technology to deliver precise LI protection for heavy-duty circuits. Designed for unit-mount configurations, this M-Frame breaker installs into Square D switchboards and motor control centers. It serves as an exact replacement, avoiding the retrofit modifications required by the newer JGA36200. It features a 30kAIC rating at 480V and AL900MA lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | MAL36200-R |
| Series | MAL |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL900MA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersCan I replace my MAL36200 with a modern PowerPacT breaker?
Yes, the PowerPacT J-Frame (such as the JGA36200) is the modern 200A equivalent. However, because the physical dimensions differ from the legacy M-Frame, upgrading requires retrofit modifications to your switchboard or motor control center. Installing another MAL36200 provides an exact drop-in replacement.
What wire sizes do the lugs on the MAL36200 accept?
Because this 200A breaker is built on the larger legacy M-Frame, it comes standard with AL900MA lugs. These oversized lugs accommodate three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
Can the MAL36200 be installed in an I-Line panelboard?
No. This is a unit-mount, feed-thru circuit breaker intended for hardwired installations in switchboards and motor control centers. It lacks the plug-on jaw connections required for Square D I-Line panelboards.
Are the trip settings adjustable on this M-Frame breaker?
The thermal protection (Long-Time) is fixed at 200A, but the magnetic (Instantaneous) trip function is adjustable. This allows panel builders to fine-tune the short-circuit response for better coordination with downstream devices.
Is the MAL36200 rated for use with HVAC equipment?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration motor loads.
