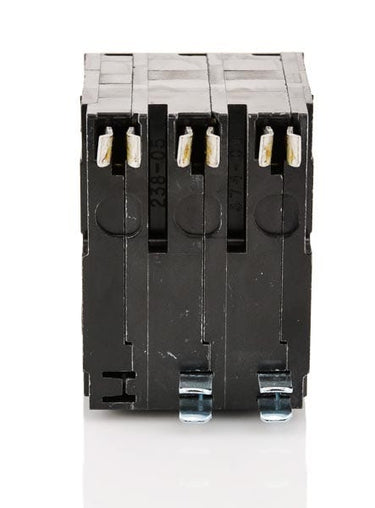

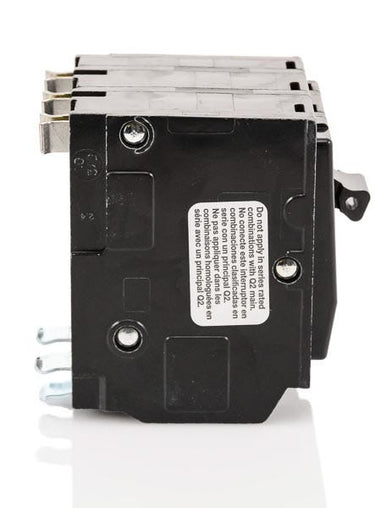

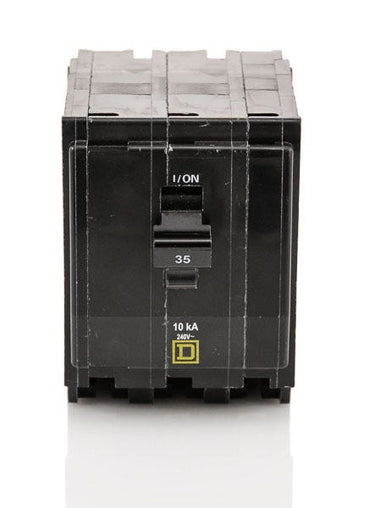

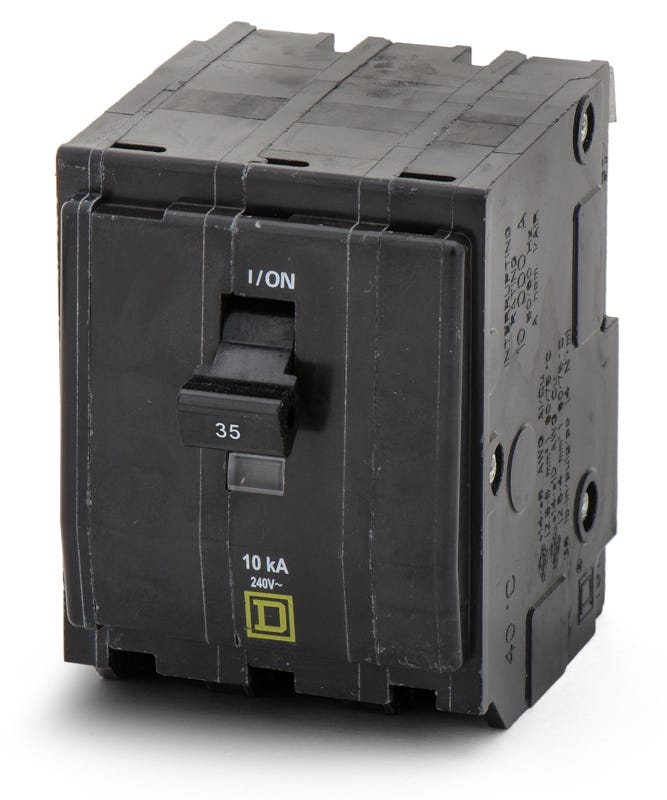

Square D QO335 Miniature Circuit Breaker
- 35A
- 3 Pole
- Plug-On
Square D
QO335
Miniature Circuit Breaker
Brand
Square D
SKU
QO335
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO335 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Square D QO335 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO335 |
| Series | QO |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Sold out
Quantity
Square D QO335 - 35A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO335-R |
| Series | QO |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
40A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
Description
Built for reliable commercial distribution, this 35-amp three-pole breaker handles standard 10kAIC fault currents at 240VAC. The plug-on design integrates seamlessly into Square D QO load centers and NQ panelboards without requiring bolted connections. Facility managers benefit from the integrated Visi-Trip red indicator flag, which simplifies maintenance by clearly showing when a circuit has tripped.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO335 |
| Series | QO |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
6 answersWhat load centers and panelboards are compatible with the QO335?
This plug-on breaker is designed exclusively for Square D QO load centers, NQ panelboards, and legacy Speed-D switchboards. It features a 3/4-inch format per pole and will not fit Homeline panels or standard 1-inch format load centers.
What is the bolt-on equivalent for the QO335?
If you are working with an NQ or NQOD panelboard configured for bolted connections, the correct replacement is catalog number QOB335. The QOB version features identical electrical specifications but includes mounting brackets for direct bolted bus connections.
Does the QO335 feature the Visi-Trip indicator?
Yes. This breaker is equipped with the Square D Visi-Trip mechanism. When the breaker trips due to an overload or short circuit, a red flag drops into the viewing window, allowing you to quickly identify the tripped circuit in a crowded panel without testing each handle.
How many panel spaces does the QO335 require?
It requires three consecutive full-size QO spaces. Since standard QO breakers measure 3/4 inches wide per pole, the total physical width of this breaker on the bus is 2.25 inches.
Is the QO335 HACR rated for HVAC loads?
Yes, this breaker carries an HACR rating. It is certified to protect heating, air conditioning, and refrigeration equipment, meaning it is capable of safely handling the short duration inrush currents generated by starting compressor motors.
Can I use aluminum wire with the QO335 terminals?
Yes, the integrated box lugs are rated for both copper and aluminum conductors sized between 8 AWG and 2 AWG. When terminating aluminum wire, you must properly prep the conductor and apply a listed joint compound to prevent oxidation at the connection point.
