Square D QO340VH Miniature Circuit Breaker
- 40A
- 3 Pole
- Plug-On
Square D
QO340VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO340VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

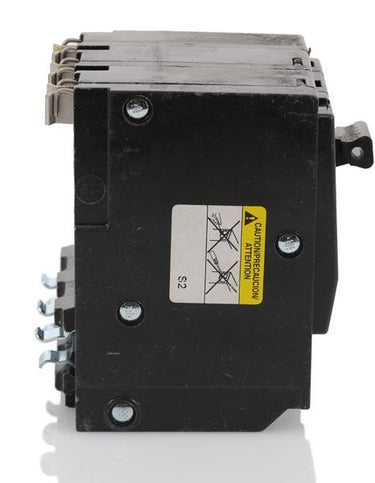

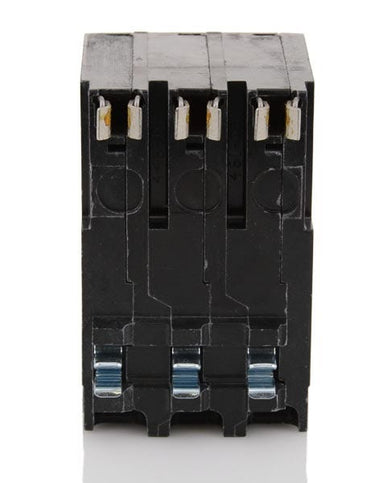

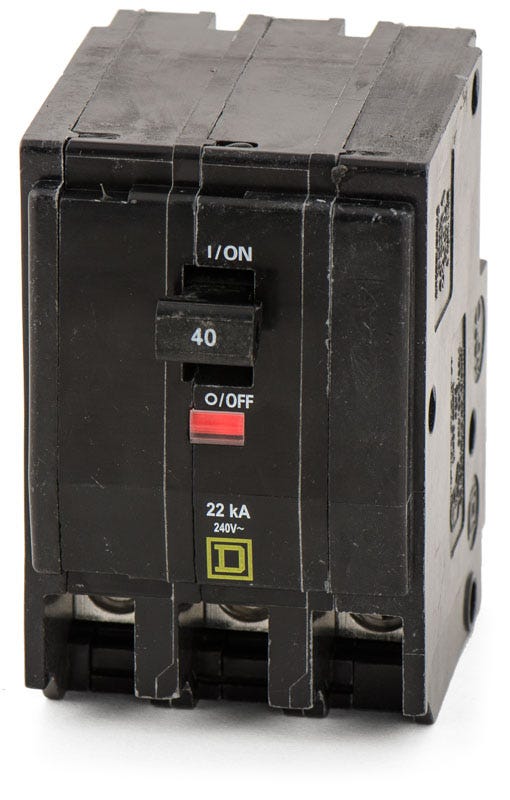

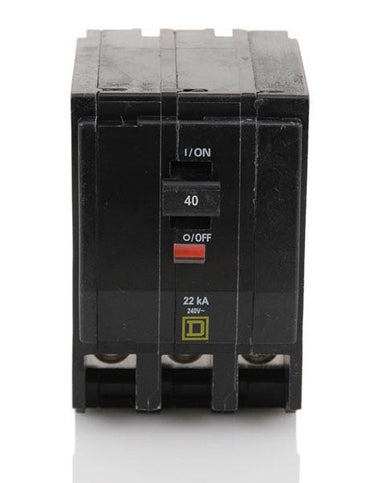

Square D QO340VH - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Miniature Circuit Breaker
20A 3 Pole Miniature Circuit Breaker
15A 3 Pole Miniature Circuit Breaker
Description
Part of the QO series, the Square D QO340VH is a 40-amp, three-pole miniature circuit breaker designed for residential, commercial, and industrial applications. It provides robust thermal-magnetic overcurrent protection for 240VAC electrical systems. This breaker snaps securely into standard Square D QO load centers and NQ panelboards. Differentiating itself with a high interrupting capacity of 22kAIC, it also includes the Visi-Trip indicator to quickly identify tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO340VH |
| Series | QO |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity, Mercury Free, RoHS Compliant |
Product FAQs
7 answersWhat panels are compatible with the QO340VH?
This breaker is designed for use in 3-phase Square D QO load centers and NQ panelboards. It features a plug-on mounting style and will not fit in panels designed exclusively for bolt-on breakers.
What does the VH suffix indicate on the QO340VH?
The VH suffix designates a high interrupting rating of 22kAIC at 120/240VAC. Standard QO breakers without this suffix typically have a 10kAIC rating.
How many panel spaces does the QO340VH require?
This 3-pole breaker requires three standard 0.75-inch spaces in a compatible QO load center or NQ panelboard.
Can the QO340VH be installed in a single-phase panel?
No. As a 3-pole breaker, it is engineered specifically for 3-phase systems and will not mount properly or safely in a single-phase load center.
What is the difference between the QO340 and the QO340VH?
Both are 40A, 3-pole miniature circuit breakers, but they differ in short-circuit protection. The QO340 has a standard 10kAIC rating, while the QO340VH provides a 22kAIC rating for systems with higher available fault currents.
What is the bolt-on equivalent to the QO340VH?
The QOB340VH is the bolt-on version of this breaker. It shares the same 40A, 3-pole, and 22kAIC specifications but is designed for NQ panelboards that require bolt-on connections.
Does the QO340VH include a tripped circuit indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips, the handle snaps to a midpoint position and displays a highly visible red flag for quick identification in the panel.
