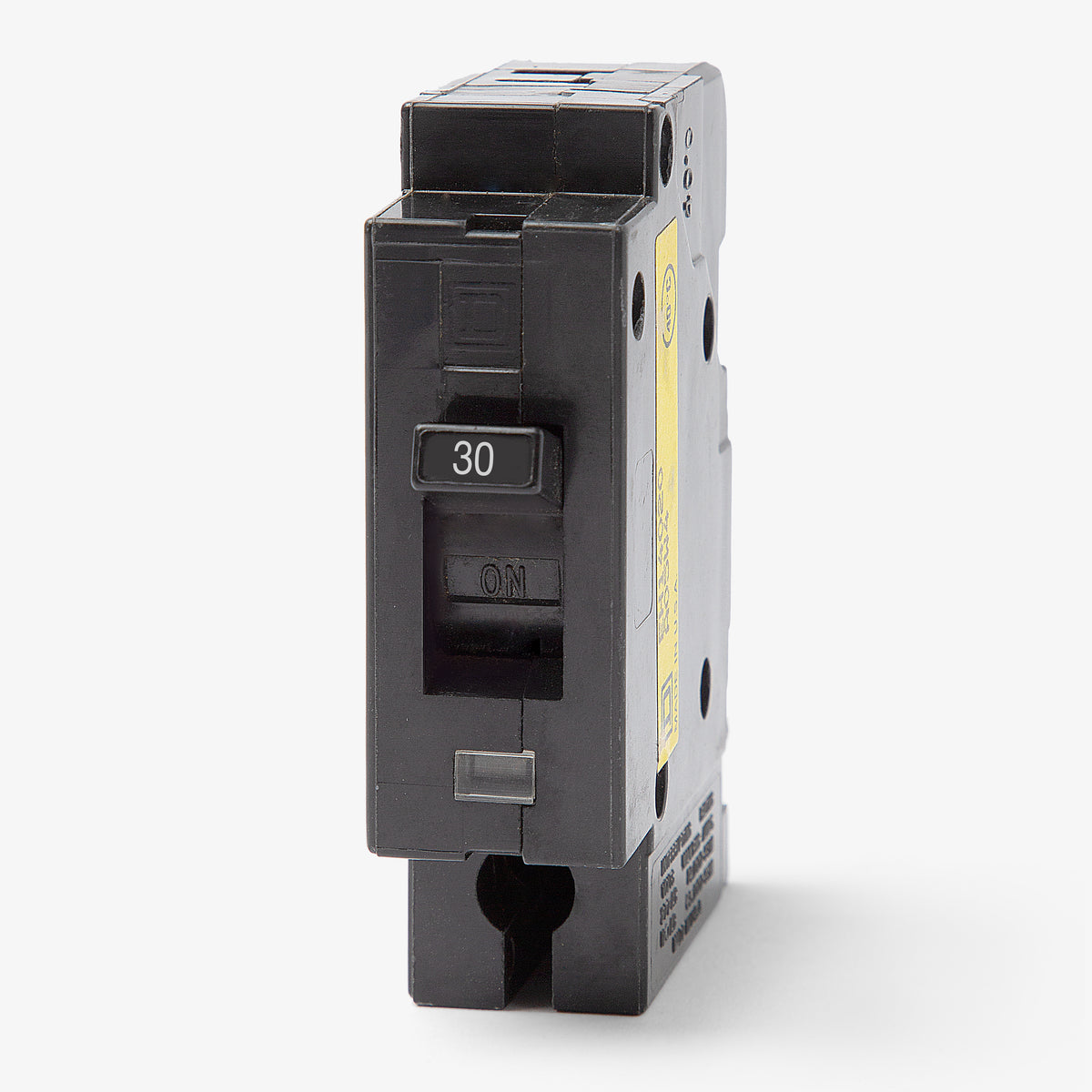

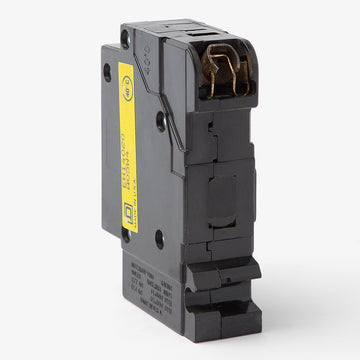

Square D EH14030 Molded Case Circuit Breaker
- 30A
- 1 Pole

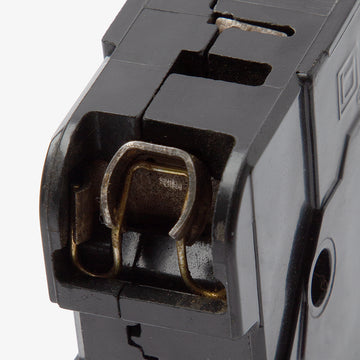

- Plug-On
Square D
EH14030
Molded Case Circuit Breaker
Brand
Square D
SKU
EH14030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EH14030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EH14030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EH14030 |
| Series | EH |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|

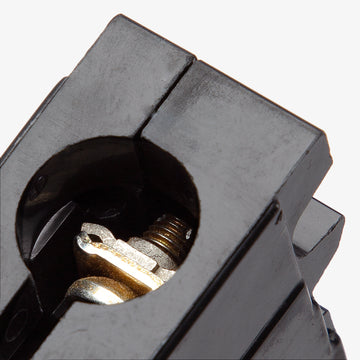

| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
Square D EH14030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EH |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker

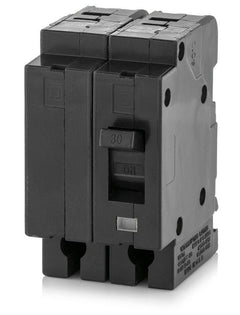

30A 2 Pole Molded Case Circuit Breaker
Description
Manufactured by Square D, the EH14030 is a 1-pole, 30A molded case circuit breaker. Built for commercial and industrial applications, it provides dependable thermal-magnetic protection for electrical distribution systems. This unit installs into legacy Square D NEHB panelboards using a convenient plug-on mounting style. It is a direct equivalent to the EHB14030 bolt-on replacement. Rated for 14kAIC at 277VAC, it features a Visi-Trip indicator for quick fault identification and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | EH14030 |
| Series | EH |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panelboards accept the Square D EH14030 circuit breaker?
The EH14030 is designed exclusively for legacy Square D NEHB panelboards. It will not fit in modern NF series panelboards, which require EDB style breakers.
What is the difference between the EH14030 and the EHB14030?
Both are 30-amp, single-pole breakers for NEHB panelboards. The EH14030 utilizes a plug-on mounting style, while the EHB14030 is the bolt-on equivalent. They are interchangeable within the same NEHB panelboard depending on your connection preference.
Can I use an EDB14030 to replace a failed EH14030?
No. The EDB14030 is the modern replacement series, but it is built for Square D NF panelboards. It will not physically mount into an older NEHB panelboard. You must source an EH or EHB series breaker to maintain your existing NEHB infrastructure.
What wire sizes are compatible with the EH14030 terminals?
The breaker lugs accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire. Always ensure the wire gauge matches the 30-amp circuit requirements and is torqued to the manufacturer specifications.
Is the EH14030 breaker HACR rated for HVAC applications?
Yes, this breaker is HACR rated. It can be safely used to protect heating, air conditioning, and refrigeration equipment that requires a 30-amp, 277VAC single-phase supply.
How does the EH14030 indicate a tripped condition?
This breaker features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle moves to a center position and a highly visible red indicator appears, allowing for quick fault identification in the panel.
