Square D EH24030 Molded Case Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Square D
EH24030
Molded Case Circuit Breaker
Brand
Square D
SKU
EH24030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

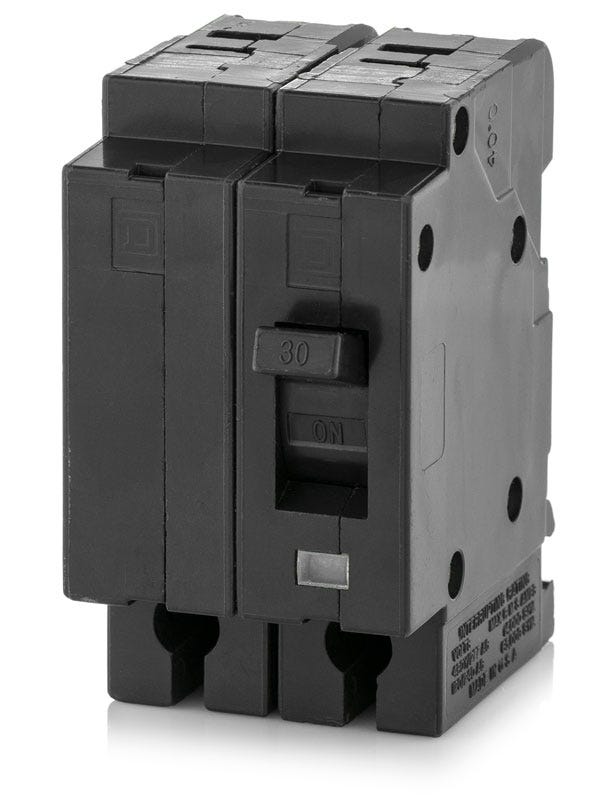

Square D EH24030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity

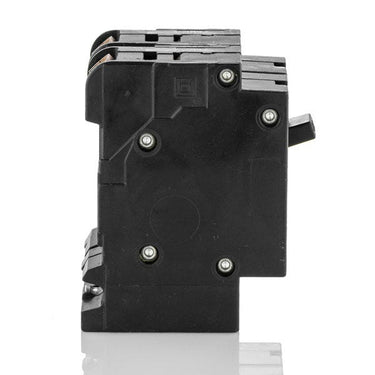

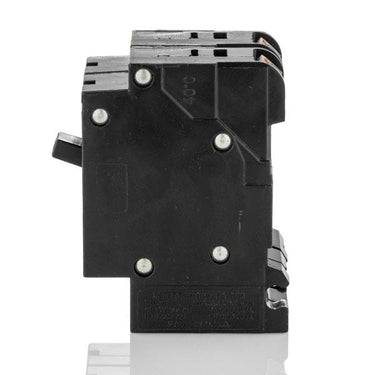

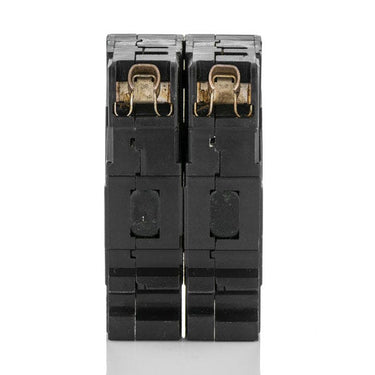

Square D EH24030 - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EH24030-R |
| Series | EH |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Quantity
Square D EH24030 - 30A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EH24030-R |
| Series | EH |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
20A 2 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Square D EH24030 is a 2-pole, 30A molded case circuit breaker. It provides dependable overcurrent protection for demanding electrical systems. This unit installs into legacy Square D NEHB panelboards using a convenient plug-on mounting configuration. The bolt-on EHB24030 can also serve as a substitute for this breaker. Rated 14 kAIC at 480Y/277VAC, it features fixed thermal-magnetic trip elements and a Visi-Trip indicator for quick fault spotting.Specifications
| Brand | Square D |
|---|---|
| Part Number | EH24030-R |
| Series | EH |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 480Y/277VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 14kA @ 480Y/277VAC, 65kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
5 answersWhat panelboards are compatible with the EH24030 circuit breaker?
The EH24030 is designed specifically for legacy Square D NEHB panelboards. It features a plug-on mounting design that connects directly to the panel busbar.
What is the difference between Square D EH and EHB circuit breakers?
Both series are designed for legacy NEHB panelboards and offer identical electrical protection. The difference lies in the mounting style. EH breakers, such as the EH24030, use a plug-on connection, while EHB breakers use a bolt-on connection.
Can I install a modern Square D EDB breaker in place of the EH24030?
No. While EDB breakers are the modern 480Y/277V replacement series, they are built exclusively for newer NF series panelboards. They will not physically fit or mount into legacy NEHB panelboards, which require EH or EHB series breakers.
What does the LI trip function indicate on the EH24030?
The LI designation means the breaker is equipped with a thermal-magnetic trip unit providing Long-Time (thermal) overload protection and Instantaneous (magnetic) short-circuit protection. Both of these trip thresholds are fixed and cannot be adjusted in the field.
Is the Square D EH series still actively manufactured?
No. The EH breaker series and the corresponding NEHB panelboards are legacy products that have been discontinued by Schneider Electric. Replacing a breaker in an existing NEHB panel requires sourcing these specific legacy components.
