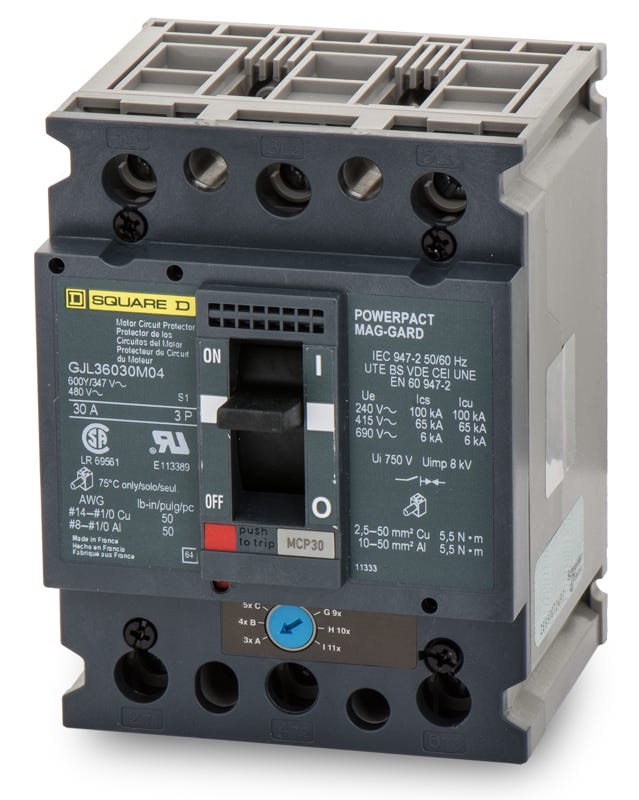

Square D GJL36030M04 Motor Circuit Protector
- 30A
- 3 Pole
- Unit Mount
Square D
GJL36030M04
Motor Circuit Protector
Brand
Square D
SKU
GJL36030M04
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D GJL36030M04 - 30A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Sold out
Quantity
Square D GJL36030M04 - 30A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | GJL36030M04 |
| Series | GJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Amperage Range | 90-330A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Combination Motor Controllers, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
Quantity
Square D GJL36030M04 - 30A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | GJL36030M04-R |
| Series | GJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Amperage Range | 90-330A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Combination Motor Controllers, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
Similar Items

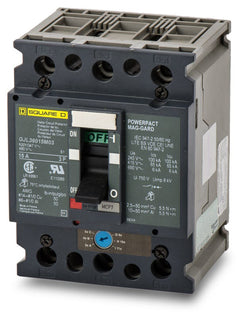

3A 3 Pole Motor Circuit Protector
15A 3 Pole Motor Circuit Protector
50A 3 Pole Motor Circuit Protector
Description
Part of the PowerPacT G-Frame family, the Square D GJL36030M04 is a 30A motor circuit protector designed for industrial motor control. It provides instantaneous short-circuit protection when paired with a starter and overload relay. This unit-mount device installs into combination motor controllers and control centers. For facility upgrades, note that this protector is replaced by the HJL36030M71. The adjustable magnetic trip range of 90 to 330A allows precise tuning to motor inrush currents.Specifications
| Brand | Square D |
|---|---|
| Part Number | GJL36030M04-R |
| Series | GJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 18kA @ 600Y/347VAC |
| Amperage Range | 90-330A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Combination Motor Controllers, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 8-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 8 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (Line & Load) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
