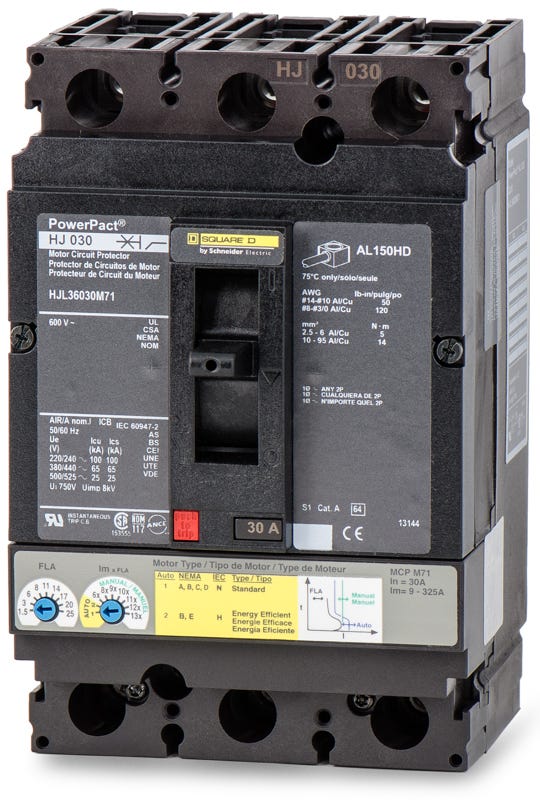

Square D HJL36030M71 Motor Circuit Protector
- 30A
- 3 Pole
- Unit Mount
Square D
HJL36030M71
Motor Circuit Protector
Brand
Square D
SKU
HJL36030M71
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJL36030M71 - 30A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Square D HJL36030M71 - 30A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36030M71 |
| Series | HJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Motor Control Centers, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | 9-325A Trip Range), Electronic Trip Unit (Suffix M71: 1.5-25A FLA |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Quantity
Square D HJL36030M71 - 30A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Motor Control Centers, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | 9-325A Trip Range), Electronic Trip Unit (Suffix M71: 1.5-25A FLA |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
Similar Items
150A 3 Pole Motor Circuit Protector

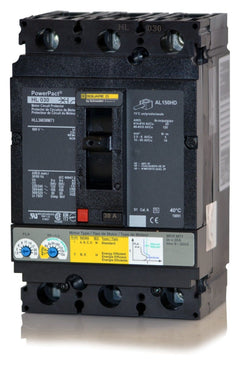

30A 3 Pole Motor Circuit Protector
Description
Built for heavy-duty motor control centers, this 30A magnetic-only protector coordinates with external overload relays to prevent equipment damage. The unit-mount design installs into standard PowerPacT H-Frame enclosures and industrial switchboards. Rated for 65 kAIC at 480VAC, it features an adjustable instantaneous trip range from 9 to 325 amps. A visual Visi-Trip indicator allows maintenance personnel to quickly identify faulted circuits without interrupting facility operations.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL36030M71 |
| Series | HJL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | H |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Motor Control Centers, Switchboards, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14 AWG-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | 9-325A Trip Range), Electronic Trip Unit (Suffix M71: 1.5-25A FLA |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Current Limiting, Visual Trip Indicator, Mercury Free, PVC Free, RoHS Compliant |
