Square D QO130-1021 QO1301021 - 30A 1 Pole Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Square D
QO130-1021
QO1301021 - 30A 1 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO130-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO1301021 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Miniature Circuit Breaker
QO2301021 - 30A 2 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
Description

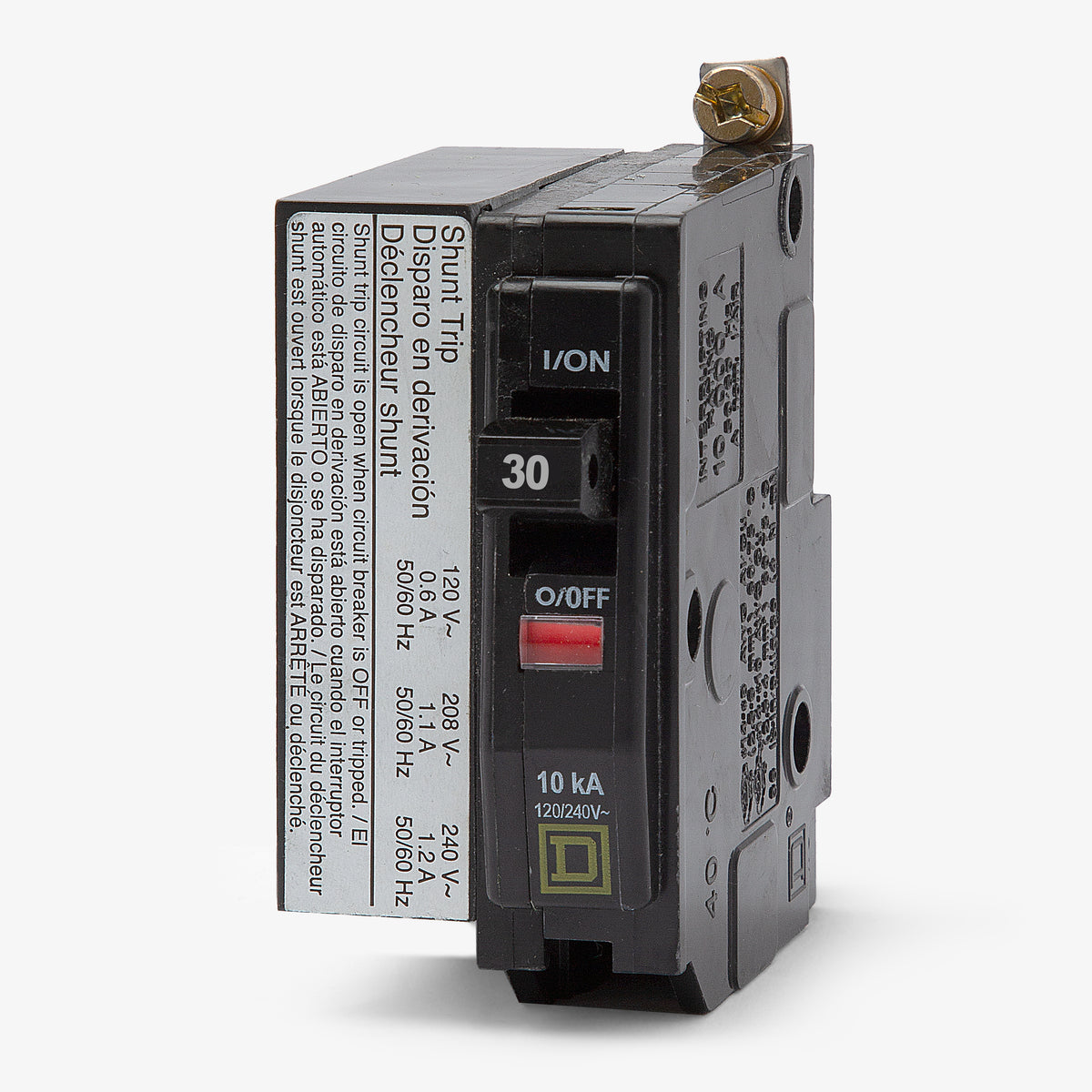

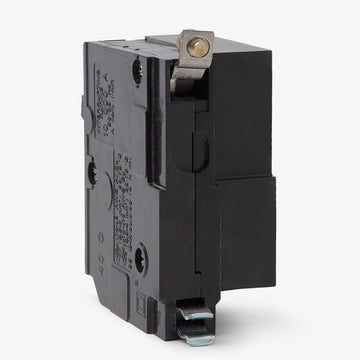

Integrating remote shutdown capabilities, this 30A single-pole device comes with a factory-installed 120/240V AC shunt trip mechanism. It installs securely into Square D QO load centers, NQ, and legacy NQOD panelboards used in commercial environments. Beyond its automated tripping function, the unit retains standard thermal-magnetic protection and the signature Visi-Trip flag for rapid diagnostics.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO130-1021 |
| Series | QO |
| Amperage | 30A |
| Poles | 1 |

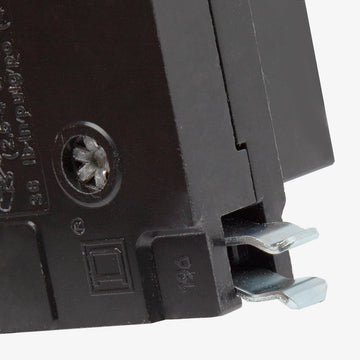

| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
8 answersWhat does the -1021 suffix indicate on the QO130-1021 circuit breaker?
The -1021 suffix indicates that this breaker includes a factory-installed 120/208/240V AC shunt trip accessory. This allows the breaker to be tripped remotely via a control circuit.
How many panel spaces does the QO130-1021 require?
Because it includes a factory-installed shunt trip accessory, this 1-pole breaker requires two standard 3/4-inch spaces in your panelboard.
Which panelboards and load centers accept the QO130-1021?
This plug-on breaker is compatible with Square D QO load centers, NQ panelboards, and legacy NQOD panelboards. It will not fit Homeline or I-Line panels.
What wire sizes and materials are supported by the terminals on this breaker?

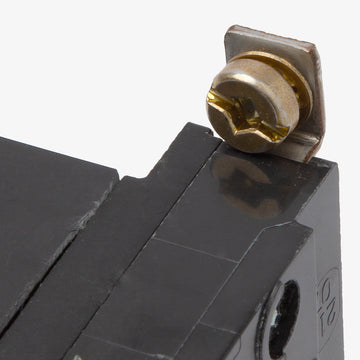

The pressure plate terminals accept 14 AWG to 8 AWG conductors and are rated for both copper and aluminum (Cu/Al) wiring.
How does the thermal-magnetic trip mechanism operate on this breaker?
The thermal-magnetic mechanism provides dual protection. The thermal element offers long-time protection against sustained overloads, while the magnetic element provides instantaneous tripping during short circuits.
Does the QO130-1021 include a Visi-Trip indicator?
Yes, it features the standard Square D Visi-Trip indicator, which displays a red flag in the window when the breaker has tripped, allowing for rapid diagnostics in the panel.
Is the QO130-1021 a bolt-on or plug-on breaker?
This is a plug-on miniature circuit breaker. If your panelboard requires a bolt-on connection, you will need the equivalent QOB series breaker.
Can the QO130-1021 be used in DC applications?
Yes, in addition to its 120/240V AC rating, this breaker is rated for 48V DC applications with an interrupting capacity of 5kAIC.
