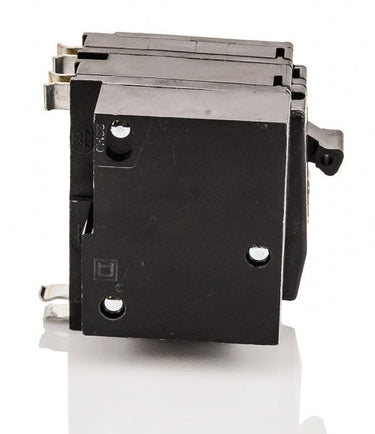

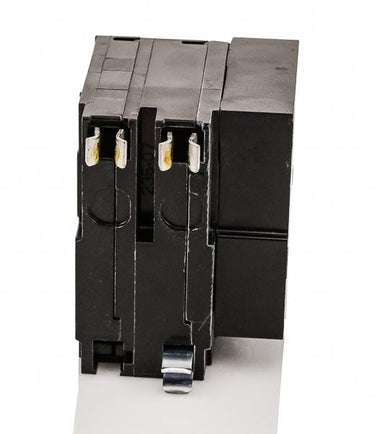

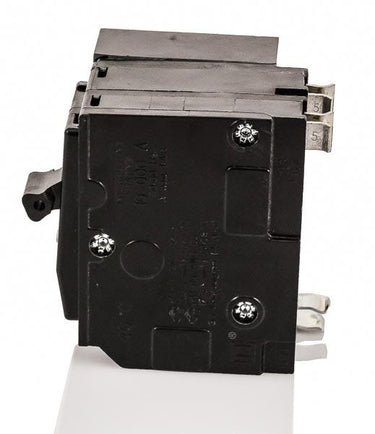

Square D QO230-1021 QO2301021 - 30A 2 Pole Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Square D
QO230-1021
QO2301021 - 30A 2 Pole Miniature Circuit Breaker
Brand
Square D
SKU
QO230-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO2301021 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
QO2201021 - 20A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description

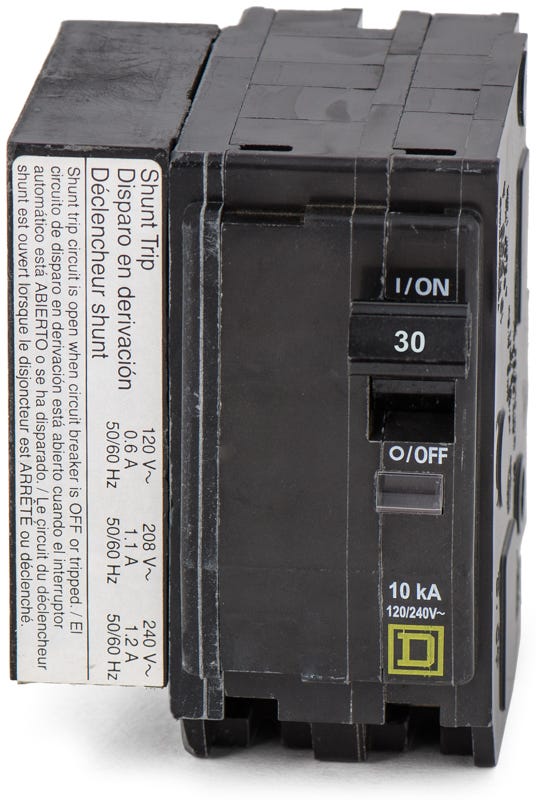

Built for remote shutdown applications, this 30A, 2-pole device includes a 120/240VAC shunt trip. This allows external signals to open the circuit for safety systems. The accessory means this unit requires three standard spaces (2.25 inches wide). It snaps into Square D QO load centers and NQ panelboards, accepting 14-8 AWG wiring. It delivers 10kAIC protection and features the Visi-Trip indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO2301021 |
| Series | QO |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
6 answersWhat does the -1021 suffix mean on the QO230-1021 breaker?
The -1021 suffix indicates the inclusion of a factory-installed 120/240V AC shunt trip accessory. This allows the breaker to be tripped remotely by an external voltage signal, making it ideal for emergency shutdown applications.
How many panel spaces does the QO230-1021 require?
While it is a 2-pole breaker, the factory-installed shunt trip accessory requires an additional pole space. It takes up three standard 3/4-inch spaces (2.25 inches total width) in a compatible panel.
Which electrical panels accept the QO230-1021 breaker?
This plug-on breaker is compatible with Square D QO load centers, NQ panelboards, and legacy NQOD panelboards. It cannot be used in Homeline load centers or panels requiring bolt-on connections.
What is the difference between the QO230-1021 and QOB230-1021?
The QO230-1021 features a plug-on mounting design for QO load centers and compatible panelboards. The QOB230-1021 is the bolt-on equivalent, designed specifically for NQ and NQOD panelboards that require bolt-on breakers.
Does this breaker include a tripped circuit indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent event or a remote shunt trip signal, a red indicator appears in the window for quick visual identification in the panel.
Can the shunt trip mechanism be manually overridden?
No, this breaker utilizes a trip-free toggle mechanism. It will automatically trip during a fault condition or when the shunt trip is activated, and the handle cannot be manually held in the ON position to override the trip.
