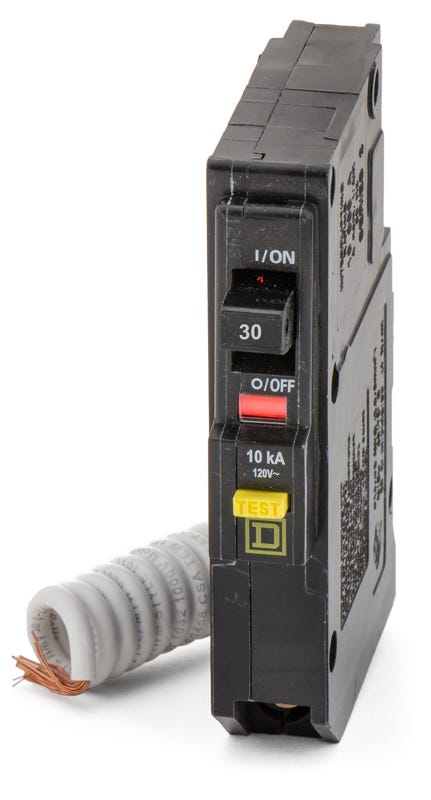

Square D QO130GF GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Square D
QO130GF
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO130GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO130GF - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Built to safeguard residential and commercial wiring, this single-pole ground fault breaker includes a pigtail neutral wire. It provides critical protection against electrical shocks in areas prone to moisture, meeting stringent safety standards. The plug-on design ensures compatibility with standard QO load centers and NQOD panelboards. Contractors often substitute this older model with the current QO130GFI replacement. A built-in Visi-Trip flag simplifies maintenance.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO130GF-R |
| Series | QO |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the QO130GF circuit breaker?
This plug-on breaker is designed for use in Square D QO load centers, as well as NQ and NQOD panelboards. It cannot be installed in Homeline or other manufacturer panels.
Are the QO130GF and QO130GFI the same breaker?
Yes, QO130GF and QO130GFI refer to the same 30A 1-pole ground fault circuit breaker. QO130GFI is the current catalog number used by Square D for this exact model.
What is the ground fault trip threshold for this breaker?
The QO130GF provides Class A ground fault protection. It is designed to trip when it detects a ground fault current of 6 mA or higher, ensuring personnel protection against electrical shock.
How do I wire the neutral connection for the QO130GF?
This breaker features a pigtail neutral. Connect the coiled white pigtail wire directly to the neutral bus bar in your panel, and terminate the load neutral wire at the neutral lug on the breaker itself.
Can I use this GFCI breaker on a multi-wire branch circuit with a shared neutral?
No. Like most standard GFCI breakers, the QO130GF requires a dedicated neutral wire for the protected circuit. Using a shared neutral will cause the breaker to trip continuously due to current imbalance.
Does the QO130GF include a tripped indicator?
Yes, it features the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or ground fault, a red flag appears in the window to help you quickly identify the tripped breaker.
