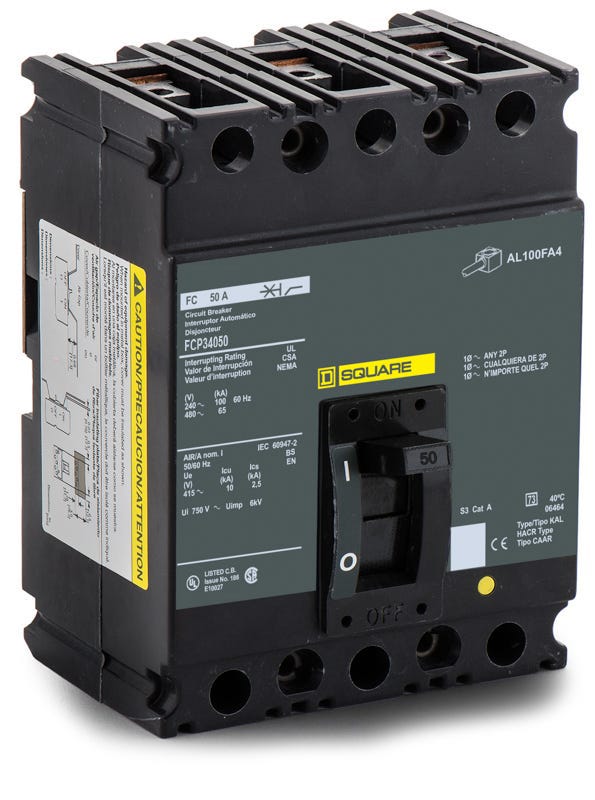

Square D FCP34050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Square D
FCP34050
Molded Case Circuit Breaker
Brand
Square D
SKU
FCP34050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FCP34050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, the Square D FCP34050 is a 50A, 3-phase molded case circuit breaker. It utilizes fixed thermal and magnetic trip elements to safeguard commercial electrical networks. This F-Frame breaker mounts into standard Square D panelboards and motor control centers using a secure bolt-on connection. Facilities looking for the current generation equivalent can use the HJL36050. It features a non-interchangeable trip design and delivers 100kAIC at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | FCP34050 |
| Series | FCP |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB-1, W-C-375B/GEN |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Extra High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
5 answersWhat types of enclosures accept the FCP34050 circuit breaker?
This legacy F-Frame breaker is designed for bolt-on installation in commercial Square D panelboards, switchboards, and motor control centers. Always verify your specific enclosure labeling to confirm FCP breakers are an approved type.
Is there a current generation replacement for the FCP34050?
Yes, the FCP34050 crosses over to the PowerPact HJL36050 for modern system upgrades. When replacing a legacy F-Frame with a newer H-Frame breaker, consult your panel documentation, as mounting hardware or backpan slot requirements may vary.
Are the thermal and magnetic trip points adjustable on the FCP34050?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection settings are factory calibrated and cannot be modified in the field.
What are the wire gauge requirements for the FCP34050 terminals?
The factory-installed lugs accept wire sizes from 14 AWG up to 1/0 AWG. The terminals are dual-rated for both copper (Cu) and aluminum (Al) conductors.
Can the FCP34050 be used in a standard Square D residential load center?
No. The FCP34050 is a commercial F-Frame molded case circuit breaker built for heavy-duty panelboards and switchboards. It is not physically or electrically compatible with residential QO or Homeline load centers.
