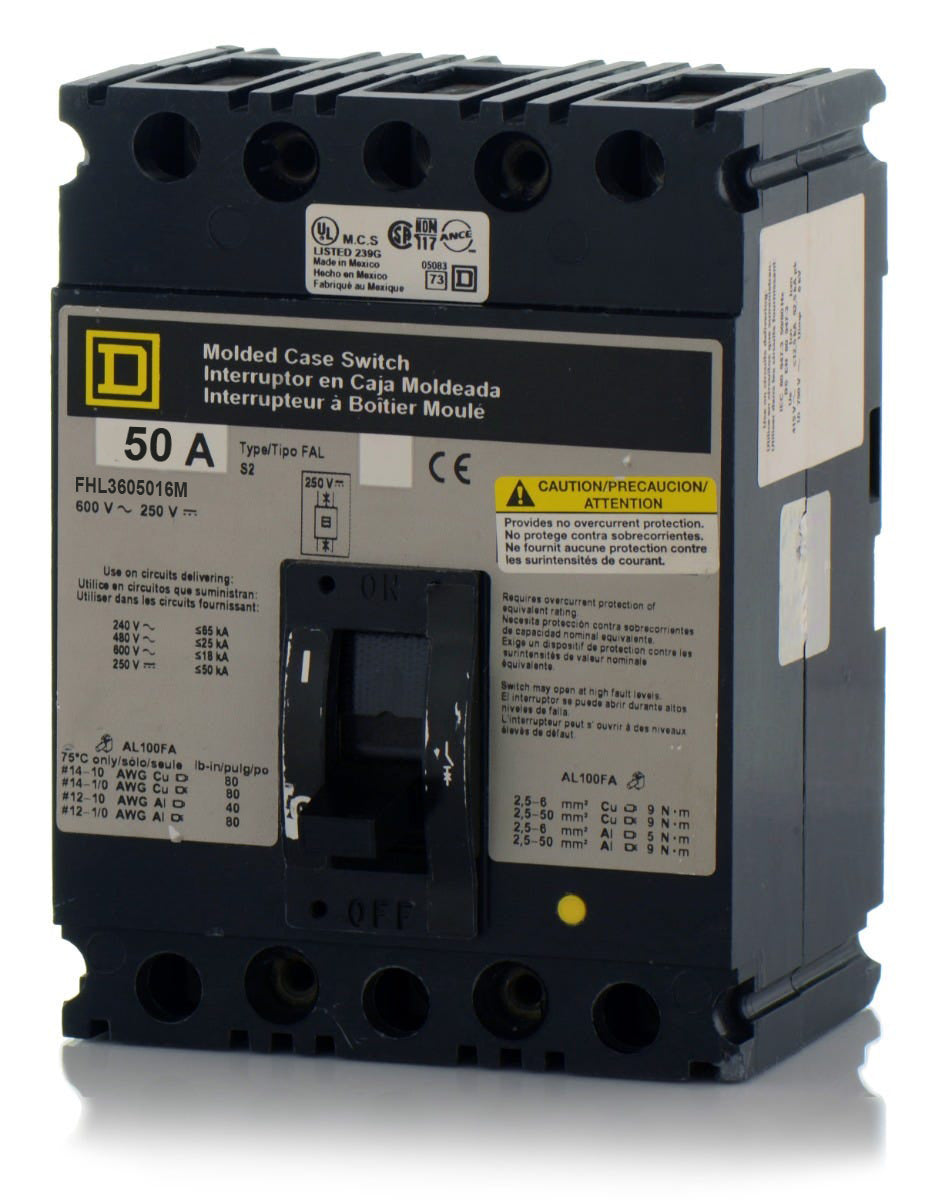

Square D FHL3605016M Motor Circuit Protector
- 50A
- 3 Pole
- Unit Mount
Square D
FHL3605016M
Motor Circuit Protector
Brand
Square D
SKU
FHL3605016M
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FHL3605016M - 50A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items
100A 3 Pole Motor Circuit Protector
50A 3 Pole Motor Circuit Protector
Description
Utilizing an adjustable 150-580A magnetic trip, this 50A Mag-Gard device isolates short circuits before they damage critical equipment. The unit mounts securely into industrial motor control centers, working in tandem with external overload relays to ensure comprehensive motor safety. While Schneider Electric now recommends the PowerPact HJL36050M72 with a retrofit kit as its modern equivalent, this original F-Frame model maintains a robust 65kAIC rating at 240V for demanding environments.Specifications
| Brand | Square D |
|---|---|
| Part Number | FHL3605016M |
| Series | FHL |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC |
| Amperage Range | 150-580A |
|---|
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Adjustable Instantaneous Trip, High Interrupting Capacity |
