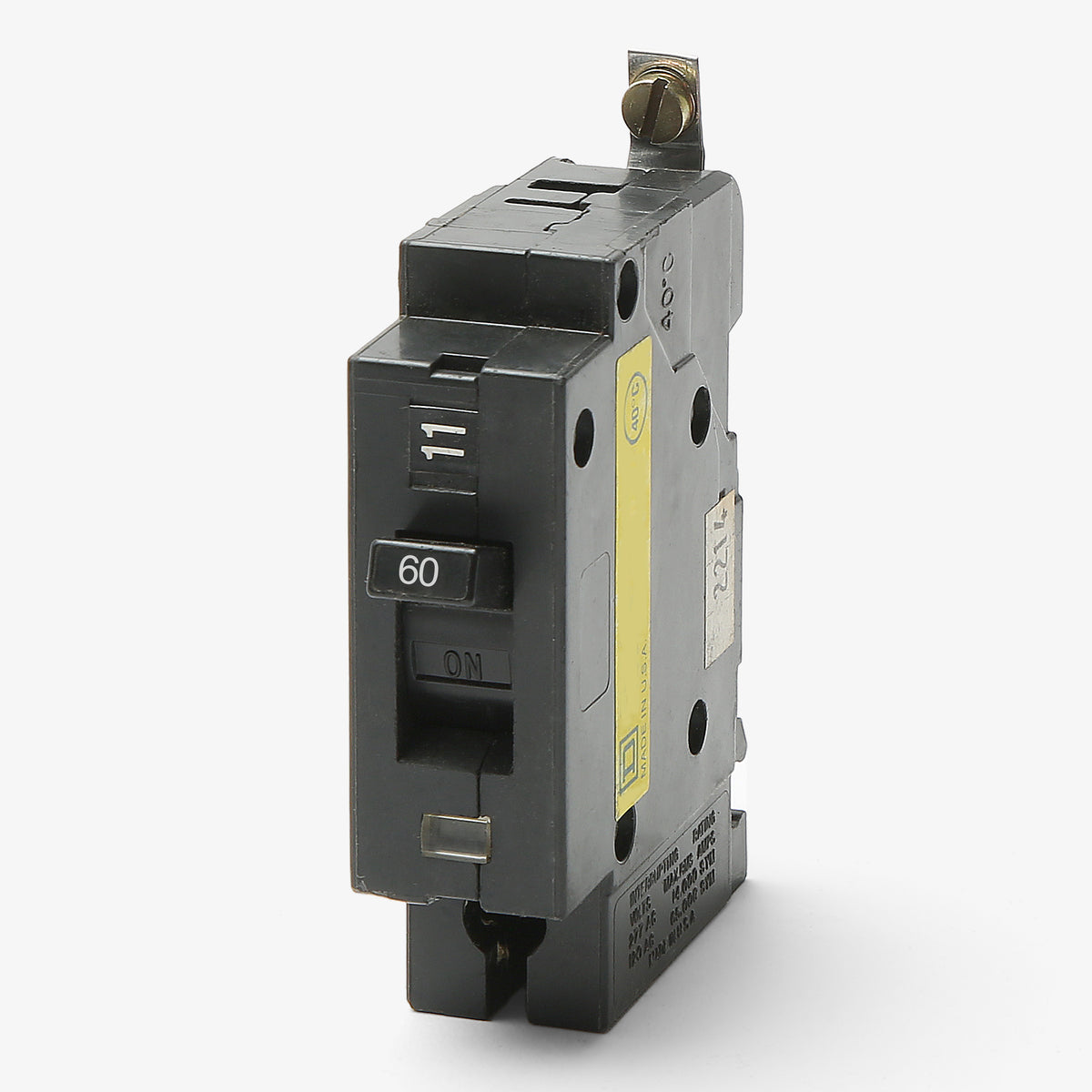

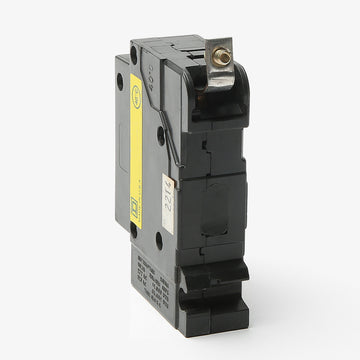

Square D EHB14060 Molded Case Circuit Breaker
- 60A
- 1 Pole

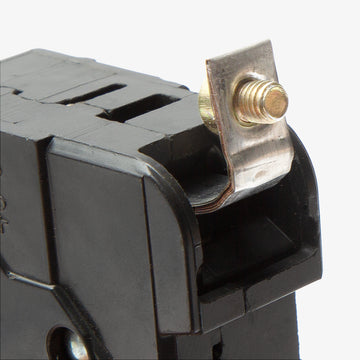

- Bolt-On
Square D
EHB14060
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB14060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB14060 - 60A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy EHB series, this 60A single-pole molded case circuit breaker delivers robust thermal-magnetic protection for commercial facilities. It is engineered specifically to maintain older electrical distribution systems. This bolt-on breaker installs into Square D NEHB panelboards. Since the NEHB line is obsolete, modern EDB series replacements require an upgrade to an NF panelboard, making this exact match essential. It features a 14kAIC rating at 277VAC and Visi-Trip technology.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB14060 |
| Series | EHB |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | EH |
|---|---|

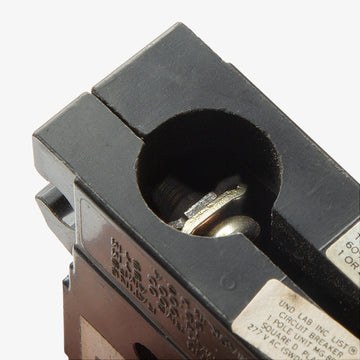

| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 12-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 12 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EHB14060 circuit breaker?
This breaker is designed exclusively for use in legacy Square D NEHB panelboards. It will not fit in modern NF, NQ, or NQOD panelboards.
Is the Square D EHB series obsolete?
Yes, the EHB series and the corresponding NEHB panelboards are legacy products and are no longer manufactured by Schneider Electric. You must source exact EHB replacements to maintain existing NEHB panels.
Can I use an EDB circuit breaker to replace an EHB14060?
No. EDB breakers are designed for modern Square D NF panelboards and have a different physical footprint. They cannot be installed in legacy NEHB panelboards. If you are upgrading the entire panelboard to an NF series, you will need to transition to EDB breakers.
Can this 1-pole breaker be used on 277V commercial lighting circuits?
Yes, the EHB14060 is fully rated for 277VAC applications. It is suitable for commercial 277V lighting and equipment circuits, provided the available fault current does not exceed its 14kA interrupt rating at that voltage.
Does the EHB14060 feature a visual trip indicator?
Yes, EHB series breakers include Square D Visi-Trip technology. When the breaker trips, the handle moves to a center position and a highly visible red indicator appears, allowing for quick identification of the faulted circuit in the panel.
Is the EHB14060 SWD rated for switching fluorescent lighting?
No. Switching Duty (SWD) ratings are restricted to 15A and 20A circuit breakers. As a 60A breaker, the EHB14060 is not SWD rated and should not be used as a switch for fluorescent lighting loads.
