Square D FAB36060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Square D
FAB36060
Molded Case Circuit Breaker
Brand
Square D
SKU
FAB36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

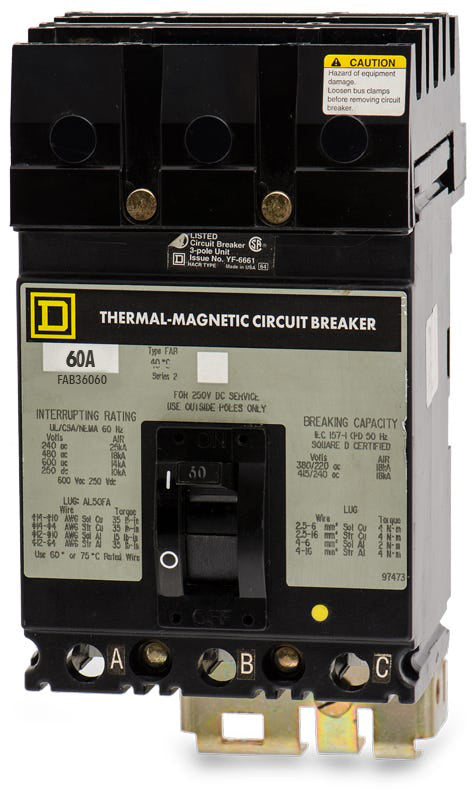

Square D FAB36060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Square D FAB36060 is a 3-pole, 60A molded case circuit breaker providing standard long-time and instantaneous (LI) trip functions. This F-Frame breaker mounts into Square D I-Line panelboards using a secure bolt-on connection. It is replaced by the modern PowerPact BDA36060 for newer installations. Rated for 25kAIC at 240V and 14kAIC at 600V, it ensures dependable fault clearing.Specifications
| Brand | Square D |
|---|---|
| Series | FAB |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat type of panelboard is the FAB36060 compatible with?
The Square D FAB36060 is designed exclusively for use in Square D I-Line panelboards. It features a secure bolt-on mounting connection specific to these commercial and industrial panels.
Can I install the FAB36060 in a standard residential load center?
No. The FAB36060 is an F-frame molded case circuit breaker built for I-Line panelboards. It is not compatible with residential Square D QO or Homeline load centers.
Is the FAB36060 still manufactured, or is there a direct replacement?
The legacy F-frame breakers, including the FAB36060, have been discontinued by Schneider Electric. For newer installations, they are typically replaced by the modern PowerPact B-frame series, such as the BDA36060, though exact fitment depends on your specific panelboard setup.
Does the FAB36060 feature an adjustable trip setting?
No. The FAB36060 features a fixed thermal and fixed magnetic trip unit. It is factory-calibrated for a 60A continuous current and cannot be adjusted in the field.
How does the trip indicator work on the FAB36060?
The FAB36060 features a visual trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle snaps to a center position, making it easy to identify the tripped breaker in a crowded panelboard.
What wire sizes are accepted by the standard lugs on the FAB36060?
The factory-installed mechanical lugs on the FAB36060 accept copper or aluminum wire gauges ranging from 14 AWG up to 1/0 AWG.
What does the LI trip function code mean on the FAB36060?
The LI code indicates that the breaker provides Long-Time and Instantaneous trip functions. The long-time function protects against sustained overloads, while the instantaneous function provides immediate tripping during a short circuit.
