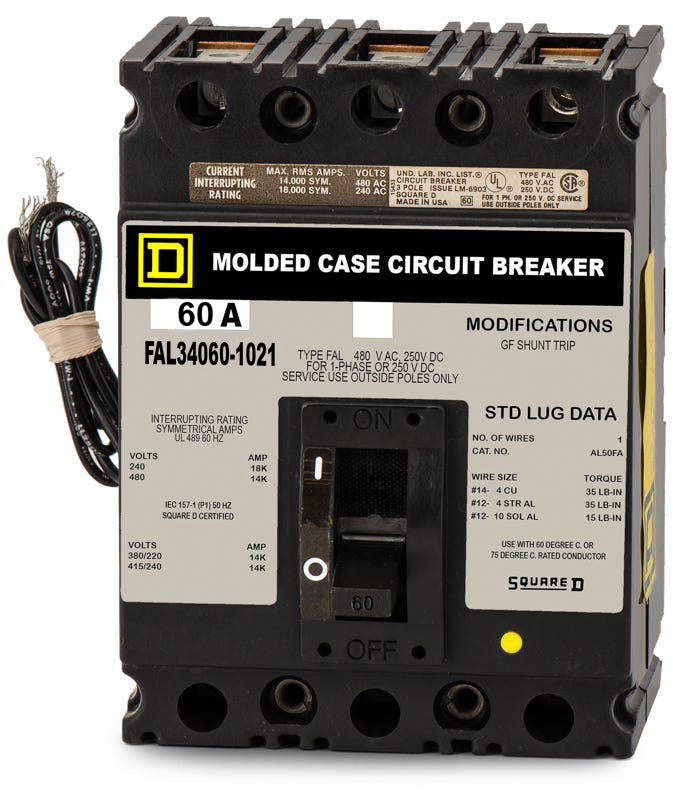

Square D FAL34060-1021 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Square D
FAL34060-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL34060-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL34060-1021 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
FAL361001021 - 100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Square D FAL34060-1021 is a 3-pole, 60A MCCB from the legacy F-Frame family. It features a factory-installed 120-240VAC shunt trip, allowing for remote tripping capabilities in complex control schemes. This unit-mount breaker installs into compatible Square D enclosures and motor control centers. For upgrades, the modern equivalent is the HDL36060.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34060-1021 |
| Series | FAL |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the "-1021" suffix mean on the FAL34060-1021?
The "-1021" suffix indicates that this breaker includes a factory-installed 120/240VAC shunt trip. This allows the breaker to be tripped remotely, which is often required for emergency stops or complex control schemes.
What is the modern replacement for the Square D FAL34060-1021?
The legacy F-frame FAL series has been discontinued. The recommended modern replacement is the Square D PowerPact B-frame BDL36060. To match the functionality of the "-1021" suffix, you must also install a compatible 120/240VAC shunt trip accessory in the new PowerPact breaker.
Can I install the FAL34060-1021 in an I-Line panelboard?
No. The FAL34060-1021 is a unit-mount circuit breaker designed to be hardwired into standard Square D enclosures, switchboards, and motor control centers. It lacks the plug-on jaw connections required for I-Line panelboards.
Does the FAL34060-1021 feature a Visi-Trip indicator?
Yes, this F-frame breaker includes a Visi-Trip indicator. When the breaker trips due to an overcurrent condition or is triggered remotely via the shunt trip, a highly visible red flag appears to help maintenance personnel quickly locate the tripped breaker.
How does the factory-installed shunt trip operate on this breaker?
The internal shunt trip mechanism requires an external 120VAC or 240VAC control voltage signal. When voltage is applied to the shunt trip coil, it mechanically forces the breaker to open, interrupting power to the load.
