Square D FHP36060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Bolt-On
Square D
FHP36060
Molded Case Circuit Breaker
Brand
Square D
SKU
FHP36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

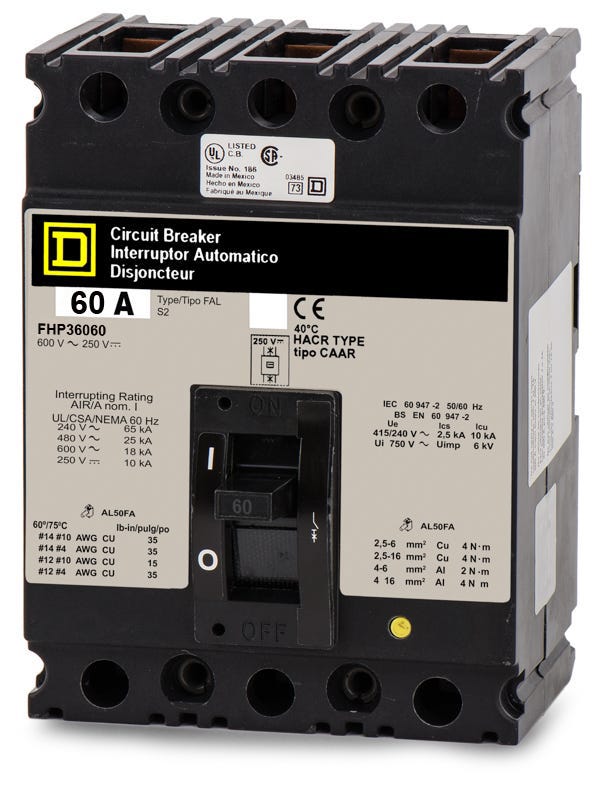

Square D FHP36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FHP36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FHP36060 |
| Series | FHP |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FHP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity |
