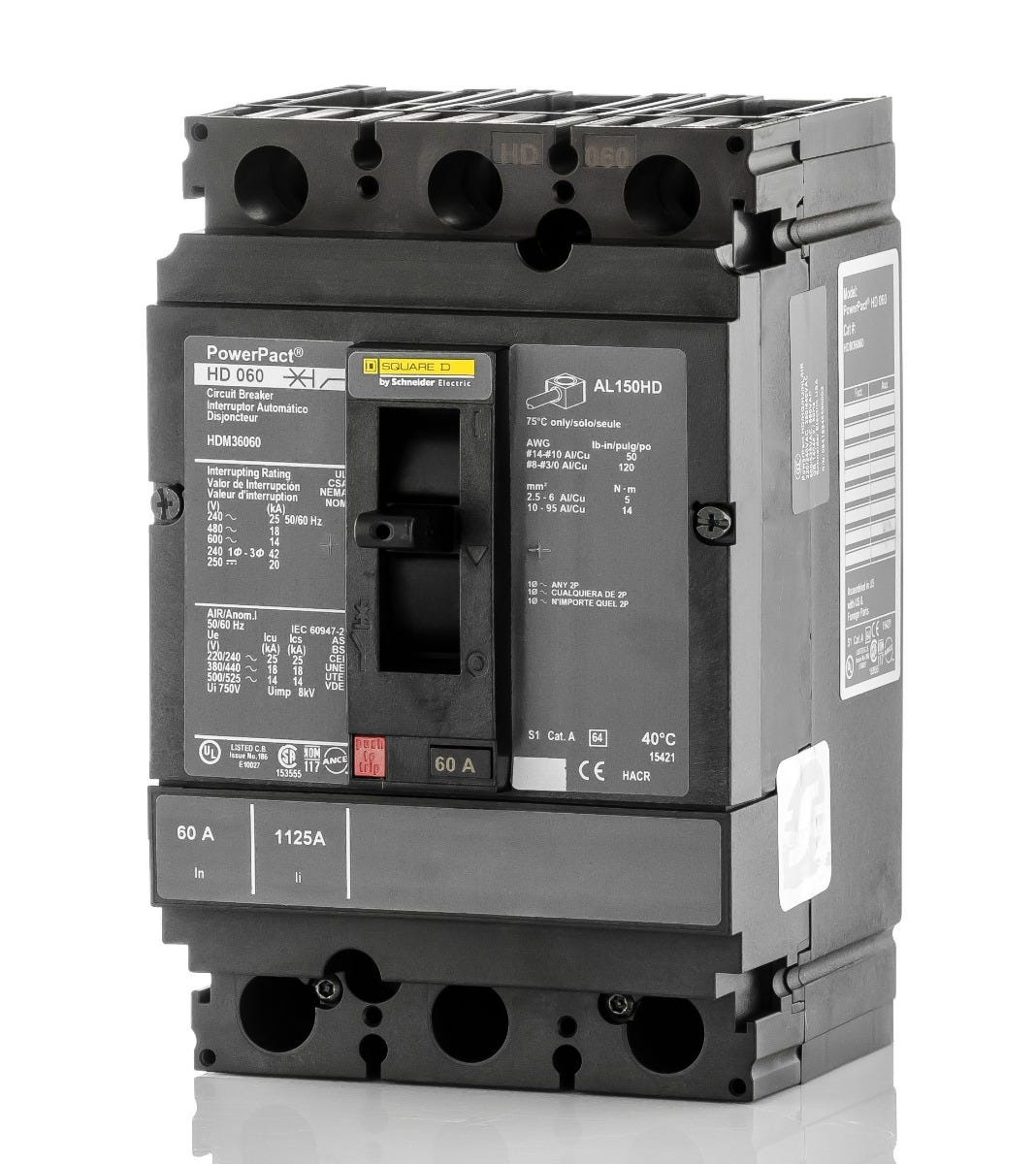

Schneider Electric / Square D HDM36060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Schneider Electric / Square D
HDM36060
Molded Case Circuit Breaker
Brand
Schneider Electric / Square D
SKU
HDM36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric / Square D HDM36060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Schneider Electric / Square D HDM36060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric / Square D |
|---|---|
| Part Number | HDM36060-R |
| Series | HDM |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Terminal Shields |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break, RoHS Compliant |
Quantity
Schneider Electric / Square D HDM36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric / Square D |
|---|---|
| Series | HDM |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Terminal Shields |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break, RoHS Compliant |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial control panels and motor control centers, the HDM36060 delivers robust thermal-magnetic circuit protection. This 3-pole, 60A PowerPacT H-Frame breaker features a unit-mount design for straightforward integration into Square D switchboards and compatible enclosures. Offering a 14kAIC rating at 600VAC and 18kAIC at 480VAC, it ensures reliable long-time and instantaneous (LI) defense against overloads and short circuits. It serves as a standard-tier interrupting option.Specifications
| Brand | Schneider Electric / Square D |
|---|---|
| Part Number | HDM36060-R |
| Series | HDM |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers, Industrial Control Panels, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Lug Kits, Terminal Shields |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break, RoHS Compliant |
Product FAQs
6 answersWhat panels and enclosures are compatible with the HDM36060?
This PowerPacT H-Frame breaker is designed for integration into Square D switchboards, motor control centers, industrial control panels, and dedicated H-Frame enclosures.
What is the difference between the HDM36060 and HDL36060 circuit breakers?
Both are 60A, 3-pole PowerPacT H-Frame breakers with identical trip units and interrupting ratings. The difference lies in the terminations. The HDM36060 features a lug on the line side and a terminal nut on the load side, whereas the HDL36060 comes with lugs on both the line and load sides.
Can the HDM36060 be used in reverse-fed applications?
Yes, this thermal-magnetic circuit breaker is suitable for reverse-fed installations. This allows power to be supplied to either the line or load terminals without affecting the trip mechanism.
What does the D in the HDM36060 catalog number signify?
The D indicates the breaker's interrupting rating tier within the Square D PowerPacT H-Frame family. It designates a standard-tier interrupting capacity, providing up to 25 kA at 240V AC, 18 kA at 480V AC, and 14 kA at 600V AC.
How does the HDM36060 mount into a panel?
This is a unit-mount circuit breaker, meaning it bolts directly to the backpan of a panel or enclosure using mounting hardware. It is not compatible with I-Line plug-on bus systems.
Can the trip settings on the HDM36060 be adjusted?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload protection and the instantaneous short-circuit protection are factory-set and cannot be adjusted in the field.
