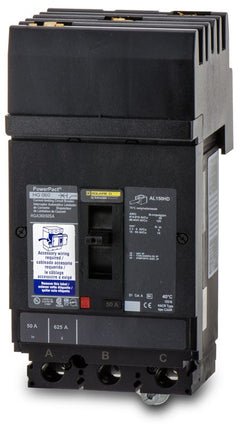

Square D HGA36060 Molded Case Circuit Breaker
- 60A
- 3 Pole
- I-Line
Square D
HGA36060
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA36060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA36060 - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36060 |
| Series | HGA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Phase Connection ABC |
Quantity
Square D HGA36060 - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36060-R |
| Series | HGA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Phase Connection ABC |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the Square D HGA36060 is a 3-pole, 60A molded case circuit breaker from the PowerPacT H-Frame family. It provides reliable long-time and instantaneous (LI) overcurrent protection. This unit features an I-Line mounting style to install seamlessly into Square D I-Line panelboards and switchboards. It also serves as a modern replacement for legacy FA36060 and FH36060 breakers. Rated for 35kAIC at 480VAC, this current-limiting breaker is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36060 |
| Series | HGA |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, Non-Interchangeable Trip, 80% Rated, Phase Connection ABC |
Product FAQs
6 answersCan I use the HGA36060 to replace an older FA36060 breaker?
Yes, the PowerPacT H-frame I-Line series is the direct modern replacement for legacy F-frame I-Line breakers, including the FA36060 and FH36060 models. It is designed to fit the exact same panelboards and switchboards.
What is the recommended tightening torque for the load-side lugs on this breaker?
For the standard AL150HD mechanical lugs, tighten to 44 lb-in (5 Nm) for 14 to 10 AWG wire, and 124 lb-in (14 Nm) for 8 AWG to 3/0 AWG wire.
How much bus space does this 3-pole breaker require in an I-Line panel?
As an H-frame unit, it requires 4.5 inches of mounting height on the I-Line bus stack.
Does this breaker come with mechanical lugs on both the line and load sides?
No. Because it is an I-Line plug-in style breaker, the line side features factory-installed jaw connections that mount directly onto the panelboard bus. Wire lugs are only provided on the load side.
What does the letter G in the HGA36060 part number signify?
The letter G designates the specific interrupting capacity tier within the PowerPacT H-frame family. It indicates the breaker's maximum fault-current ratings, which are 65kA at 240V, 35kA at 480V, and 18kA at 600V.
Does the HGA36060 feature a push-to-trip button for maintenance testing?
Yes, it includes an integral push-to-trip button on the front cover. This allows you to manually trip the breaker mechanism to visually verify proper operation as part of a regular preventive maintenance and safety program.
