Square D BDL26080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
Square D
BDL26080
Molded Case Circuit Breaker
Brand
Square D
SKU
BDL26080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

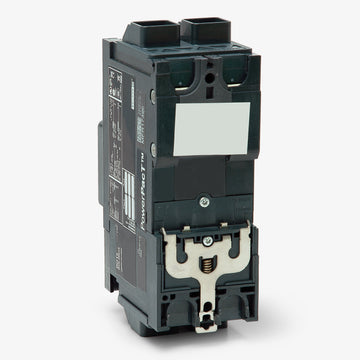

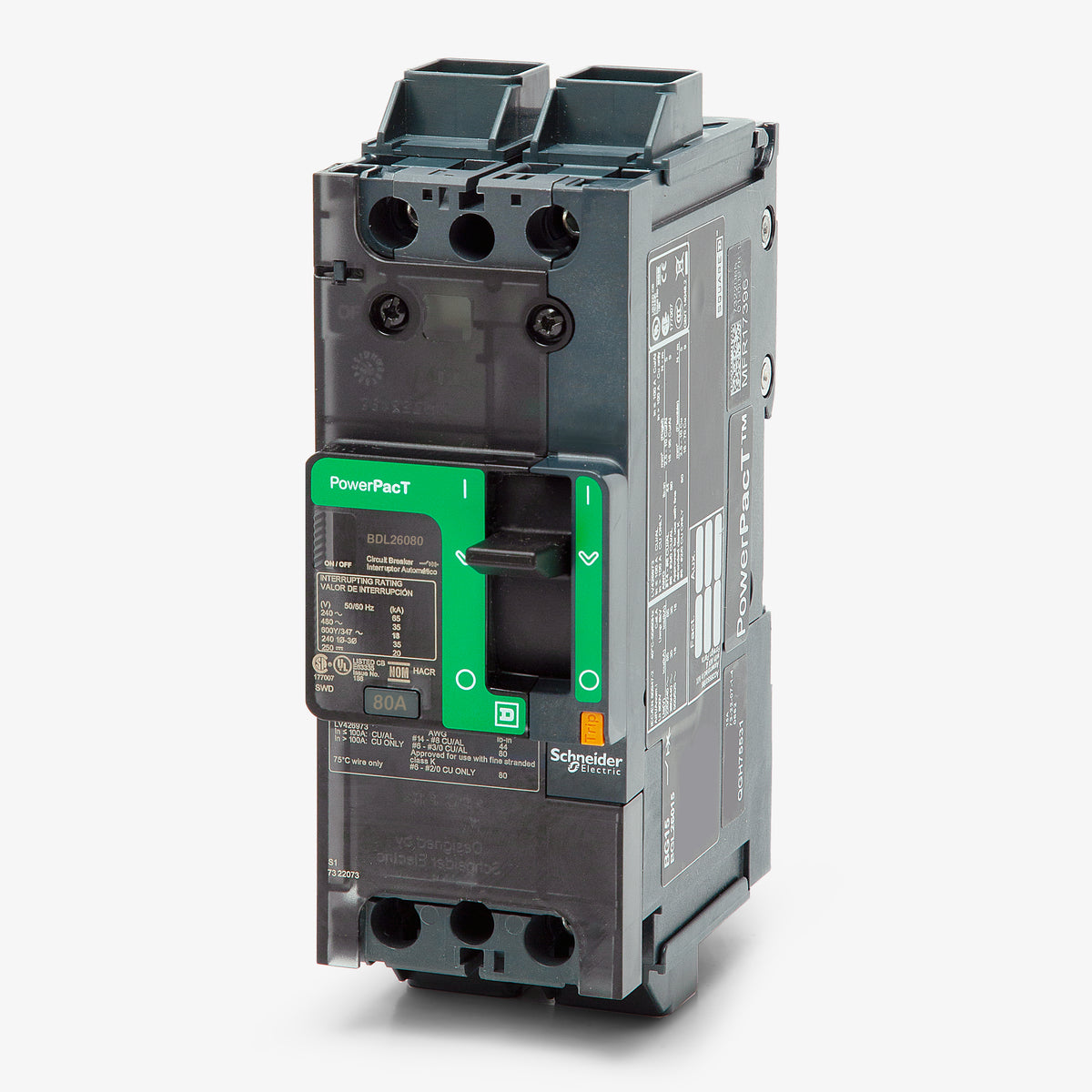

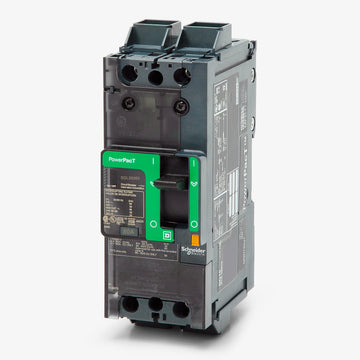

Square D BDL26080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty applications, the BDL26080 is an 80-amp, two-pole molded case circuit breaker from the Square D PowerPacT B-Frame series. It provides essential current-limiting protection for industrial control panels and motor centers. This versatile unit-mount breaker accommodates both DIN rail and traditional backpan installations. It is the official manufacturer cross-reference for replacing obsolete FAL26080 units.Specifications
| Brand | Square D |
|---|---|
| Part Number | BDL26080 |
| Series | BDL |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 14kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, PowerPacT B Enclosures, Electrical Distribution Equipment |
| Wire Gauge | 14 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Terminal Shields, Padlock Attachment |
|---|---|
| Accessories | EverLink Lugs |
| Standards | CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB 1, NMX J-266, UL 489 |
| Approval | CCC, CE, CSA, EAC, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
Product FAQs
8 answersWhat type of mounting does the BDL26080 circuit breaker use?

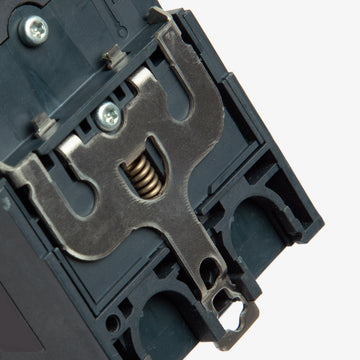

The L in the BDL26080 catalog number indicates it is a unit-mount breaker with lugs on both the line and load ends. It is designed for back-pan installation and also features integrated DIN rail mounting capabilities.
Can the BDL26080 be used to replace older Square D F-frame breakers?
Yes, the PowerPacT B-frame BDL26080 is the official manufacturer cross-reference for replacing obsolete 80-amp, 2-pole FAL26080 circuit breakers. It is designed to the same 1.5-inch per pole width as the legacy F-frame to simplify substitution.
What type of lugs are included with this PowerPacT B-frame breaker?

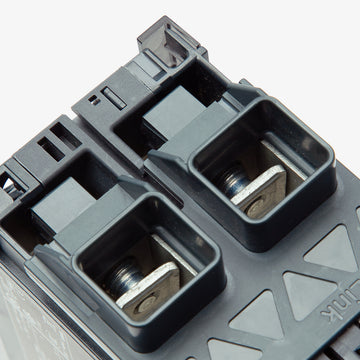

This breaker comes equipped with patented EverLink mechanical lugs. These lugs are designed to combat cable creep, compensate for wire strand deformation, and maintain a secure connection over time.
What does the D in the BDL26080 catalog number indicate?
In the PowerPacT B-frame nomenclature, the D signifies the interrupting rating tier. For this breaker, it indicates a maximum interrupting capacity of 18kA at 480VAC and 25kA at 240VAC.
Is the BDL26080 suitable for reverse feeding?
Yes, standard unit-mount PowerPacT B-frame circuit breakers feature sealed thermal-magnetic trip units and are fully capable of being reverse fed without any reduction in performance.
Can I install the BDL26080 in an I-Line panelboard?
No, the BDL26080 is a unit-mount breaker with lugs on both ends. For I-Line panelboards, you would need a BDA or BGA series breaker, which features the required plug-on I-Line connections on the line side.
How does the BDL26080 handle short-circuit faults?
PowerPacT B-frame breakers are equipped with dual-break rotating contacts. This design rapidly repels the contacts during a short circuit, significantly reducing peak let-through currents and enhancing overall equipment protection.
Is this breaker rated for use in DC electrical systems?
Yes, the BDL26080 is rated for DC applications up to 250VDC, with a maximum interrupting capacity of 10kA at that voltage.
