Square D EJB24080 Miniature Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Square D
EJB24080
Miniature Circuit Breaker
Brand
Square D
SKU
EJB24080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

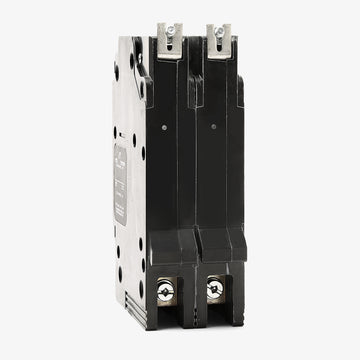

Square D EJB24080 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the EJB24080 is an 80A, 2-pole miniature circuit breaker. This E-Frame device utilizes fixed thermal-magnetic trip technology to safeguard electrical systems. The breaker mounts into Square D NF panelboards via a reliable bolt-on connection. It includes standard aluminum lugs that accommodate 14-2/0 AWG copper wiring. Rated for 65 kAIC at 480Y/277VAC, it handles demanding fault currents and features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB24080 |
| Series | EJB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat type of panelboard is the Square D EJB24080 designed for?
This bolt-on miniature circuit breaker is specifically designed for use in Square D NF series panelboards. It is not compatible with NQ or QO load centers.
What is the difference between the EJB24080, EGB24080, and EDB24080?
These are all 80A, 2-pole E-frame breakers for NF panelboards, but they have different interrupting ratings at 480Y/277VAC. The EDB24080 is rated for 18kAIC, the EGB24080 for 35kAIC, and the EJB24080 is the highest tier at 65kAIC.
What wire sizes are accepted by the lugs on the EJB24080?
The factory-installed AL100FD lugs accept 14 to 2/0 AWG copper wire, or 12 to 2/0 AWG aluminum wire.
Does the EJB24080 mount on a standard DIN rail?
No. The EJB24080 is a bolt-on circuit breaker that mounts directly to the busbar of a Square D NF panelboard.
Can I use the EJB24080 on a 120/240VAC system?
Yes. While it has a maximum voltage rating of 480Y/277VAC, it is fully rated for 120/240VAC systems, where it provides an increased interrupting rating of 100kAIC.
Can I install this breaker in a Square D I-Line panelboard?
No. E-frame breakers like the EJB24080 are designed exclusively for NF panelboards. I-Line panelboards require I-Line specific breakers with plug-on jaw connections.
