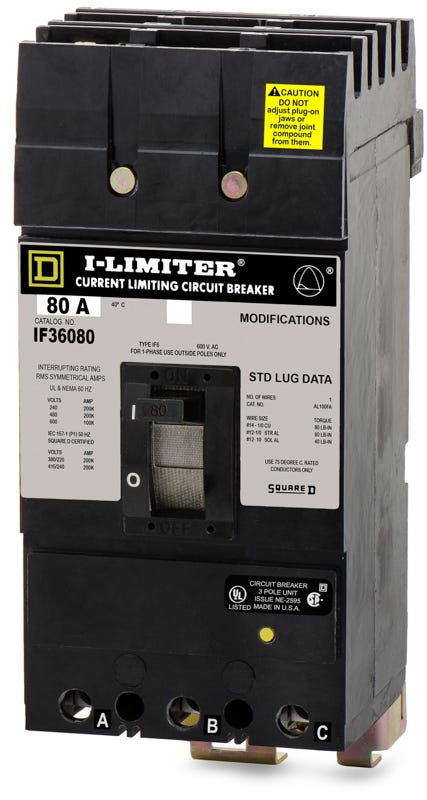

Square D IF36080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- I-Line
Square D
IF36080
Molded Case Circuit Breaker
Brand
Square D
SKU
IF36080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D IF36080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
100A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy I-Limiter family, this 80-amp molded case circuit breaker provides exceptional current-limiting capabilities for commercial and industrial facilities. It mounts seamlessly into Square D I-Line panelboards, offering a reliable solution before transitioning to the newer HRA36080 PowerPact series. Rated for an impressive 200 kAIC at 480VAC, the thermal-magnetic trip unit ensures rapid clearing of severe short circuits while maintaining standard long-time overload protection.Specifications
| Brand | Square D |
|---|---|
| Part Number | IF36080-R |
| Series | IF |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip, Trip-Free Mechanism |
| Special Features | Current Limiting |
Product FAQs
6 answersWhich panelboards accept the IF36080 circuit breaker?
This breaker is specifically designed for Square D I-Line panelboards and switchboards. It utilizes a plug-on jaw assembly for the line-side busbar connection, allowing for quick and secure installation directly to the bus stack.
Can I use the IF36080 in a standard QO or Homeline load center?
No, this is an I-Line style plug-on breaker designed exclusively for industrial I-Line panelboards and switchboards. It is not compatible with residential QO or Homeline load centers.
How does the current-limiting feature of the IF36080 benefit my electrical system?
As part of the Square D I-Limiter family, this breaker clears severe short circuits in a fraction of a cycle. By limiting the peak let-through current and energy, it reduces thermal and magnetic stress on downstream equipment, providing superior protection in high fault current environments.
Is the IF36080 still manufactured, or is there a newer replacement?
The IF36080 is a legacy, discontinued breaker. For new installations or direct upgrades in I-Line panelboards, the modern equivalent is the Square D PowerPact H-Frame series, specifically catalog number HRA36080.
What are the load-side wiring requirements for this breaker?
The factory-installed mechanical lugs are dual-rated for both copper and aluminum conductors. They accept copper wire from 14 AWG to 1/0 AWG and aluminum wire from 12 AWG to 1/0 AWG. Always torque the lugs to the specifications printed on the breaker faceplate to ensure a safe connection.
Does the IF36080 provide adjustable trip settings?
No, this breaker features a fixed thermal-magnetic trip unit. Both the Long-Time (overload) and Instantaneous (short circuit) trip functions are factory-set and cannot be adjusted in the field.
