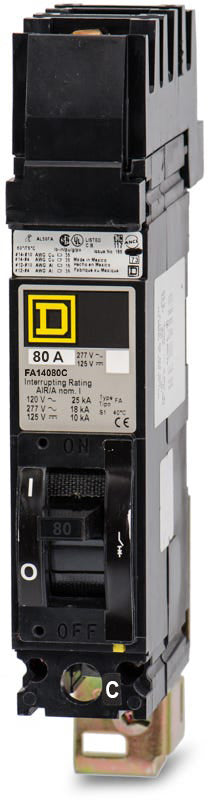

Square D FA14080A Molded Case Circuit Breaker
- 80A
- 1 Pole
- I-Line
Square D
FA14080A
Molded Case Circuit Breaker
Brand
Square D
SKU
FA14080A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA14080A - 80A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
60A 1 Pole Molded Case Circuit Breaker
Description
The Square D FA14080A is an 80A molded case circuit breaker from the legacy F-Frame series. It provides long-time and instantaneous (LI) thermal-magnetic protection for commercial systems. Featuring Phase A jaws, this breaker installs into Square D I-Line panelboards. For modern upgrades, this unit is replaced by the PowerPacT B-Frame BDA140801. Rated at 18 kAIC at 277VAC, it ensures robust fault clearing. It also includes a Visi-Trip indicator for rapid identification of tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA14080A |
| Series | FA |
| Amperage | 80A |
| Poles | 1 |
| Mounting Style | I-Line |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 18kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat does the "A" suffix in the FA14080A catalog number indicate?
The "A" suffix indicates that this 1-pole breaker is configured to connect specifically to the A-phase jaw of a Square D I-Line panelboard bus.
Is the Square D FA14080A still in active production, or is there a direct replacement?
The FA frame is a legacy molded case circuit breaker. For modern upgrades or replacements, Square D recommends the PowerPacT B-Frame series, specifically the BDA140801, which also features an I-Line plug-on connection.
What wire sizes and materials are compatible with the load-side lugs on the FA14080A?
The factory-installed load-side lugs are dual-rated for both copper and aluminum conductors. They accept copper wire from 14 AWG to 1/0 AWG, and aluminum wire from 12 AWG to 1/0 AWG.
Can the FA14080A be used in DC voltage applications?
Yes, in addition to its standard AC ratings, this thermal-magnetic breaker is rated for 125VDC applications with an interrupting capacity of 10 kAIC, making it suitable for specific control or battery circuits.
Which panelboards are designed to accept the FA14080A circuit breaker?
This breaker features an I-Line style plug-in connection on the line side and is exclusively designed for use with Square D I-Line panelboards and switchboards. It cannot be used in standard load centers or NQ/NF panels.
What type of trip unit is installed in the FA14080A?
It features a fixed thermal-magnetic trip unit that provides both long-time and instantaneous (LI) overcurrent protection. The thermal and magnetic trip points are factory-fixed and non-adjustable.
