Square D FA22090AB Molded Case Circuit Breaker
- 90A
- 2 Pole
- I-Line
Square D
FA22090AB
Molded Case Circuit Breaker
Brand
Square D
SKU
FA22090AB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

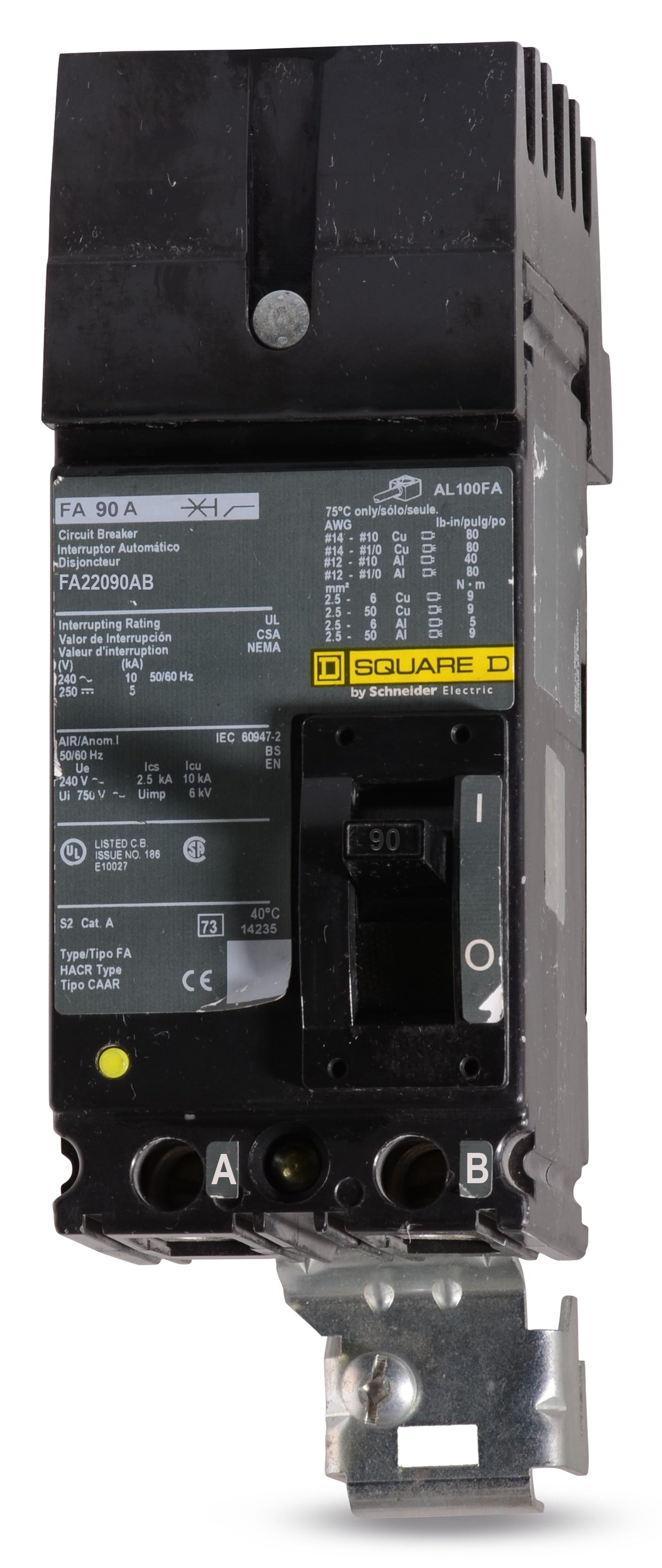

Square D FA22090AB - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Square D FA22090AB - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA22090AB |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AB |
Sold out
Quantity
Square D FA22090AB - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA22090AB-R |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AB |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D FA22090AB is a 2-pole, 90A molded case circuit breaker. It provides dependable long-time and instantaneous (LI) trip functions to protect infrastructure from overloads. This F-Frame breaker utilizes an I-Line plug-on mounting style with a phase AB connection, installing seamlessly into Square D I-Line panelboards. It is replaced by the BDA240901 model. Rated 10kAIC at 240VAC, it features a Visi-Trip indicator and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA22090AB-R |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Phase Connection AB |
Product FAQs
8 answersWhat panelboards accept the Square D FA22090AB circuit breaker?
This breaker is specifically designed to plug directly into Square D I-Line panelboards and switchboards. It is not compatible with standard QO or NQ panels.
What does the AB suffix indicate on the FA22090AB catalog number?
The AB suffix specifies the phase connection. It means the breaker is factory-configured to connect to the A and B phases on the I-Line bus system.
What is the modern replacement for the obsolete FA22090AB?
The legacy FA frame has been discontinued by Schneider Electric. The direct modern replacement for this 240V, 90A I-Line breaker is the PowerPact B-frame series, specifically the BDA240901 model.
How is the FA22090AB installed into an electrical panel?
It features an I-Line plug-on design that connects directly to the panelboard bus on the line side, eliminating the need for bolt-on hardware. The load side utilizes standard mechanical lugs for wire connections.
Does the FA22090AB provide adjustable trip settings?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time thermal protection and the instantaneous magnetic protection are factory set and cannot be adjusted in the field.
Is the FA22090AB rated for direct current applications?
Yes, in addition to its 240V AC rating, this breaker is rated for use in 250V DC systems, where it provides a 5kA interrupting capacity.
What type of protection does the FA22090AB offer?
It utilizes a thermal-magnetic trip mechanism that provides dual-mode protection. The thermal element guards against sustained overloads, while the magnetic element responds immediately to short circuits.
Is the FA22090AB suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires dedicated overcurrent protection.
