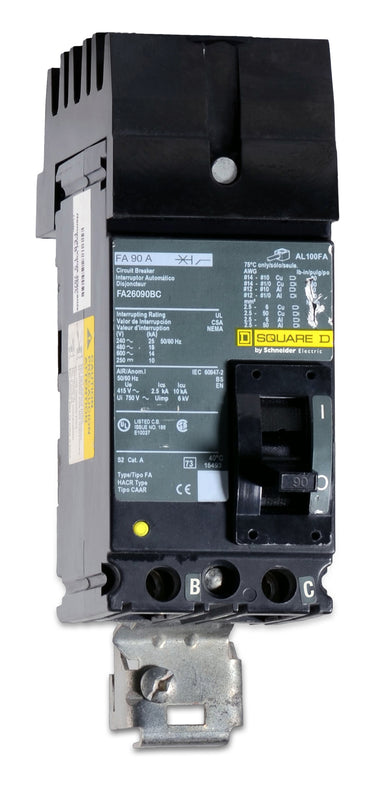

Square D FA26090BC Molded Case Circuit Breaker
- 90A
- 2 Pole
- I-Line
Square D
FA26090BC
Molded Case Circuit Breaker
Brand
Square D
SKU
FA26090BC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA26090BC - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D FA26090BC - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26090BC |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase Connection B-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D FA26090BC - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA26090BC-R |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase Connection B-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
90A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the FA26090BC is a 2-pole, 90A molded case circuit breaker with a B-C phase connection. It utilizes thermal-magnetic trip technology to safeguard electrical systems against overloads and short circuits. The breaker installs into Square D I-Line panelboards and switchboards. If a newer alternative is required, it crosses over to the PowerPact HDA260903. It features an 18 kAIC rating at 480VAC, HACR certification, and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA26090BC |
| Series | FA |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Phase Connection B-C (Factory Configured) |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat is the modern replacement for the Square D FA26090BC?
The FA26090BC is a legacy F-frame breaker. Its direct modern equivalent is the Square D PowerPact H-frame HDA260904. The PowerPact replacement maintains the 90A rating, 2-pole configuration, and BC phase connection for I-Line panelboards.
What does the BC suffix indicate on this circuit breaker?
The BC designates the specific phase connection for the I-Line bus. This 2-pole breaker is factory-configured to connect to the B and C phases in your panelboard or switchboard.
How does the FA26090BC mount into the panel?
It utilizes an I-Line style plug-in connection, which allows the line side of the breaker to plug directly into the busbar of an I-Line panelboard. The load side features standard mechanical lugs for wire termination.
Can the FA26090BC be installed in standard residential load centers?
No. This is an industrial F-frame molded case circuit breaker with an I-Line plug-in mounting style. It is exclusively compatible with Square D I-Line panelboards and switchboards, and will not fit in QO or Homeline residential panels.
Is the FA26090BC suitable for direct current (DC) systems?
Yes. While commonly used in AC systems up to 600VAC, this thermal-magnetic breaker is also rated for 250VDC applications, providing a 10kA interrupting capacity for DC circuits.
Are the trip settings on the FA26090BC adjustable?
No. This breaker utilizes a fixed thermal and fixed magnetic trip unit. It delivers standard long-time and instantaneous (LI) overcurrent protection, but the trip thresholds cannot be adjusted in the field.
What wire sizes are compatible with the FA26090BC lugs?
The standard factory lugs accept 14 AWG to 1/0 AWG copper wire, or 12 AWG to 1/0 AWG aluminum wire. Always verify that your conductors are sized appropriately for the 90A rating and torque the lugs to the manufacturer specifications.
