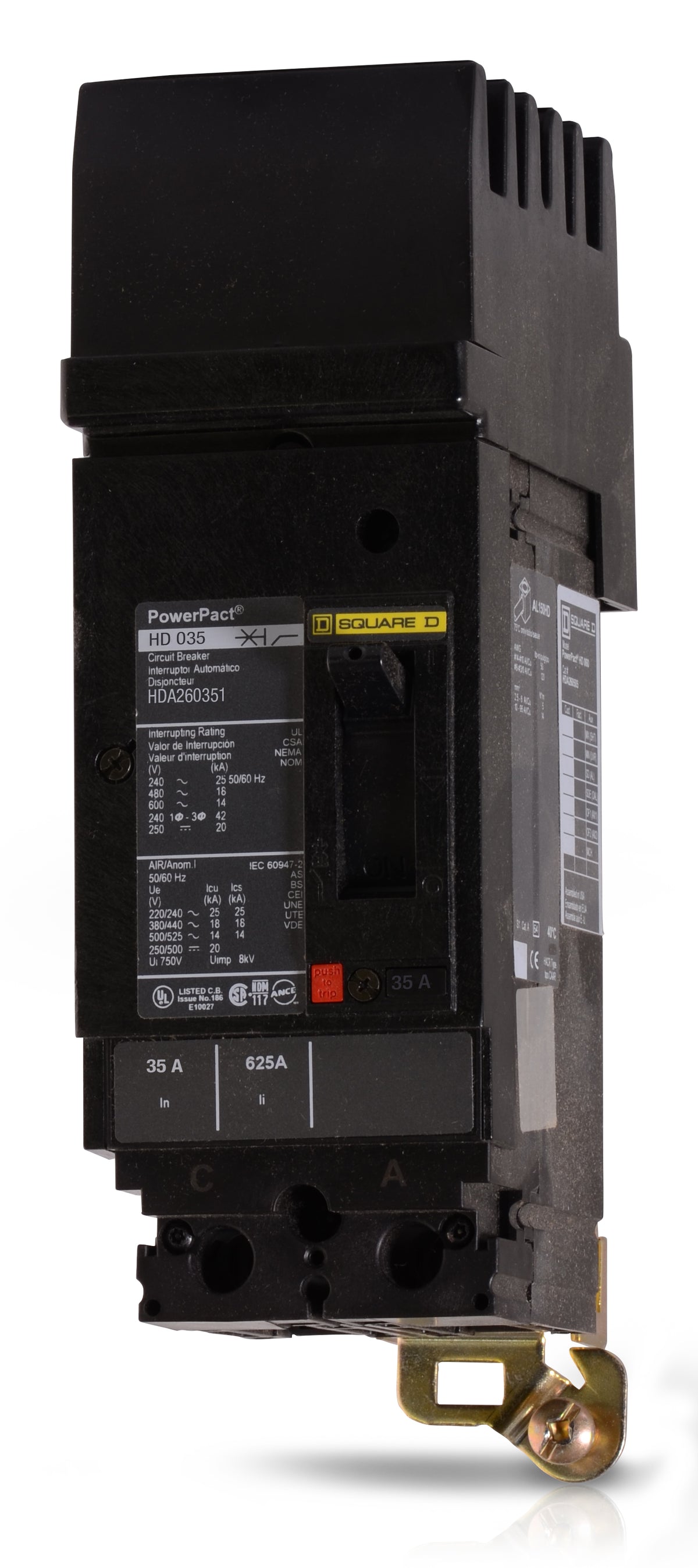

Square D HDA260351 Molded Case Circuit Breaker
- 35A
- 2 Pole
- I-Line
Square D
HDA260351
Molded Case Circuit Breaker
Brand
Square D
SKU
HDA260351
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HDA260351 - 35A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Designed to handle demanding industrial loads, this 35A thermal-magnetic breaker delivers reliable LI protection within Square D power distribution systems. The unit mounts into I-Line panelboards using a dedicated AB phase connection. It serves as an exact cross-reference for the discontinued FA26035AB, ensuring seamless facility maintenance. With a 25kAIC capacity at 240V and built-in Visi-Trip indication, it simplifies troubleshooting and enhances system safety.Specifications
| Brand | Square D |
|---|---|
| Part Number | HDA260351 |
| Series | HDA |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhat type of panelboards accept the HDA260351 breaker?
This breaker mounts exclusively into Square D I-Line panelboards and switchboards. It utilizes a plug-on design specific to the I-Line bussing system and is not compatible with NQ, NF, or QO load centers.
What does the trailing 1 in the HDA260351 catalog number mean?
The 1 signifies that this 2-pole breaker is factory-configured for an A-B phase connection on the I-Line bus.
What are the lug torque requirements for this breaker?
For the standard AL150HD lugs, tighten 14 to 10 AWG wire to 44 lb-in (5 N.m). For larger 8 to 3/0 AWG wire, tighten to 124 lb-in (14 N.m). Always use properly stripped aluminum or copper conductors.
Which obsolete Square D breaker does the HDA260351 replace?
This PowerPacT H-frame breaker is the direct manufacturer replacement for the discontinued F-frame FA26035AB circuit breaker.
Are the thermal and magnetic trip settings adjustable on this model?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection parameters are factory-set and cannot be modified in the field.
