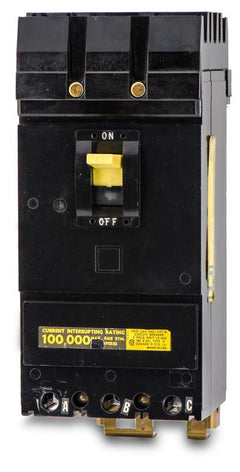

Square D IF36040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- I-Line
Square D
IF36040
Molded Case Circuit Breaker
Brand
Square D
SKU
IF36040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

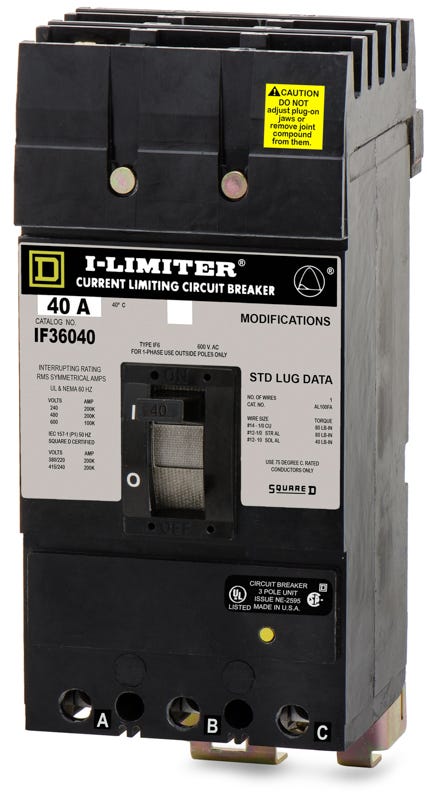

Square D IF36040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
The Square D IF36040 operates as a 3-pole, 40A molded case circuit breaker tailored for demanding commercial systems. Featuring reliable thermal-magnetic trip technology, this I-Limiter device provides essential protection against overloads and short circuits. Equipped with I-Line style plug-on connectors, it mounts effortlessly into compatible Square D panelboards. With an impressive interrupting capacity of 200 kAIC at 480VAC, it excels at restricting let-through current during severe faults.Specifications
| Brand | Square D |
|---|---|
| Part Number | IF36040-R |
| Series | IF |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Frame Type | IF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Common Trip |
| Special Features | Current Limiting |
Product FAQs
6 answersWhat type of panelboards are compatible with the Square D IF36040?
The IF36040 is designed exclusively for use in Square D I-Line panelboards. It features an I-Line style plug-in connection that mounts directly onto the panelboard bus assembly.
What does the current limiting designation mean for the IF36040?
As an I-Limiter circuit breaker, the IF36040 is engineered to clear faults extremely fast. This rapid response reduces the let-through energy during a short circuit, allowing it to achieve a high interrupting rating of 200kAIC at 480V.
What wire sizes and materials are compatible with the IF36040 terminals?
The factory lugs on the IF36040 accept both copper and aluminum conductors. For copper wire, the acceptable range is 14 AWG to 1/0 AWG. For aluminum wire, the range is 12 AWG to 1/0 AWG.
What type of trip unit is installed in the IF36040?
This breaker features a fixed thermal-magnetic trip unit with Long-Time and Instantaneous (LI) trip functions. Both the thermal and magnetic trip points are fixed and cannot be adjusted in the field.
How does the I-Line plug-in connection work on the IF36040?
The I-Line mounting style uses a plug-on jaw mechanism that engages directly with the I-Line bus stack in the panelboard. This design allows for faster installation and eliminates the need for individual cable connections to the bus.
Does the IF36040 provide ground fault protection?
No. The IF36040 is equipped with standard Long-Time and Instantaneous (LI) trip functions. It does not include integral equipment ground fault protection.
