Square D JGL26175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
Square D
JGL26175
Molded Case Circuit Breaker
Brand
Square D
SKU
JGL26175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

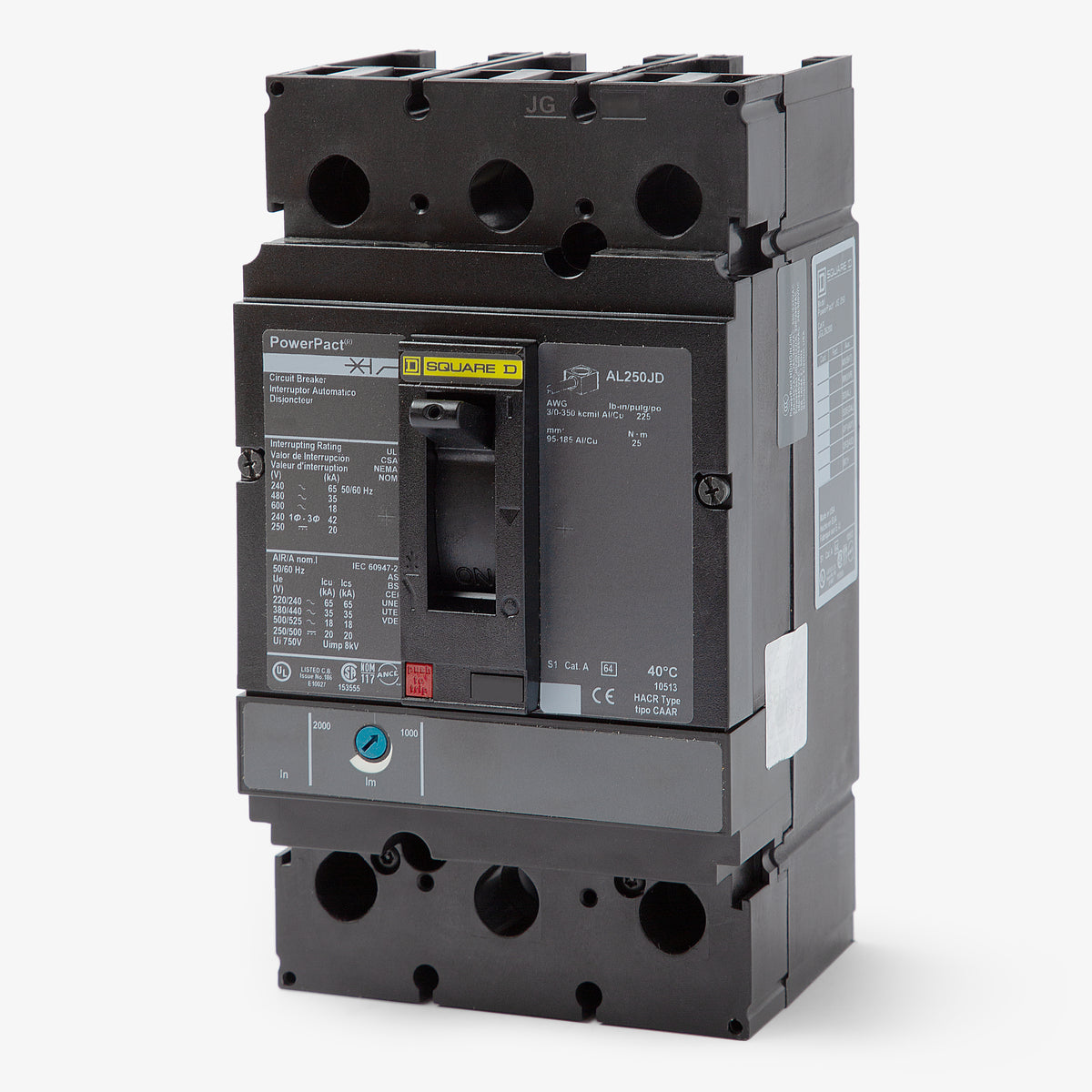

Square D JGL26175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
225A 2 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D JGL26175 is a 2-pole, 175A molded case circuit breaker from the PowerPacT J-Frame family. This unit mount breaker installs into Square D J-Frame enclosures, motor control centers, and switchboards, accepting 4 AWG to 4/0 AWG wire via AL175JD lugs. Equipped with a thermal-magnetic trip unit, it provides long-time and instantaneous (LI) protection with an adjustable magnetic trip. Rated 65kA at 240VAC, it includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | JGL26175 |
| Series | JGL |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D J-Frame Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs (AL175JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Visual Trip Indicator, 80% Rated |
Product FAQs
7 answersWhat type of enclosures or panels accept the JGL26175?
As a unit-mount, feed-thru breaker, it is designed for installation in Square D J-Frame enclosures, standard switchboards, motor control centers, and industrial control panels. It is not compatible with I-Line panelboards.
Can I use the JGL26175 in an I-Line panelboard?
No. The JGL26175 is a unit-mount breaker with line and load lugs. For an I-Line panelboard, you need the I-Line version, catalog number JGA26175.
What is the recommended lug torque for the JGL26175 circuit breaker?

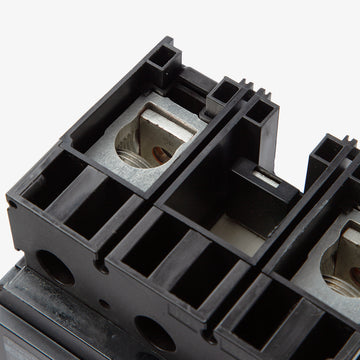

The standard AL175JD lugs on this 175A breaker require a tightening torque of 225 lb-in (25 N.m) using a 5/16-inch hex bit.
What is the adjustable magnetic trip range for this 175A J-Frame breaker?

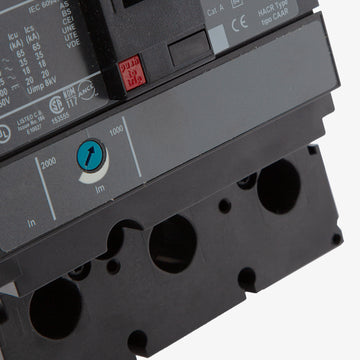

The instantaneous magnetic trip dial on the front of the breaker can be adjusted from a low setting of 875A to a high setting of 1750A.
What lug kit comes standard with the JGL26175?
It comes standard with the AL175JD lug kit on both the line and load sides, which accepts 4 AWG to 4/0 AWG aluminum or copper wire.
Is the JGL26175 rated for 80 percent or 100 percent continuous current?
This breaker is standard-rated for 80 percent continuous current.
Does the JGL26175 feature a visual trip indicator?
Yes, PowerPacT J-Frame breakers include a Visi-Trip indicator and an integral push-to-trip button in the cover to manually trip and test the circuit breaker mechanism.
