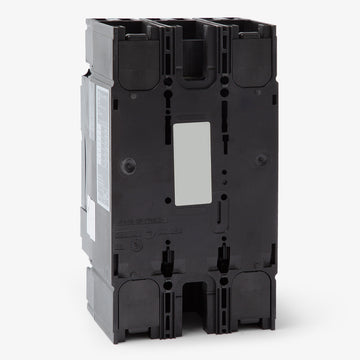

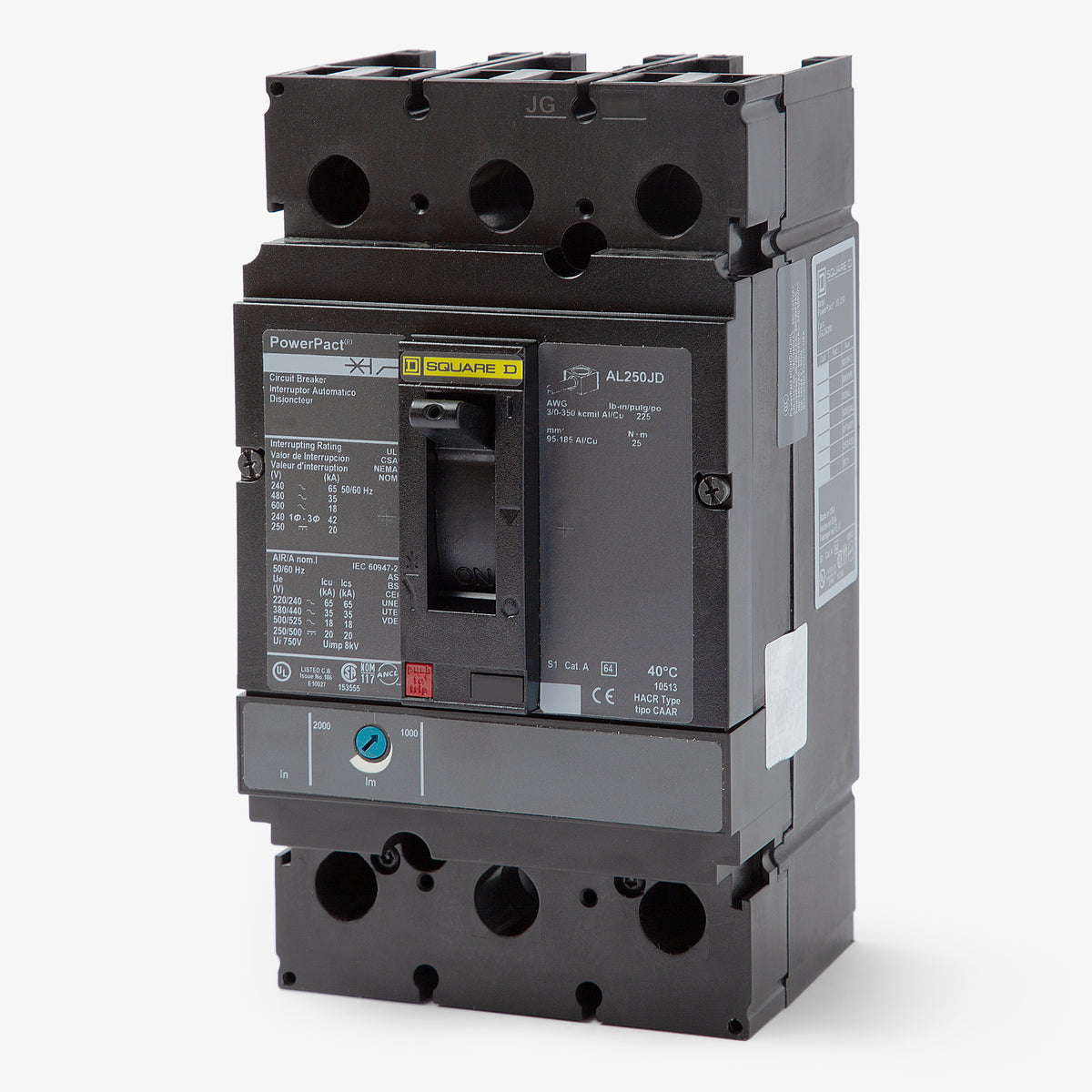

Square D JGL26200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Square D
JGL26200
Molded Case Circuit Breaker
Brand
Square D
SKU
JGL26200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D JGL26200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D JGL26200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | JGL26200 |
| Series | JGL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator, 2-Pole in 3-Pole Housing |
Sold out
Quantity
Square D JGL26200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | JGL26200 |
| Series | JGL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator, 2-Pole in 3-Pole Housing |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Delivering 200A of continuous current, the Square D JGL26200 is a 2-pole PowerPacT J-Frame molded case circuit breaker. It is built for commercial and industrial power distribution. The unit mount design fits seamlessly into Square D NF panelboards, switchboards, and industrial enclosures, utilizing AL250JD lugs for 3/0 AWG to 350 kcmil wire. It features a thermal-magnetic trip unit with adjustable magnetic settings and provides 65kA interrupting capacity at 240VAC alongside a Visi-Trip flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | JGL26200 |
| Series | JGL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | JGL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards, Switchboards, Motor Control Centers, Industrial Enclosures |
| Wire Gauge | 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Lugs (AL250JD) |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Visual Trip Indicator, 2-Pole in 3-Pole Housing |
Product FAQs
10 answersWhat enclosures and panelboards are compatible with the JGL26200?
This unit-mount breaker is designed for use in Square D NF panelboards, switchboards, motor control centers, and industrial enclosures.
Can the JGL26200 be mounted on a DIN rail?
Yes, while it comes standard as a unit-mount breaker, it can be adapted for DIN rail mounting using a separate accessory.
What type of lugs are included with the JGL26200?

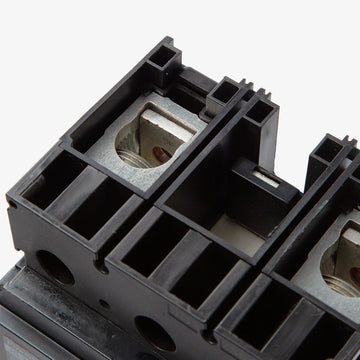

It comes standard with AL250JD line and load lugs, which accept 3/0 AWG to 350 kcmil aluminum or copper wire.
Does this breaker include a trip indicator?
Yes, PowerPacT J-frame breakers feature a Visi-Trip flag that provides a clear visual indication when the breaker has tripped.
Can the JGL26200 be reverse fed?
Yes, this thermal-magnetic PowerPacT J-frame circuit breaker features a factory-sealed trip unit that is suitable for reverse connection.
What field-installable accessories can be added to the JGL26200?
This breaker accepts a variety of internal accessories, including auxiliary switches, alarm switches, and shunt trips, which can be installed in the field.
What is the magnetic trip range for the JGL26200?

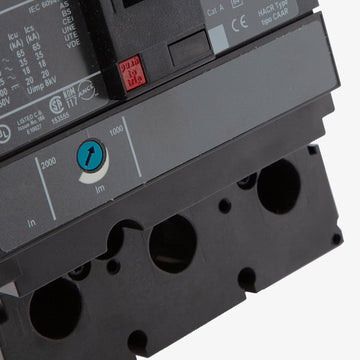

The thermal-magnetic trip unit features a fixed thermal setting and an adjustable magnetic trip range of 1000A to 2000A.
What does the "G" in the JGL26200 part number indicate?
The "G" designates the interrupting rating, which provides 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC.
What is the difference between the JGL26200 and the JDL26200?
The JGL26200 has a higher "G" interrupting rating (65kA at 240VAC), whereas the JDL26200 features a standard "D" interrupting rating (25kA at 240VAC).
What is the difference between the JGL26200 and the JGA26200?
The JGL26200 is a unit-mount breaker with line and load lugs, while the JGA26200 is an I-Line breaker designed to plug directly into Square D I-Line panelboards.
