Square D KAL26225 Molded Case Circuit Breaker
- 225A
- 2 Pole
- Unit Mount
Square D
KAL26225
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL26225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

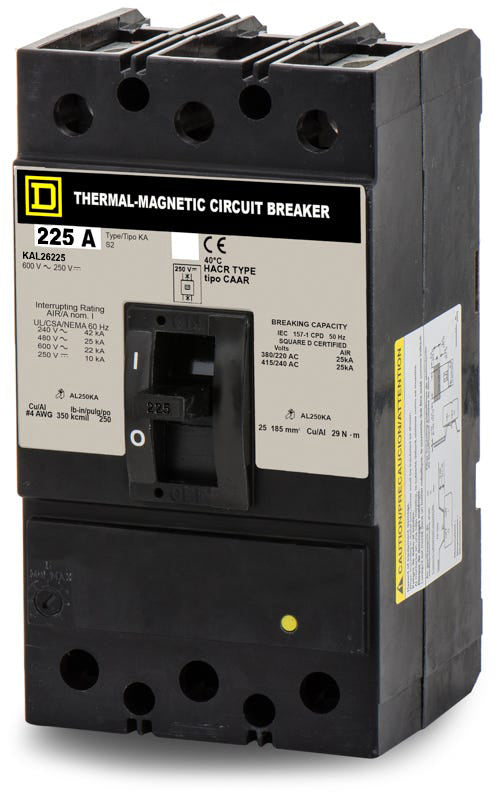

Square D KAL26225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D KAL26225 - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | KAL26225 |
| Series | KAL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Enclosures, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D KAL26225 - 225A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | KAL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Enclosures, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
225A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
The KAL26225 is a 2-pole, 225A molded case circuit breaker from Square D's legacy K-Frame family. It provides dependable long-time and instantaneous (LI) thermal-magnetic protection for commercial and industrial electrical systems. Designed for unit mount configurations, it installs into Square D switchboards and motor control centers. For modern upgrades, it is replaced by the PowerPact J-Frame JJL26225. Delivering 42kAIC at 240V, this HACR-rated breaker features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL26225 |
| Series | KAL |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Enclosures, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWill the KAL26225 fit in an I-Line panelboard?
No, the KAL26225 is a unit-mount, feed-thru circuit breaker designed for traditional switchboards, enclosures, and motor control centers. It does not have the plug-on jaw connections required for Square D I-Line panelboards.
Can the KAL26225 be used in DC electrical systems?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with an interrupting capacity of 10kAIC. This makes it suitable for specific industrial DC control circuits or battery backup systems.
How does the adjustable magnetic trip work on the KAL26225?
The thermal-magnetic trip unit features a fixed thermal element for standard overload protection and an adjustable magnetic element. This allows electricians to fine-tune the instantaneous short-circuit trip threshold to coordinate with downstream devices and prevent nuisance tripping.
What wire sizes are accepted by the lugs on the KAL26225?
The factory lugs accept either aluminum or copper (Al/Cu) conductors ranging from 4 AWG to 350 kcmil. Ensure proper torque specifications are followed during installation to maintain a secure connection.
Is the Square D KAL26225 still actively manufactured?
The KAL series is a legacy K-Frame molded case circuit breaker. While no longer in active production, it remains widely used in existing installations and is often sourced as a direct drop-in replacement to avoid the need to retrofit older switchboards.
What safety precautions are required before installing this breaker?
Installation must be performed by a qualified electrical professional. Ensure all power to the switchboard or motor control center is completely de-energized, verify the absence of voltage with a properly rated meter, and follow standard lockout/tagout procedures before mounting or wiring.
