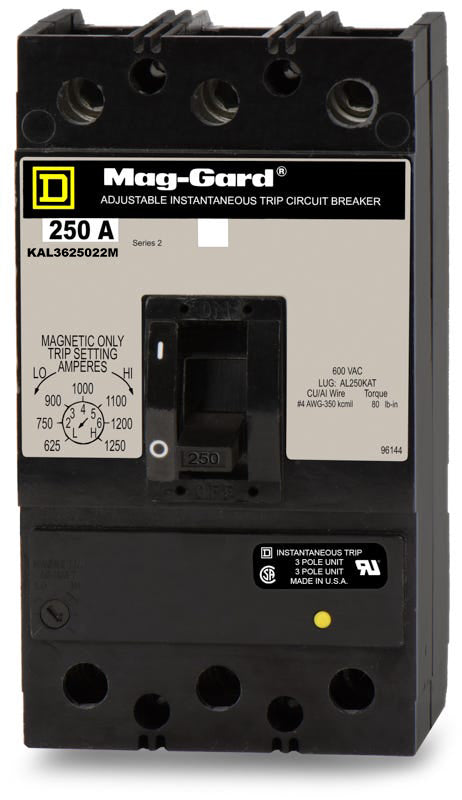

Square D KAL3625022M Motor Circuit Protector
- 250A
- 3 Pole
- Unit Mount
Square D
KAL3625022M
Motor Circuit Protector
Brand
Square D
SKU
KAL3625022M
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL3625022M - 250A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items
250A 3 Pole Motor Circuit Protector
250A 3 Pole Motor Circuit Protector
250A 3 Pole Motor Circuit Protector
Description
Part of the legacy K-Frame series, the Square D KAL3625022M is a dedicated motor circuit protector for industrial control applications. This unit-mount device installs into standard Square D enclosures and motor control centers. It serves as a direct replacement for existing setups, with the PowerPacT JJL36250M75 acting as its modern substitute. Rated for 250A at up to 600VAC, it features an adjustable magnetic trip range of 500-1000A and delivers a 25kAIC capacity at 480VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL3625022M |
| Series | KAL |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC |
| Amperage Range | 500-1000A |
|---|
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Motor Control Centers, Motor Starters, Square D Enclosures |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL250KA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
