Square D QGL22070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Square D
QGL22070
Molded Case Circuit Breaker
Brand
Square D
SKU
QGL22070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

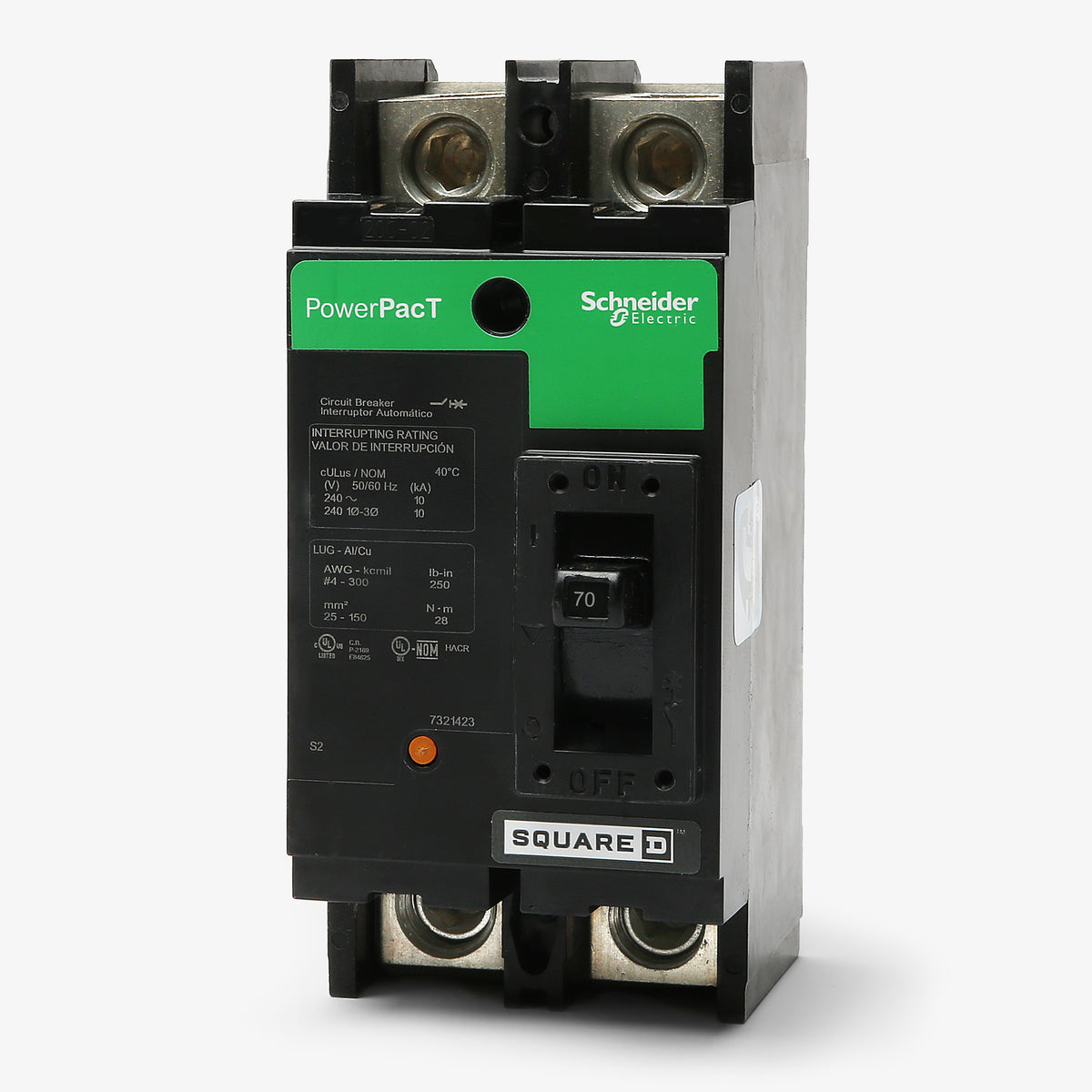

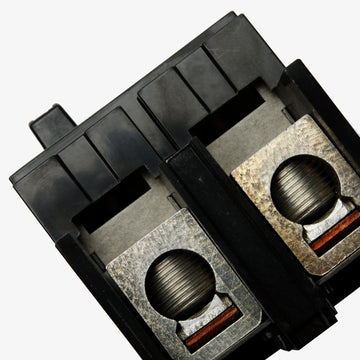

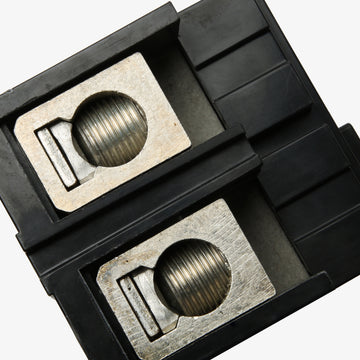

Square D QGL22070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
Description
Designed for versatile power distribution, this 70A PowerPacT Q-Frame breaker offers fixed thermal and magnetic trip functions. The unit mount configuration fastens into Square D individual enclosures, panelboards, and switchboards, replacing older Q22070 units. Delivering a high 65kAIC interrupting rating at 240VAC, the QGL22070 comes equipped with line and load lugs, making it ideal for demanding commercial environments.Specifications
| Brand | Square D |
|---|---|
| Series | QGL |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | G |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Product FAQs
8 answersWhat types of equipment can the QGL22070 be installed in?
The QGL22070 is a unit-mount PowerPacT Q-frame breaker designed for use in Square D individual enclosures, panelboards, and switchboards. It is not compatible with standard QO or Homeline load centers.
What is the recommended lug torque for the QGL22070?
The tightening torque for the factory-installed lugs on the QGL22070 is 248 lb-in (28 N.m). The lugs accept 4 AWG to 300 kcmil aluminum or copper wire.
Can the Square D QGL22070 be reverse fed?
Yes, this thermal-magnetic PowerPacT Q-frame breaker can be forward or reverse fed. It does not contain an electronic trip unit with directional power flow restrictions.
What is the difference between the QGL22070 and the QDL22070 or QJL22070?
The difference is the short-circuit interrupting rating. The QGL22070 is rated for 65kA at 240VAC, while the QDL22070 is rated for 25kA, and the QJL22070 is rated for 100kA. They share the same physical dimensions and mounting style.
Is the QGL22070 rated for use in DC electrical systems?
No, the QGL22070 is strictly rated for AC voltage (up to 240VAC). It does not carry a DC voltage rating.
Does the QGL22070 provide ground fault or equipment protection?
No, this is a standard thermal-magnetic circuit breaker providing overload and short-circuit protection. It does not include GFCI, AFCI, or EPD functionality.
Is the QGL22070 rated for 100 percent continuous operation?
Standard PowerPacT Q-frame breakers like the QGL22070 are rated for 80 percent continuous current. The continuous load should not exceed 56 amps, which is 80 percent of its 70A rating.
Can the trip settings on the QGL22070 be adjusted?
No, the QGL22070 features a fixed thermal and fixed magnetic trip unit. The trip settings cannot be adjusted in the field.
