Square D QJL22100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Square D
QJL22100
Molded Case Circuit Breaker
Brand
Square D
SKU
QJL22100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

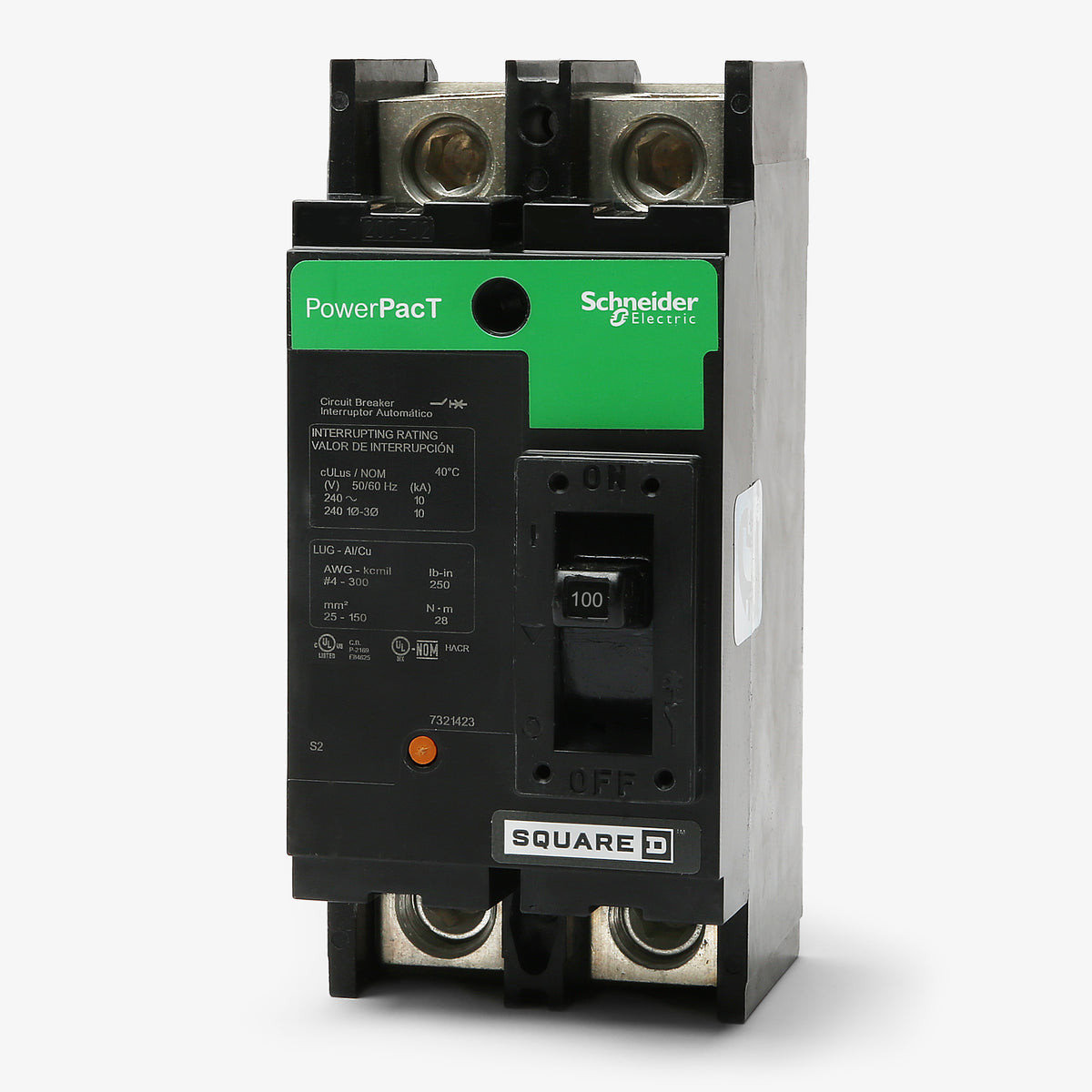

Square D QJL22100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Providing reliable overcurrent defense, the QJL22100 is a 100A molded case circuit breaker from the Square D PowerPacT Q-Frame family. This 2-pole device utilizes a unit-mount configuration with line and load lugs. It installs into Square D enclosures and replaces Q22100 and Q2L2100 breakers. Operating at 240VAC, it delivers a 100kAIC rating. The breaker features fixed thermal-magnetic (LI) trip functions and is HACR rated for HVAC equipment.Specifications
| Brand | Square D |
|---|---|
| Part Number | QJL22100 |
| Series | QJL |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC |
| Frame Type | QJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panels and enclosures are compatible with the QJL22100?
This PowerPacT Q-frame breaker is designed for use in Square D individual enclosures, switchboards, and panelboards that accept unit-mount Q-frame breakers.
How is the QJL22100 circuit breaker mounted?
The QJL22100 is a unit-mount circuit breaker. It installs using mounting screws and lug connections rather than plugging onto a busbar or using an I-Line connection.
What does the J in the QJL22100 part number indicate?
In the Square D PowerPacT Q-frame series, the J indicates the interrupting rating. The QJL series provides a 100kA interrupting capacity at 240V, which is the highest rating in the Q-frame family.
Can I use the QJL22100 to replace a QDL22100 or QGL22100?
Yes. The QJL22100 shares the exact same physical dimensions and mounting footprint as the QDL22100 and QGL22100. Upgrading to the QJL provides a higher interrupting rating of 100kA.
Can the QJL22100 be reverse fed?
Yes. Square D PowerPacT Q-frame thermal-magnetic circuit breakers, including the QJL22100, can be forward or reverse fed.
Does the QJL22100 have an adjustable trip unit?
No. This breaker features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous (LI) trip functions are factory set and non-adjustable.
