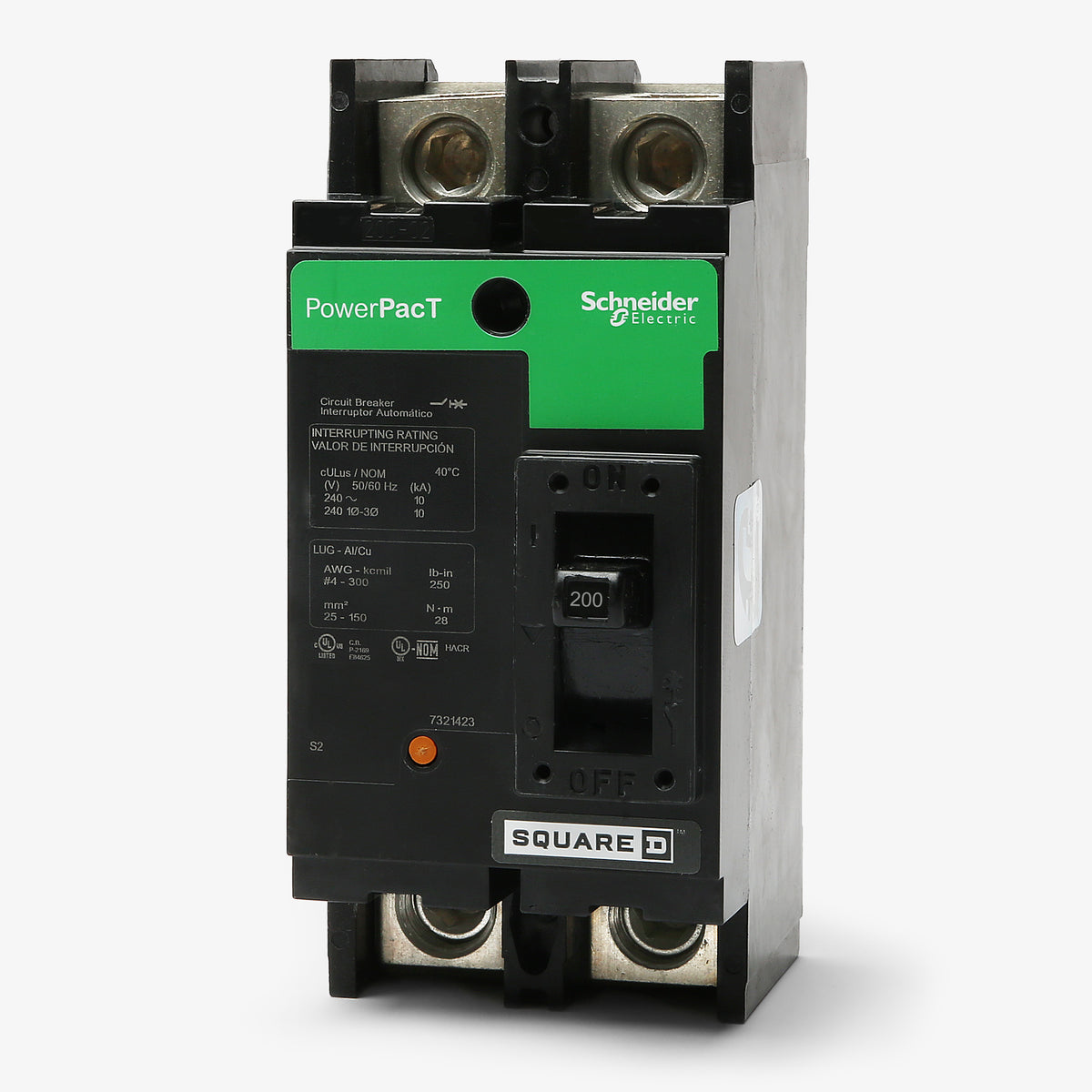

Square D QJL22200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Square D
QJL22200
Molded Case Circuit Breaker
Brand
Square D
SKU
QJL22200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QJL22200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
175A 2 Pole Molded Case Circuit Breaker
250A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Description
The QJL22200 belongs to the Square D PowerPact Q-Frame family, delivering reliable thermal-magnetic protection for commercial and industrial applications. This unit mount breaker installs into Square D individual enclosures and panelboards. It serves as a drop-in replacement for legacy Q22200 and Q2L2200 breakers. Rated for 100kAIC at 240VAC, this HACR-rated MCCB features fixed trip settings and includes factory-installed lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | QJL22200 |
| Series | QJL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 208Y/120VAC, 100kA @ 240VAC |
| Frame Type | QJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Individual Enclosures, Switchboards, Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs (Line and Load) |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures or panels are compatible with the QJL22200 circuit breaker?
As a unit mount Q-frame breaker, the QJL22200 is designed for use in Square D individual enclosures, metering devices, switchboards, and panelboards. It features lugs on both ends for cabled applications.
Can the QJL22200 be installed in an I-Line panelboard?
No, the QJL22200 is a unit mount breaker with feed-thru lugs on both ends. For I-Line panelboards, you need the I-Line group-mounted version, catalog number QJA22200.
What is the difference between Square D QJL, QGL, QDL, and QBL circuit breakers?
The third letter in the catalog number indicates the interrupting rating. The QJL has a 100kA rating at 240V AC. The QGL is rated for 65kA, the QDL for 25kA, and the QBL for 10kA. All share the same physical Q-frame footprint.
Can the QJL22200 replace older Square D Q2 series breakers?
Yes, PowerPacT Q-frame circuit breakers, including the QJL22200, are direct replacements for legacy Square D Q2 series devices.
Can the QJL22200 breaker be reverse fed?
Yes, Square D Q-frame thermal magnetic circuit breakers are suitable for both forward and reverse feeding applications.
What is the recommended lug torque for the QJL22200?

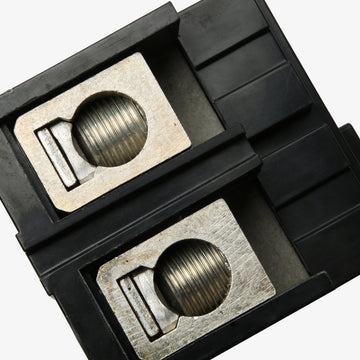

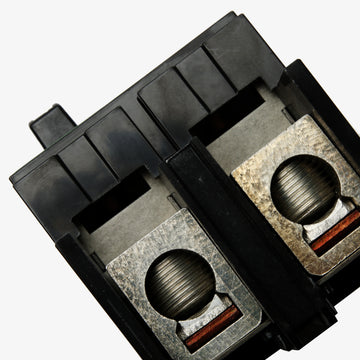

The box lugs on the QJL22200 should be torqued to 248 lb-in (28 N.m) when using 4 AWG to 300 kcmil aluminum or copper conductors.
