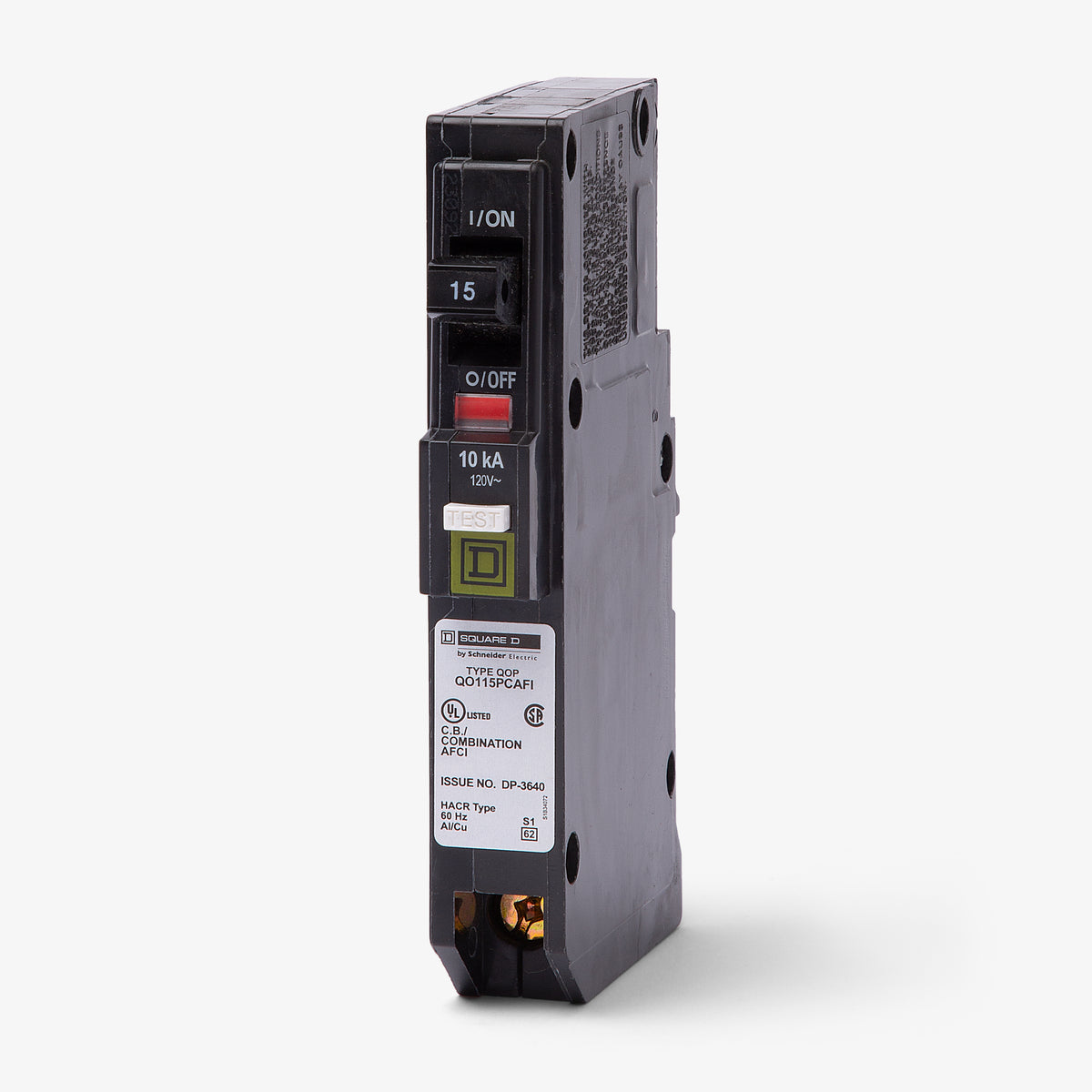

Square D QO115PCAFI 1 Pole Circuit Breaker Arc Fault
New
$47.38In stock
Quantity
Description
Square D QO115PCAFI 1 Pole Combination Arc Fault Circuit Breaker
The Square D QO115PCAFI is a 1 Pole molded case combination arc fault circuit breaker with a current rating of 15 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The QO115PCAFI has a plug-in connection type and includes long time and instantaneous trip functions.
Specifications
Brand
Square D
Series
QO
Amperage
15
Voltage
120VAC
Poles
1
Phase
1
Mounting Type
Plug-In
Approval
UL, CSA
Interrupting Rating
10kAIC at 120V
Frame Type
QO
Connection Type
Plug-In
Protection
Thermal Magnetic
Functions
LI - Long-Time and Instantaneous
Length (in)
2.91
Width (in)
0.75
Height (in)
4.76
Wire Gauge
AWG 14 to AWG 8, AWG 12 to AWG 8, Copper/Aluminum
For Use With
QO Plug-On Neutral Load Centers
Standards
HACR
Temperature Rating
40 °C
Circuit Breaker Type
CAFCI
Breaker Feature
Mercury Free
Actuator Type
Toggle
Max Wire Size
8 AWG
Min Wire Size
12 AWG, 14 AWG
Mpn
QO115PCAFI
Upc
785901062615
Gtin
785901062615
