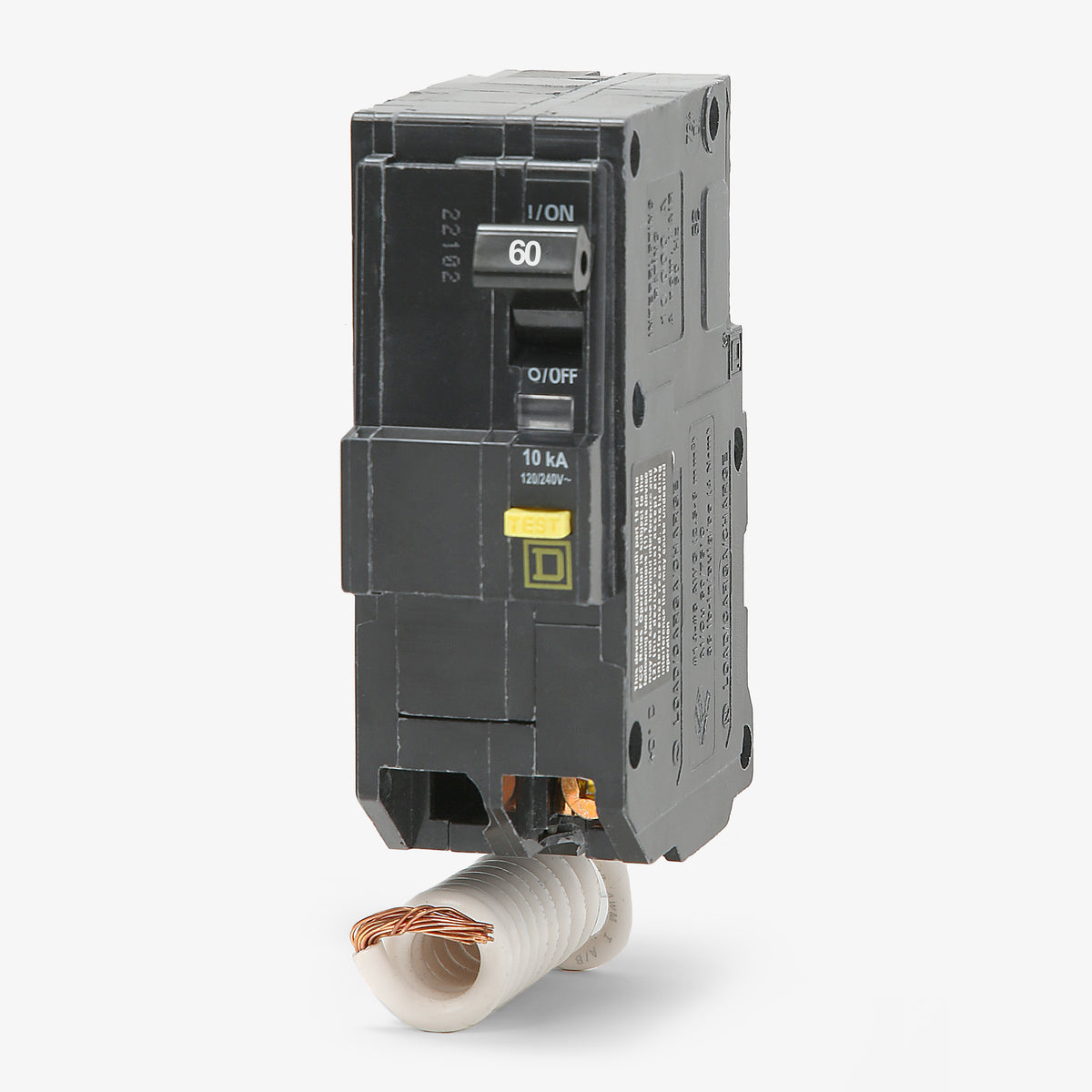

Square D QO260GFI GFCI Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Square D
QO260GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO260GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO260GFI - 60A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
45A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
Description
Built for QO load centers and NQ panelboards, this 60-amp plug-on breaker delivers Class A 6mA ground-fault protection. It features a pigtail neutral connection and the signature Visi-Trip indicator for rapid fault identification. Meeting NEC requirements for wet or damp locations, the two-pole unit provides reliable thermal-magnetic tripping with a 10kAIC rating.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO260GFI |
| Series | QO |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 6 AWG (Cu), 4 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 943, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Class A Ground Fault Protection (6mA) |
Product FAQs
5 answersIf my load is strictly 240V and does not use a neutral, do I still need to connect the breaker's pigtail?
Yes. The white pigtail wire on the QO260GFI must be landed on the panel's neutral bar. This provides the 120V reference required to power the breaker's internal ground fault detection circuitry, even when the protected load does not utilize a neutral conductor.
What is the difference between the QO260GFI and the QO260GFI3W catalog numbers?
The standard QO260GFI is designed exclusively for 240V loads and does not feature a load neutral terminal. The QO260GFI3W is a 3-wire variant that includes a load neutral lug, making it suitable for 120/240V applications that require a load neutral connection, such as certain spas.
Are QO plug-on breakers compatible with Square D Homeline panelboards?
No. QO and Homeline product lines are engineered with completely different busbar mounting configurations and are not interchangeable. The QO260GFI is specifically designed for QO load centers and NQ panelboards.
What class of ground fault protection does the QO260GFI provide?
This unit provides Class A ground fault protection. It is calibrated to trip when a residual fault current of 6 mA or higher is detected, meeting NEC requirements for personnel protection in wet or damp locations.
Does this QO ground fault breaker provide arc fault protection?
No. This unit functions exclusively as a Ground Fault Circuit Interrupter (GFCI). It does not provide Combination Arc Fault (CAFI) protection. If your circuit requires both arc fault and ground fault mitigation, a Dual Function (DF) breaker must be installed.
