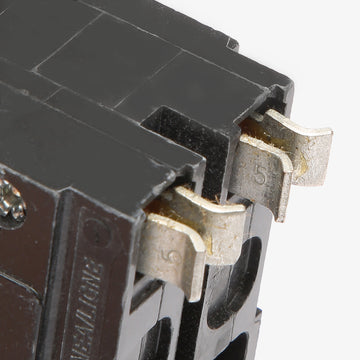

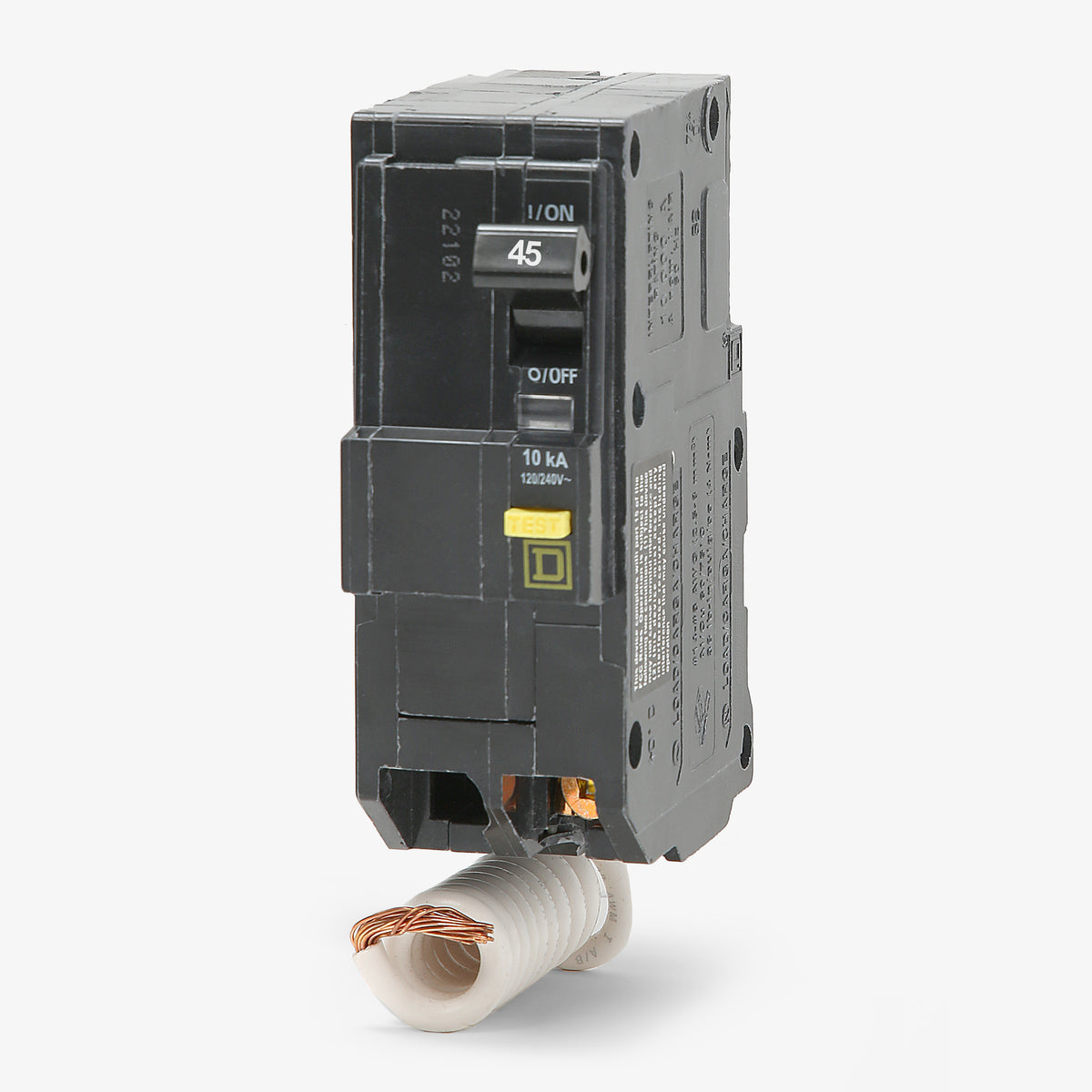

Square D QO245GFI GFCI Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
Square D
QO245GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO245GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO245GFI - 45A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
40A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
Description
Rated for 45 amps, this two-pole GFCI breaker provides Class A 6mA protection for specialized circuits. It ensures safety in areas where water and electricity mix, adhering to NEC standards. Designed for seamless compatibility, it snaps into Square D QO load centers and NQ panelboards. The plug-on design includes a pigtail neutral wire. With a 10 kAIC rating at 120/240VAC, it offers robust thermal-magnetic defense and a Visi-Trip flag for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO245GFI |
| Series | QO |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 12-4 AWG (Al), 14-6 AWG (Cu) |
| Max Wire | 4 AWG (Al), 6 AWG (Cu) |
| Min Wire | 12 AWG (Al), 14 AWG (Cu) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Trip-Free Mechanism, Quick-Make/Quick-Break, RoHS Compliant, Mercury Free |
Product FAQs
7 answersWhat panels are compatible with the QO245GFI circuit breaker?
This breaker is designed specifically for use in Square D QO Load Centers and NQ Panelboards. It is not compatible with Homeline load centers or panels from other manufacturers.
Can I install this QO breaker in a Square D Homeline panel?
No. Square D QO and Homeline series breakers utilize different mounting designs and are strictly non-interchangeable.

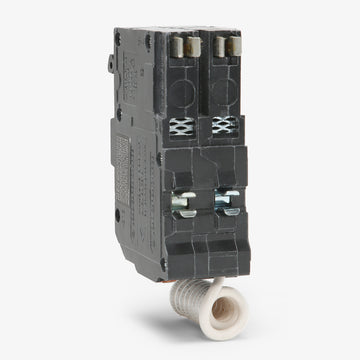

How is the neutral connected on the QO245GFI?
This model features a pigtail neutral connection. The attached white coiled wire must be terminated directly to the neutral bus bar in the panel to power the internal ground fault circuitry.
Can the QO245GFI be used for 240V loads that do not have a neutral wire?
Yes. For straight 240V applications without a load neutral, you can leave the load neutral lug on the breaker empty. However, the breaker's pigtail neutral must still be connected to the panel neutral bus to power the internal GFCI electronics.
What level of ground fault protection does this breaker provide?
It provides Class A ground fault protection. This is designed for personnel safety and will trip the breaker if a ground fault of 4 to 6 milliamps is detected.
Does this breaker provide combination arc-fault (AFCI) protection?
No. The QO245GFI is strictly a Ground Fault Circuit Interrupter (GFCI) and does not include arc-fault protection.

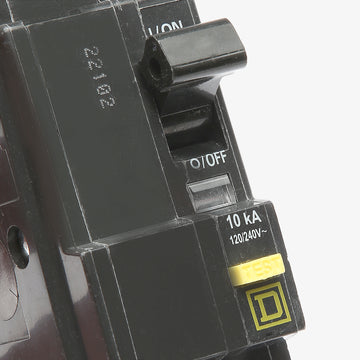

Does this breaker feature a tripped status indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips due to an overload, short circuit, or ground fault, a red indicator window appears to help easily identify the tripped breaker in the panel.
