Siemens Q3015 30/15A Tandem Miniature Circuit Breaker
- 30/15A
- 1 Pole
- Plug-On
Siemens
Q3015
30/15A Tandem Miniature Circuit Breaker
Brand
Siemens
SKU
Q3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens Q3015 - 30/15A Tandem Miniature Circuit Breaker
New
Quantity
Quantity
Siemens Q3015 - 30/15A Tandem Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q3015 |
| Series | QT |
| Amperage | 30/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ Load Centers, Ultimate Load Centers, PL Series Load Centers, ES Series Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Space Saver, HACR Rated |
Sold out
Quantity
Siemens Q3015 - 30/15A Tandem Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q3015-R |
| Series | QT |
| Amperage | 30/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ Load Centers, Ultimate Load Centers, PL Series Load Centers, ES Series Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Space Saver, HACR Rated |
Similar Items
15/20A Tandem Miniature Circuit Breaker
15/15A Tandem Miniature Circuit Breaker
Description

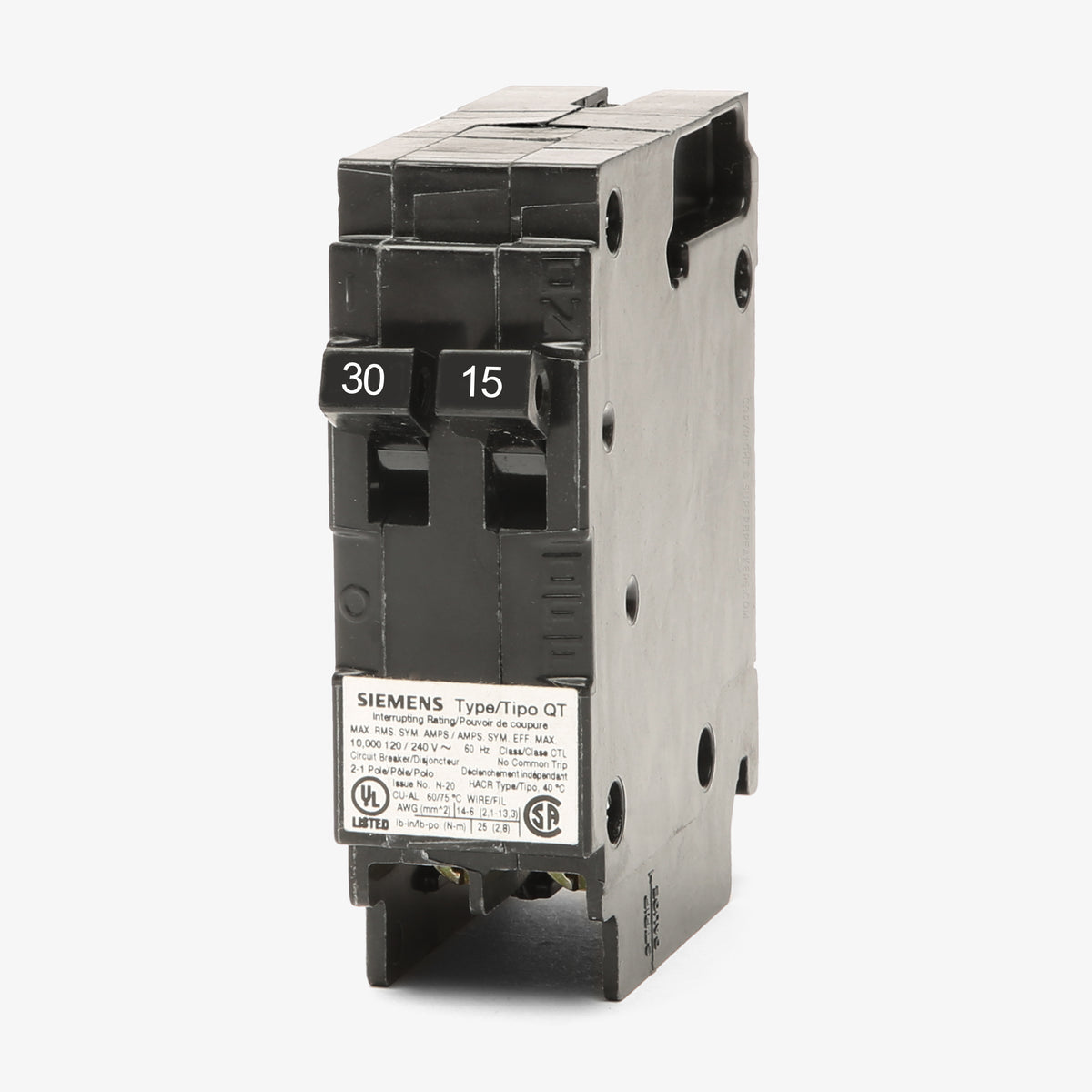

Maximizing available enclosure space, the Siemens Q3015 delivers independent 30A and 15A circuits from a single one-inch pole. This QT series tandem provides a cost-effective way to add branch circuits without upgrading the panelboard. It installs easily into compatible Siemens EQ, PL, ES, and Ultimate load centers via a plug-on connection, and substitutes for the older MP3015. Delivering a 10 kAIC rating at 120/240V, the unit features thermal-magnetic protection and is HACR certified.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q3015 |
| Series | QT |
| Amperage | 30/15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, EQ Load Centers, Ultimate Load Centers, PL Series Load Centers, ES Series Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment, Handle Tie |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Space Saver, HACR Rated |
Product FAQs
6 answersWhat type of load center is required to install the Siemens Q3015?
The Q3015 is a CTL (Circuit Total Limiting) tandem breaker. It must be installed in a Siemens, EQ, Ultimate, PL, or ES series load center that is specifically designed to accept CTL tandem breakers. These panels typically have notched bus bars to accept the breaker's rejection clip.
Can the Siemens Q3015 replace older Murray tandem breakers?
Yes. Siemens acquired Murray and phased out the Murray brand. The Siemens Q3015 is the official, UL-listed replacement for the discontinued Murray MP3015 tandem breaker.
Is the Siemens Q3015 breaker HACR rated?
Yes, this QT series tandem breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific rating.
How much panel space does the Q3015 require?
This is a duplex or tandem breaker, meaning it provides two independent circuits (one 30A and one 15A) while only occupying a single 1-inch space on the panel bus bar.
Can I use this breaker in a non-CTL panel?
No. The standard Q3015 features a rejection clip designed for CTL panels. If you have an older non-CTL panel that allows tandems without notched bus bars, you would need the non-CTL version of this breaker, typically designated with an NC suffix.
Does the Q3015 provide AFCI or GFCI protection?
No. The Q3015 is a standard thermal-magnetic breaker. It does not provide arc-fault (AFCI) or ground-fault (GFCI) protection.
