Disyuntor bipolar Square D BDA24020Y1

Brand Square D
SKU BDA24020Y1
Free Shipping Over $99

Disyuntor bipolar Square D BDA24020Y1

Brand Square D
SKU BDA24020Y1
Select Estado del artículo
Earn 812 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Disyuntor bipolar Square D BDA24020Y1

Nuevo

$812.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

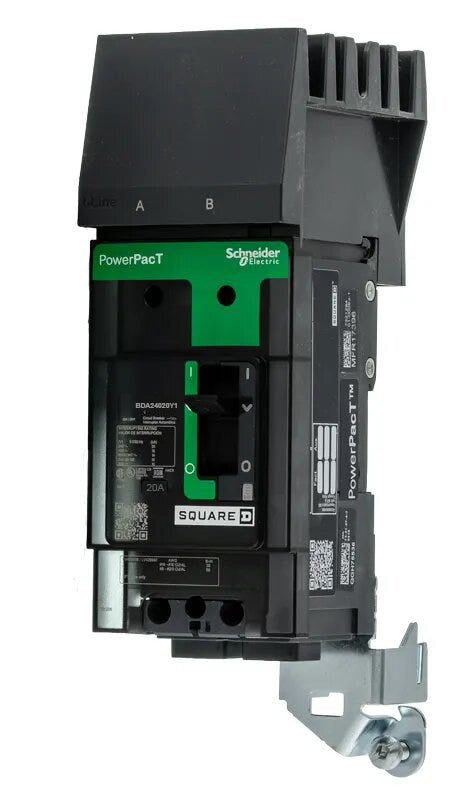

Disyuntor bipolar Square D BDA24020Y1

El BDA24020Y1 de Square D es un disyuntor termomagnético de caja moldeada de 2 polos con una corriente nominal de 20 amperios y una tensión nominal de 480 Y/277 V CA. Tiene una capacidad de interrupción de 18 kAIC a 480 V CA, 25 kAIC a 277/408 V CA. El BDA24020Y1 tiene un tipo de montaje I-Line e incluye funciones de disparo instantáneo y de tiempo prolongado.

Specifications

Brand Cuadrado D
Series Powerpact B
Amperage 20
Voltage 480Y/277VAC
Poles 2
Phase 1
Mounting Type Línea I
Approval UL, CSA, NEMA, CE, IEC, NEMA, CCC, EAC
Interrupting Rating 18 kAIC a 480 V CA, 25 kAIC a 277/408 V CA
Frame Type BDA
Connection Type Complemento estilo I-Line
Protection Termomagnético
Functions Viaje instantáneo y de larga duración
Terminal Connection Orejeta del lado de carga
Wire Gauge 14 a 2/0 AWG, aluminio/cobre
Standards RoHS, REACh, HACR
Temperature Rating -25 a 70 °C
Circuit Breaker Type Estándar
Actuator Type Palanca
Color Gris
Mpn BDA24020Y1
Gtin 3606481151766
